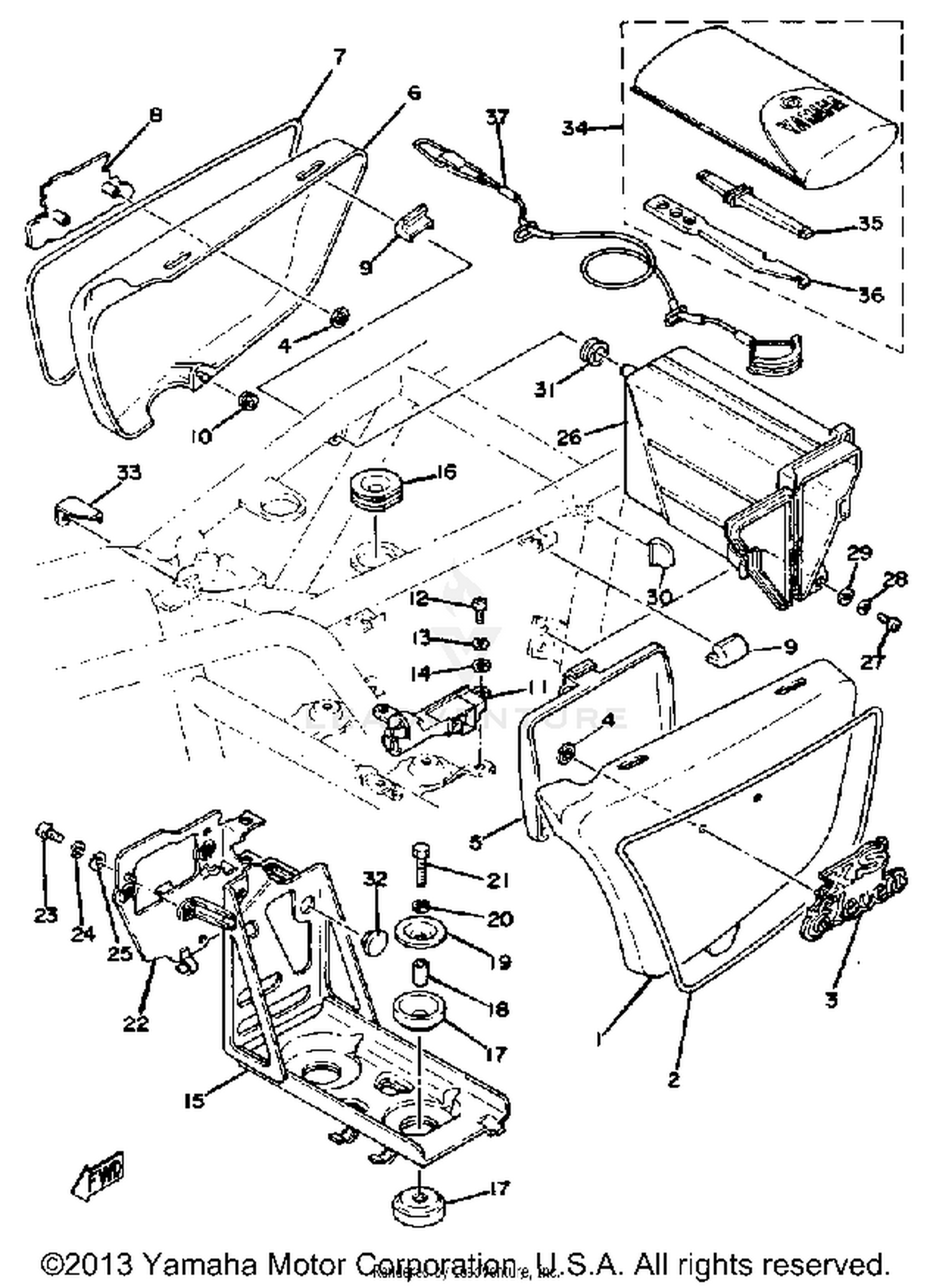

Side Cover-battery Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
2H7-21711-00-H6
|
$98.71 | ||
|
Unavailable |
|||
|
#2
GRAPHIC 4
2H7-21784-00-00
|
$10.80 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
2H7-21781-10-00
|
$26.99 | ||
|
Unavailable |
|||
|
#4
NUT, SPRING
90183-04005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
LID
2H7-28185-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#6
COVER, SIDE 2
2H7-21721-00-H6
|
$85.44 | ||
|
Unavailable |
|||
|
#7
GRAPHIC 5
2H7-21785-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#8
EMBLEM 2
2H7-21782-10-00
|
$26.99 | ||
|
Unavailable |
|||
|
#9
DAMPER
2H7-21717-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#10
GROMMET
90480-15058-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SIDE CVR LOCK ASSEMBLY
4H3-21708-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98506-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOX
2H7-21170-00-33
|
$34.82 | ||
|
Unavailable |
|||
|
#16
DAMPER
2H7-21747-00-00
|
$3.40 | ||
|
Unavailable |
|||
|
#17
DAMPER
2H7-21746-00-00
|
$3.35 | ||
|
Unavailable |
|||
|
#18
COLLAR
90387-06387-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPEC''L SHAP
90209-07170-00
|
$2.60 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE 1
2H7-21543-00-91
|
$14.99 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOX, TOOL
2H7-21171-01-00
|
$14.84 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#28
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET
90480-16185-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
GROMMET
90480-15058-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
GROMMET
90480-17218-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPECIAL 1
2H7-21715-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#34
TOOL KIT
2H7-W2810-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#35
GAUGE, OIL LEVEL
2H7-2815A-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#36
LEVER, WIRE HOOK
2H7-2816A-00-00
|
$13.40 | ||
|
Unavailable |
|||
|
#37
WIRE, HOOK
2H7-2814A-00-00
|
$32.12 | ||
|
Unavailable |
|||
