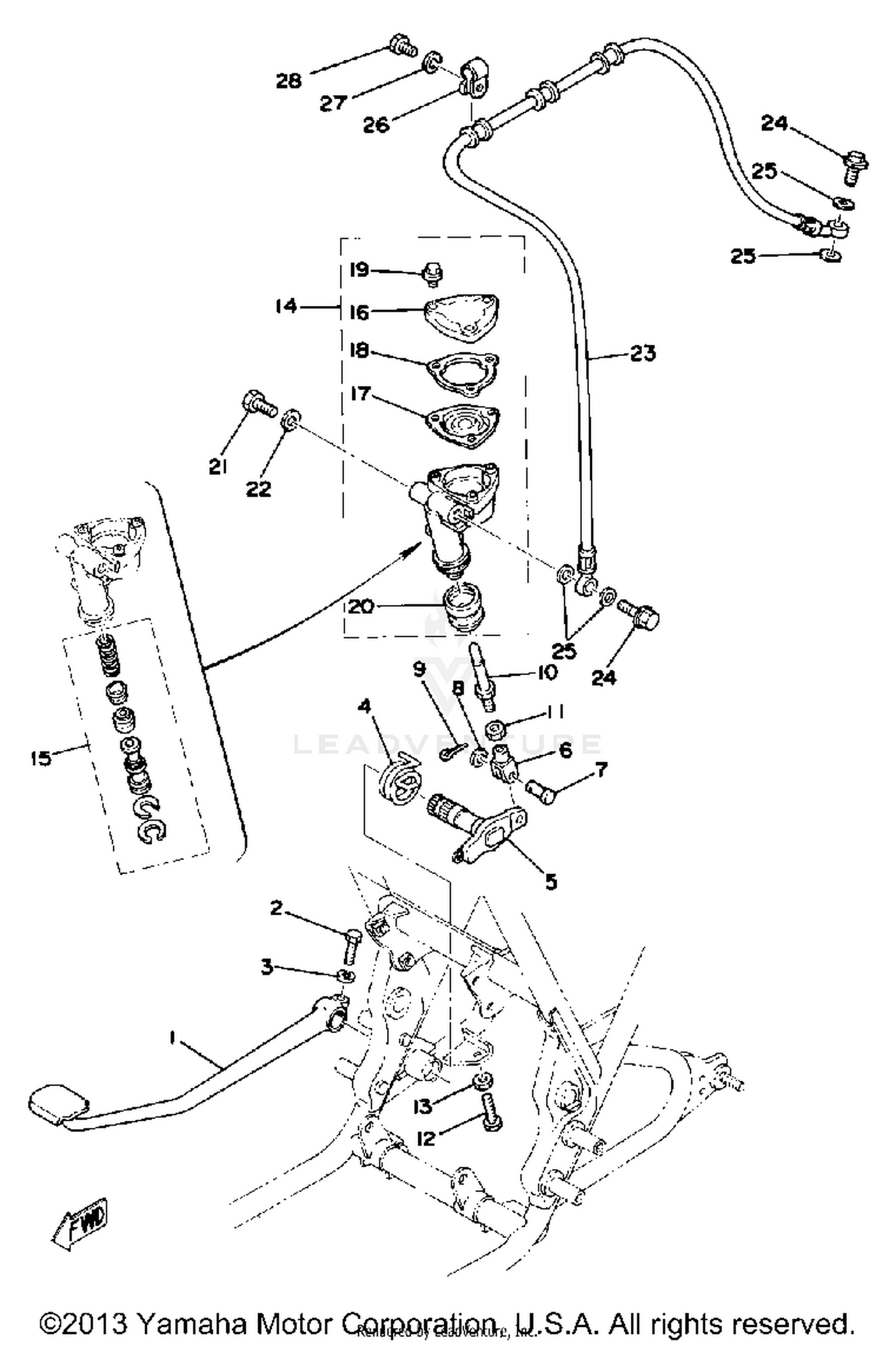

Brake Pedal - Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
1L9-27211-00-93
|
$62.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-06468-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-40344-00
|
$4.16 | ||
|
Unavailable |
|||
|
#5
SHAFT, BRAKE PEDAL
1U4-27212-00-00
|
$13.14 | ||
|
Unavailable |
|||
|
#6
JOINT
1J3-27222-01-00
Superseded by 47X-27222-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, BRAKE
1J3-27231-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#11
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
MSTR CYLINDER ASSEMBLY (1U4-258
1U4-25850-51-00
|
$120.99 | ||
|
Unavailable |
|||
|
#15
CYLINDER KIT, MASTER
1U4-W0042-50-00
|
$81.99 | ||
|
Unavailable |
|||
|
#16
CAP, RESERVOIR
1J3-25852-52-00
|
$20.99 | ||
|
Unavailable |
|||
|
#17
DIAPHRAGM RESERVOR
1J3-25854-51-00
|
$20.99 | ||
|
Unavailable |
|||
|
#18
BUSH, DIAPHRAGM
1J3-25855-51-00
|
$6.68 | ||
|
Unavailable |
|||
|
#19
SCREW, HEXAGON
90153-05014-00
|
$2.17 | ||
|
Unavailable |
|||
|
#20
BOOT, MASTER CYLINDER
1J3-25862-50-00
|
$7.94 | ||
|
Unavailable |
|||
|
#21
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, BRAKE 1
1U4-25872-50-00
|
$38.38 | ||
|
Unavailable |
|||
|
#24
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90461-08031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
