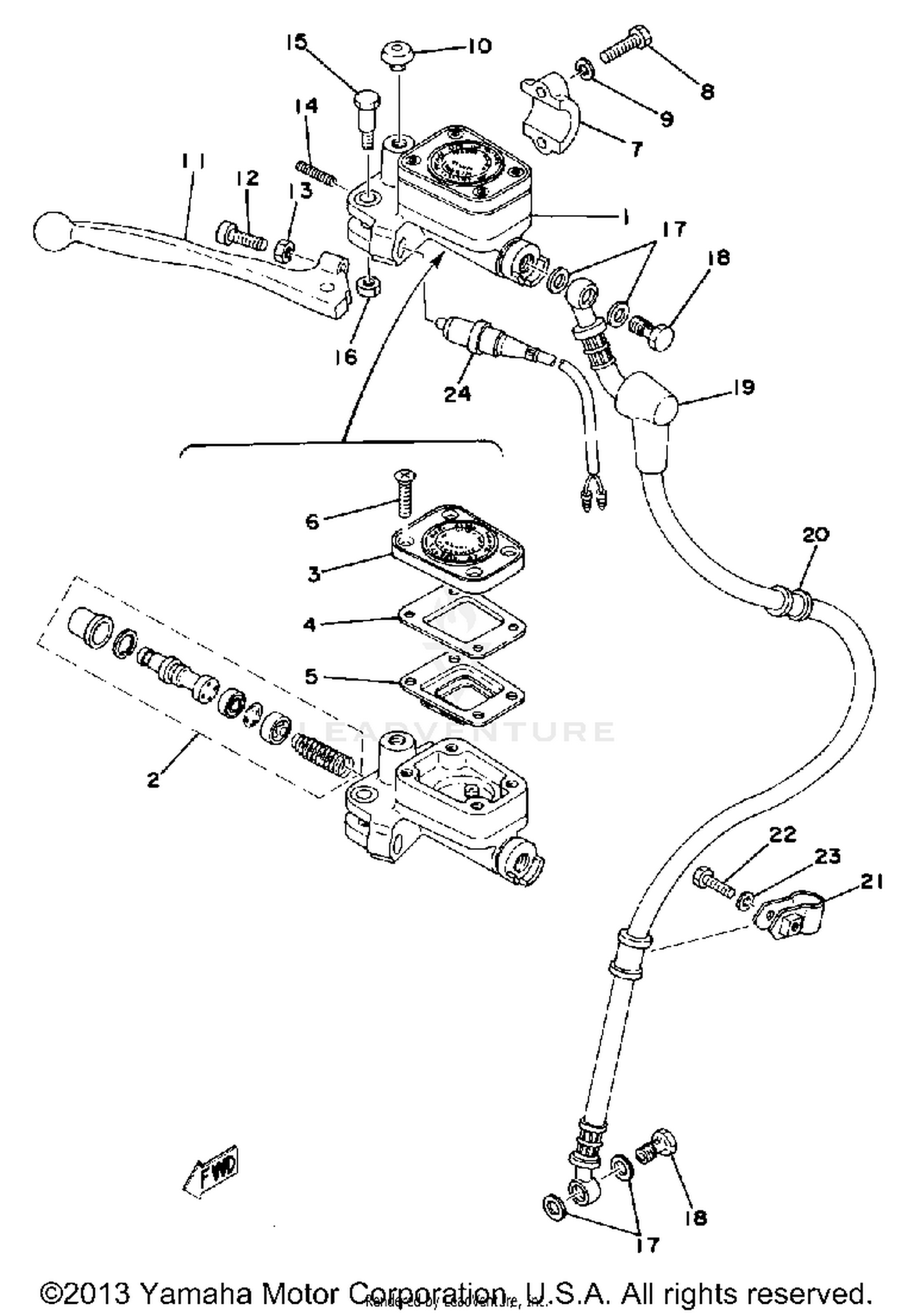

Master Cylinder - Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MSTR CYLINDER ASSEMBLY
1J3-25850-02-00
|
$212.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
535-W0041-60-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RESERVOIR
1J3-25852-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#4
BUSH, DIAPHRAGM
1J3-25855-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#5
DIAPHRAGM RESERVOR
1J3-25854-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, FLAT HEAD
90151-05008-00
Superseded by 98707-05014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER (341-2
1J3-25867-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER R
341-83922-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#12
SCREW
90149-06131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COMPRESSION
90501-10312-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-06465-00
Superseded by 90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT, MASTER CYLINDER
360-25862-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, BRAKE 1
2A2-25872-00-00
|
$46.48 | ||
|
Unavailable |
|||
|
#21
HOLDER, BRKE HOSE 2
1L9-25876-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#22
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Unavailable |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#24
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
