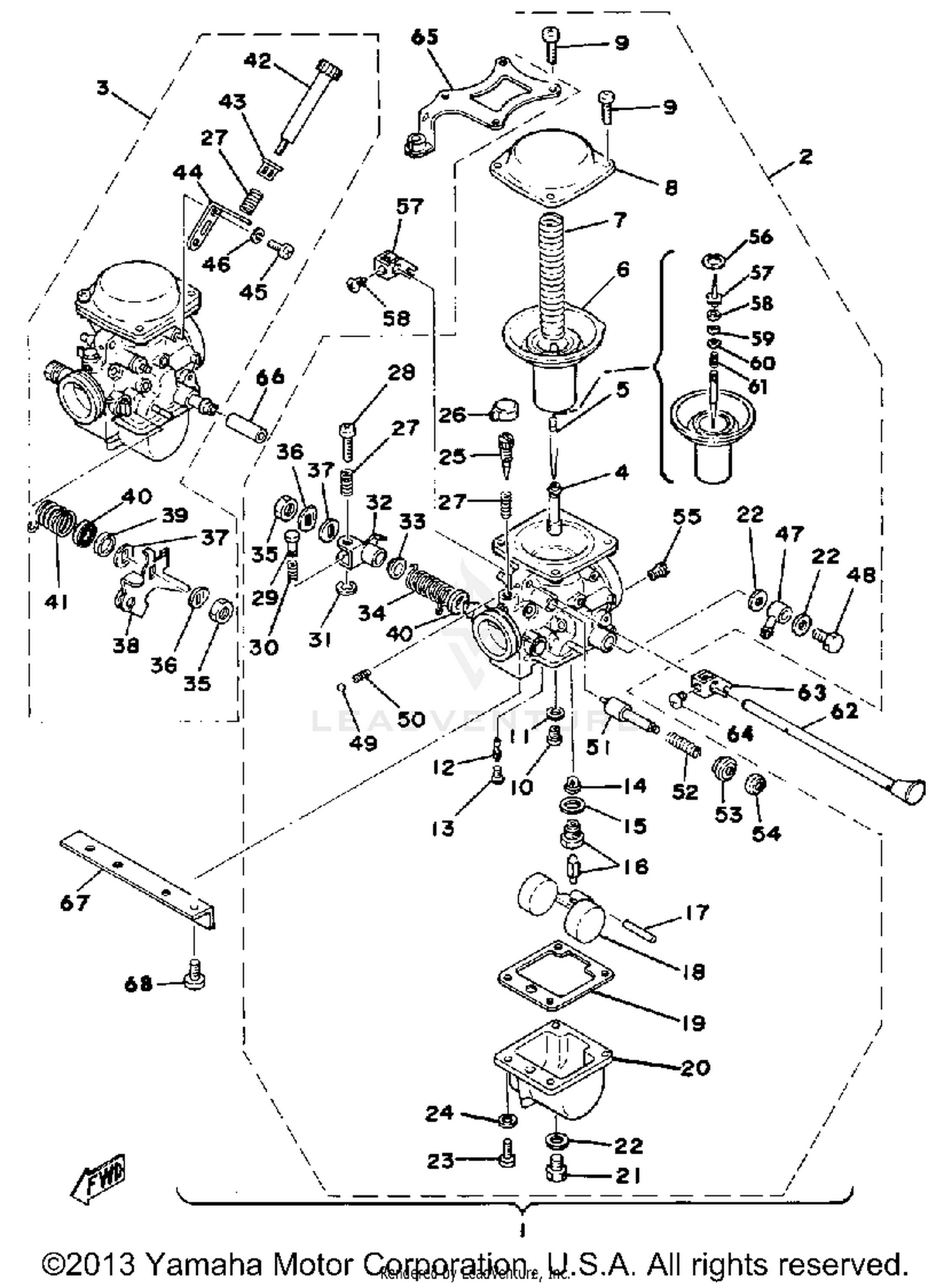

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
2A2-14900-60-00
|
|||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 1
2A2-14901-60-00
|
$169.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 2
2A2-14902-60-00
|
$169.99 | ||
|
Unavailable |
|||
|
#4
NOZZLE, MAIN
2A2-14941-04-00
|
$19.50 | ||
|
Unavailable |
|||
|
#5
NEEDLE
2A2-14116-01-00
|
$11.18 | ||
|
Unavailable |
|||
|
#6
DIAPHRAGM ASSEMBLY
2F3-14940-00-00
|
$298.99 | ||
|
Unavailable |
|||
|
#7
SPRING, DIAPHRAGM
2A2-14933-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#8
COVER, DIAPHRAGM
2A2-14958-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
JET, MAIN 142.5
620-1423A-79-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
JET, PILOT ( 42.5)
4G0-14142-42-A0
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
2F3-14991-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#14
NET, FILTER
1J7-14994-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NEEDLE VALVE ASSEMBLY
1J7-14190-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLOAT
2A2-14985-01-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, FLOAT CHMBR
2A2-14984-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BODY, FLOAT CHAMBER
2A2-14981-06-00
|
$29.38 | ||
|
Unavailable |
|||
|
#21
SCREW
1A8-14991-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#22
WASHER
1L9-14952-00-00
Superseded by 256-14956-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PILOT
2A2-14923-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP
8A7-14969-00-00
|
$7.00 | ||
|
Unavailable |
|||
|
#27
SPRING, THRTL STOP
256-14934-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#28
SCREW, THROTTLE
256-14922-01-00
|
$13.99 | ||
|
Unavailable |
|||
|
#29
ROD
584-14992-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, THRTL STOP
584-14934-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#31
CLIP
256-14937-00-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
LEVER, THROTTLE 2
2A2-14964-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#33
RING
1L9-14918-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
SPRING, THRTL LEVER
2A2-14931-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#35
NUT
95303-12600-00
Superseded by 95304-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
256-14953-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#37
VALVE, THROTTLE
306-14970-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#38
LEVER, THROTTLE 4
2A2-14963-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#39
RING
2A2-14918-00-00
|
$1.24 | ||
|
Unavailable |
|||
|
#40
SEAL
2A2-14997-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING, THRTL 2
2A2-14932-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#42
SCREW, THROTTLE
2A2-14922-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#43
BUSH
1J7-14998-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#44
BRACKET
2A2-14995-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#45
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE, STARTER CON
1L9-14988-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#48
BOLT, BANJO
1L9-14166-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#49
BALL
93501-08001-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPRING
583-14589-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
PLUNGER, STARTER
2A2-14171-00-00
|
$12.52 | ||
|
Unavailable |
|||
|
#52
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#53
CAP, PLUNGER
2A2-14174-00-00
|
$11.18 | ||
|
Unavailable |
|||
|
#54
COVER, PLUNGER CAP
2A2-14173-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#55
PILOT JET, AIR #170
2A2-14172-34-00
|
$8.88 | ||
|
Unavailable |
|||
|
#56
CLIP
2F0-14919-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#57
PLATE, NEEDLE FTNG
2F3-14946-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#58
RING
2F0-14918-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#59
CLIP
256-14919-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
WASHER
2F3-14952-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#61
SPRING
2F0-14589-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#62
SHAFT, STARTER LVR
2A2-14977-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#63
LEVER, STARTER
2A2-14905-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#64
SCREW
2F3-14991-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#65
BRACKET, THROTTLE 1
2A2-14926-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#66
HOSE
1L9-14987-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#67
PLATE
1L9-14146-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#68
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
