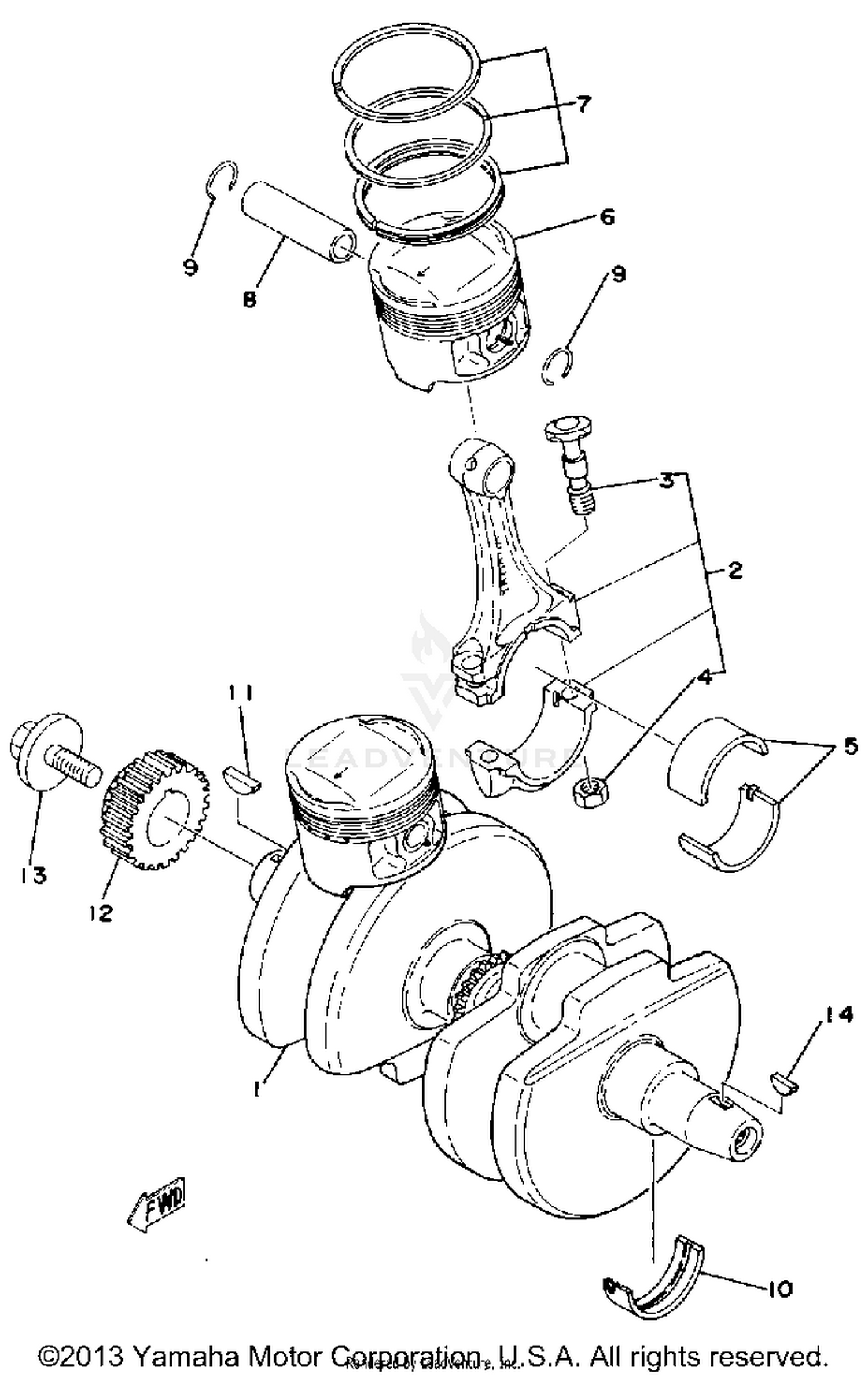

Crank - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
2A2-11411-00-00
|
$309.99 | ||
|
Unavailable |
|||
|
#2
CONNECTING ROD ASSEMBLY
1L9-Y1165-00-00
|
$142.99 | ||
|
Unavailable |
|||
|
#3
BOLT, CON ROD
371-11654-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#4
NUT, HEXAGON (371-11655-00)
90170-08129-00
|
$3.60 | ||
|
Unavailable |
|||
|
#5
PLANE BRNG, CON RODCONNECTING R
36Y-11656-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BRNG, CON RODCONNECTING R
36Y-11656-10-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BRNG, CON RODCONNECTING R
36Y-11656-30-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BRNG, CON RODCONNECTING R
36Y-11656-20-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON 1 O/S 0.25
2L0-11635-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75
2A2-11637-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00
2L0-11638-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
2L0-11636-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#7
PISTON RINGSET STD
2A2-11610-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RINGSET 1ST
2A2-11610-10-00
|
$74.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD
2A2-11610-30-00
|
$40.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND
2A2-11610-20-00
|
$74.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH
2A2-11610-40-00
|
$34.34 | ||
|
Unavailable |
|||
|
#8
PIN, PISTON
29U-11633-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93450-17044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLANE BRNG, CRSF 1
12R-11416-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#
PLANE BRNG, CRSF 1
12R-11416-10-00
|
$29.99 | ||
|
Unavailable |
|||
|
#
PLANE BRNG, CRSF 1
12R-11416-20-00
|
$29.99 | ||
|
Unavailable |
|||
|
#
PLANE BRNG, CRSF 1
12R-11416-30-00
|
$18.99 | ||
|
Unavailable |
|||
|
#12
GEAR, PRI DRIVE
1L9-16111-00-00
|
$37.80 | ||
|
Unavailable |
|||
|
#13
BOLT, WASHER BASED
90105-10085-00
|
$5.49 | ||
|
Unavailable |
|||
|
#14
KEY, WOODRUFF
90280-04005-00
|
$6.99 | ||
|
Unavailable |
|||
