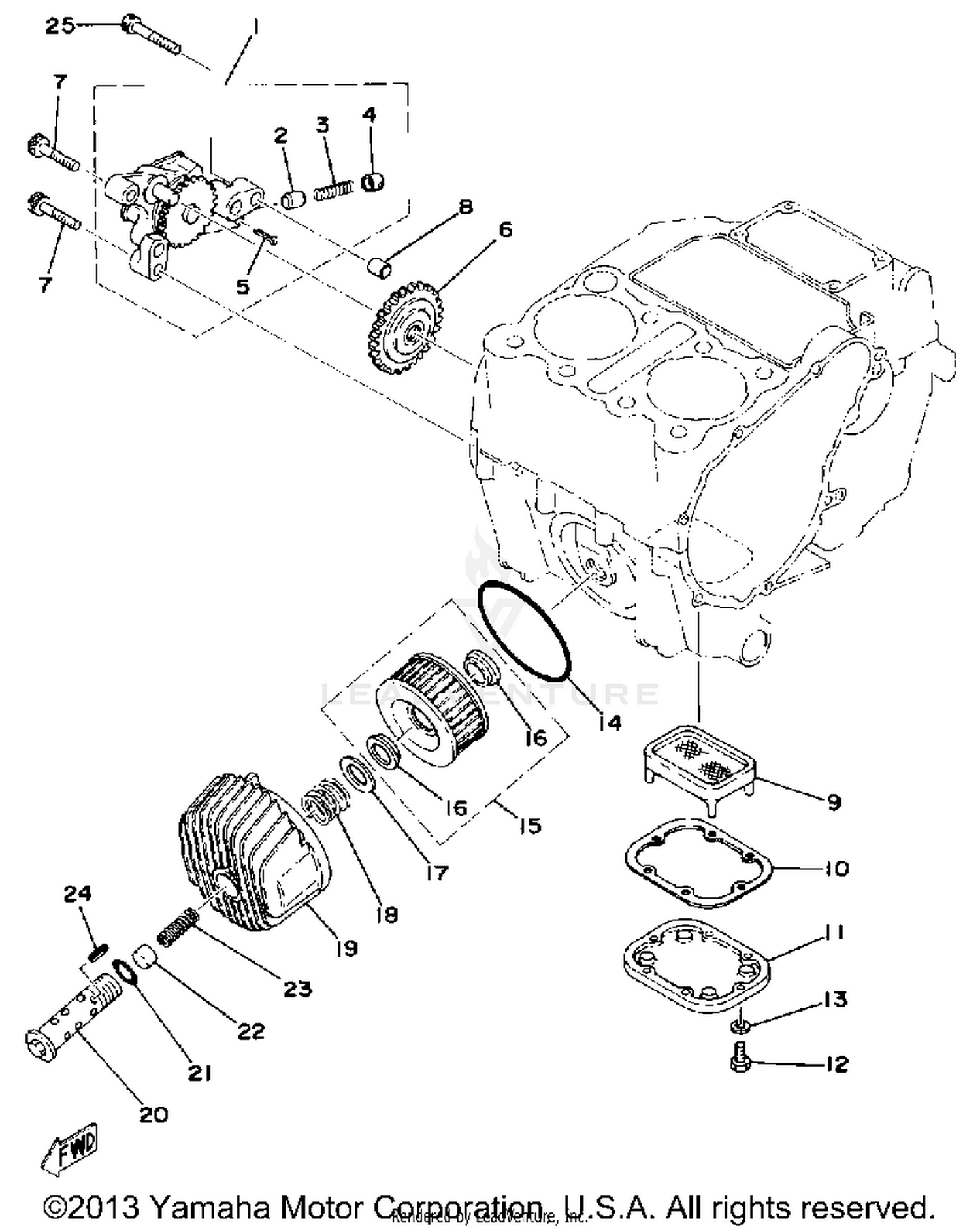

Oil Pump-oil Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSEMBLY
1L9-13300-00-00
|
$186.99 | ||
|
Unavailable |
|||
|
#2
PLUNGER, RELIEF
1L9-13483-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#3
SPRING, RELIEF
1L9-13484-00-00
|
$0.80 | ||
|
Unavailable |
|||
|
#4
RETAINER, RLIEF VLV
1L9-13486-00-00
|
$0.89 | ||
|
Unavailable |
|||
|
#5
PIN. COTTER
91401-25030-00
Superseded by 91490-25030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, OIL PUMP IDLE
1L9-13341-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#7
BOLT, SOCKET HEAD
91318-08035-00
|
$3.80 | ||
|
Unavailable |
|||
|
#8
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
STRAINER, OIL
1L9-13411-00-00
|
$12.28 | ||
|
Unavailable |
|||
|
#10
GASKET,STRNR CVR
1L9-13414-00-00
Superseded by 1L9-13414-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
COVER, STRAINER
1L9-13417-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#12
BOLT, HEXAGON
97313-05016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-87723-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
ELEMENT, OIL CLEANER
1L9-13441-11-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-23193-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-21608-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, COMPRESSION
90501-20422-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, OIL ELEMENT
1L9-13447-01-00
|
$29.99 | ||
|
Unavailable |
|||
|
#20
BY-PASS VALVE ASSEMBLY
1L9-13340-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-16629-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PISTON, BYPSS VALVE
1L9-13345-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#23
SPRING, COMPRESSION
90501-10421-00
|
$2.37 | ||
|
Unavailable |
|||
|
#24
PIN,SPRING
91609-20018-00
Superseded by 91690-20018-00
|
$2.85 | ||
|
Unavailable |
|||
|
#25
BOLT
91316-08045-00
Superseded by 91317-08045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
