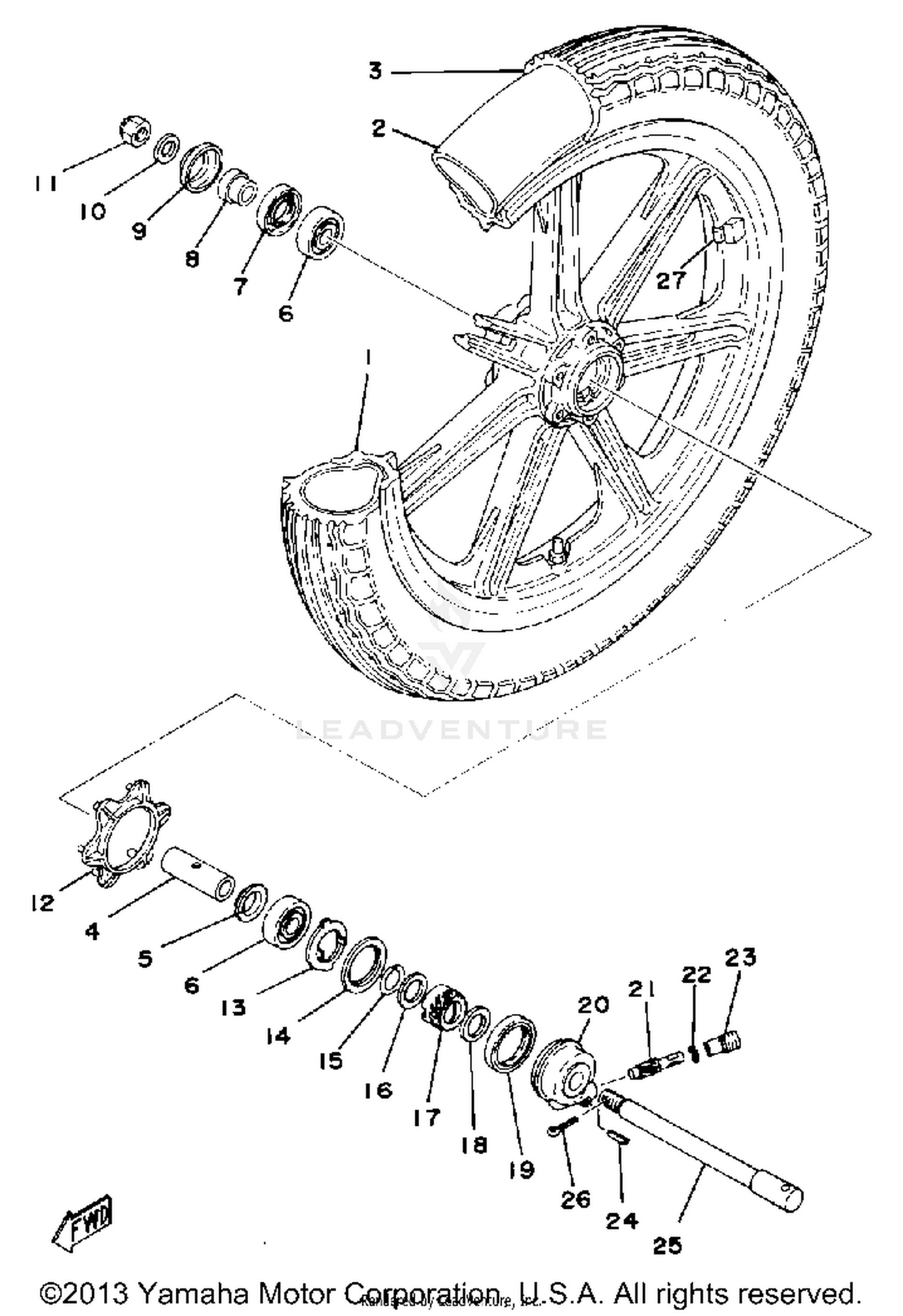

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST FRONT
1U4-25168-00-00
|
$278.99 | ||
|
Unavailable |
|||
|
#2
TUBE (1U4)
94232-18115-00
|
$5.64 | ||
|
Unavailable |
|||
|
#3
TIRE, FRONT (2A2)
94132-18379-00
|
$23.70 | ||
|
Unavailable |
|||
|
#4
SPACER
90560-15161-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93102-22014-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-15550-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HUB DUST
401-25367-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-14200-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, HOUSING
1U4-25847-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#13
CLUTCH, METER
341-25149-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
RETAINER, CLUTCH
341-25846-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, STOP
341-25137-00-00
|
$2.50 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE (341-25147-00)
90201-25286-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, DRIVE
341-25135-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
90201-25490-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93105-45017-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR UNIT ASY
404-25190-00-00
Superseded by 31A-25190-10-00
|
$87.99 | ||
|
Unavailable |
|||
|
#21
GEAR, METER
306-25138-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#22
SHIM, ROD
102-18416-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#23
BUSH
306-25136-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#24
PIN, SPRING
91609-20014-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE, WHEEL
1L9-25181-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#26
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Unavailable |
|||
