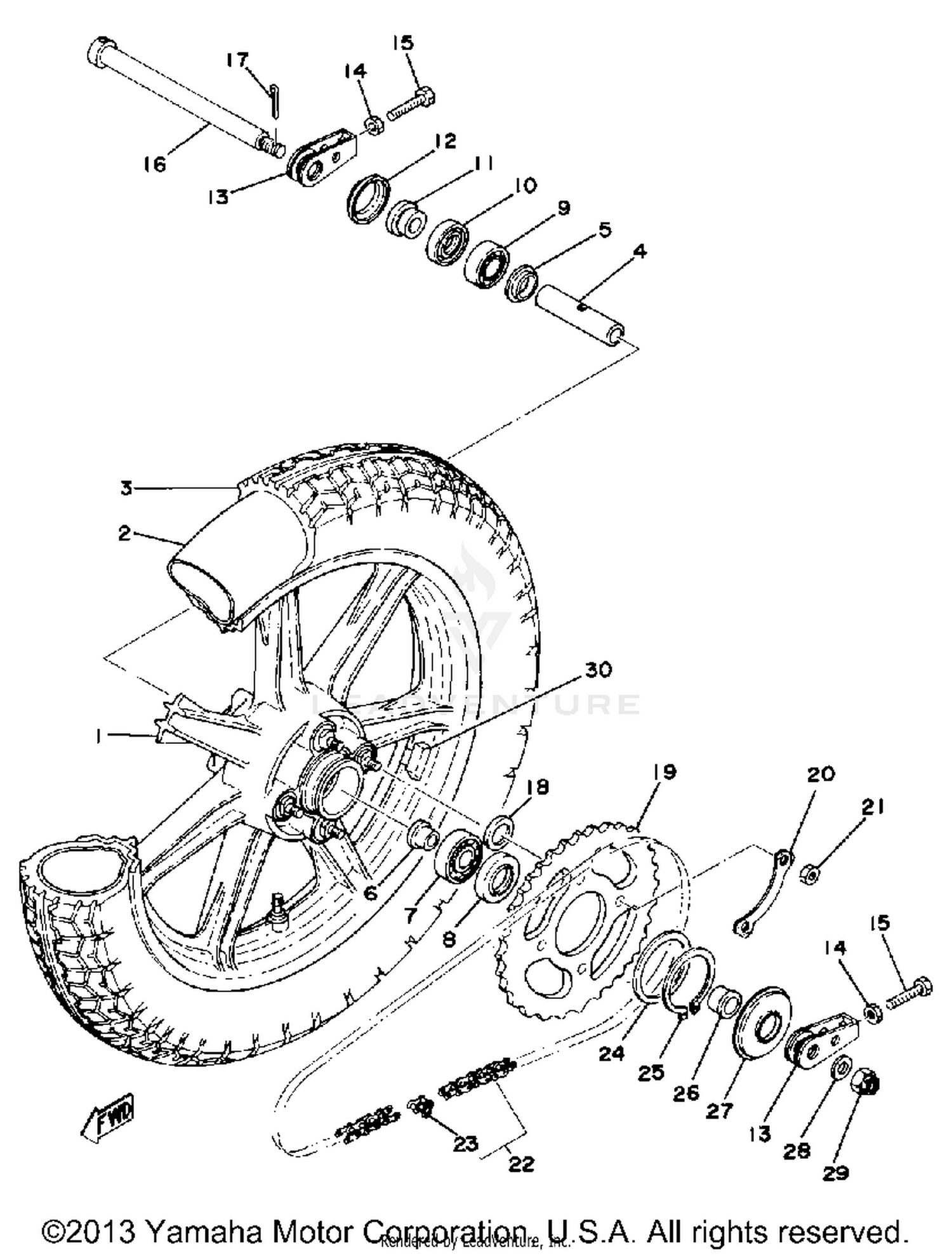

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
1U4-W2533-20-00
|
$487.99 | ||
|
Unavailable |
|||
|
#2
TUBE (1U4)
94232-18115-00
|
$5.64 | ||
|
Unavailable |
|||
|
#3
350X18 BS 21R
94135-18360-00
|
$43.99 | ||
|
Unavailable |
|||
|
#4
SPACER, BEARING
1J3-25317-00-00
|
$16.10 | ||
|
Unavailable |
|||
|
#5
FLANGE, SPACER
146-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, WHEEL
1A1-25377-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#7
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL, SO-TYPE
93104-27026-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-28022-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-17536-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
COVER, HUB DUST
1J3-25118-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#13
PULLER, CHAIN 2
168-25389-00-00
Superseded by 12R-25389-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#14
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, WHEEL
1J3-25381-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#17
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-20565-00
|
$2.95 | ||
|
Unavailable |
|||
|
#19
SPROCKET, DRIVN 37T
1J3-25437-20-00
|
$46.99 | ||
|
Unavailable |
|||
|
#20
WASHER
1J3-25412-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
95301-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DID50HDSS-102L (DID50HDSS 102L)
94580-10102-00
Superseded by 94580-20102-00
|
$157.99 | ||
|
Unavailable |
|||
|
#23
JOINT CHAIN
94685-30011-00
|
$7.78 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-66585-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
CIRCLIP, S-TYPE
93410-65040-00
|
$13.49 | ||
|
Unavailable |
|||
|
#26
COLLAR
90387-17551-00
|
$13.99 | ||
|
Unavailable |
|||
|
#27
COVER, HUB DUST
1L9-25367-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#28
WASHER, PLAIN
92990-14200-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Unavailable |
|||
