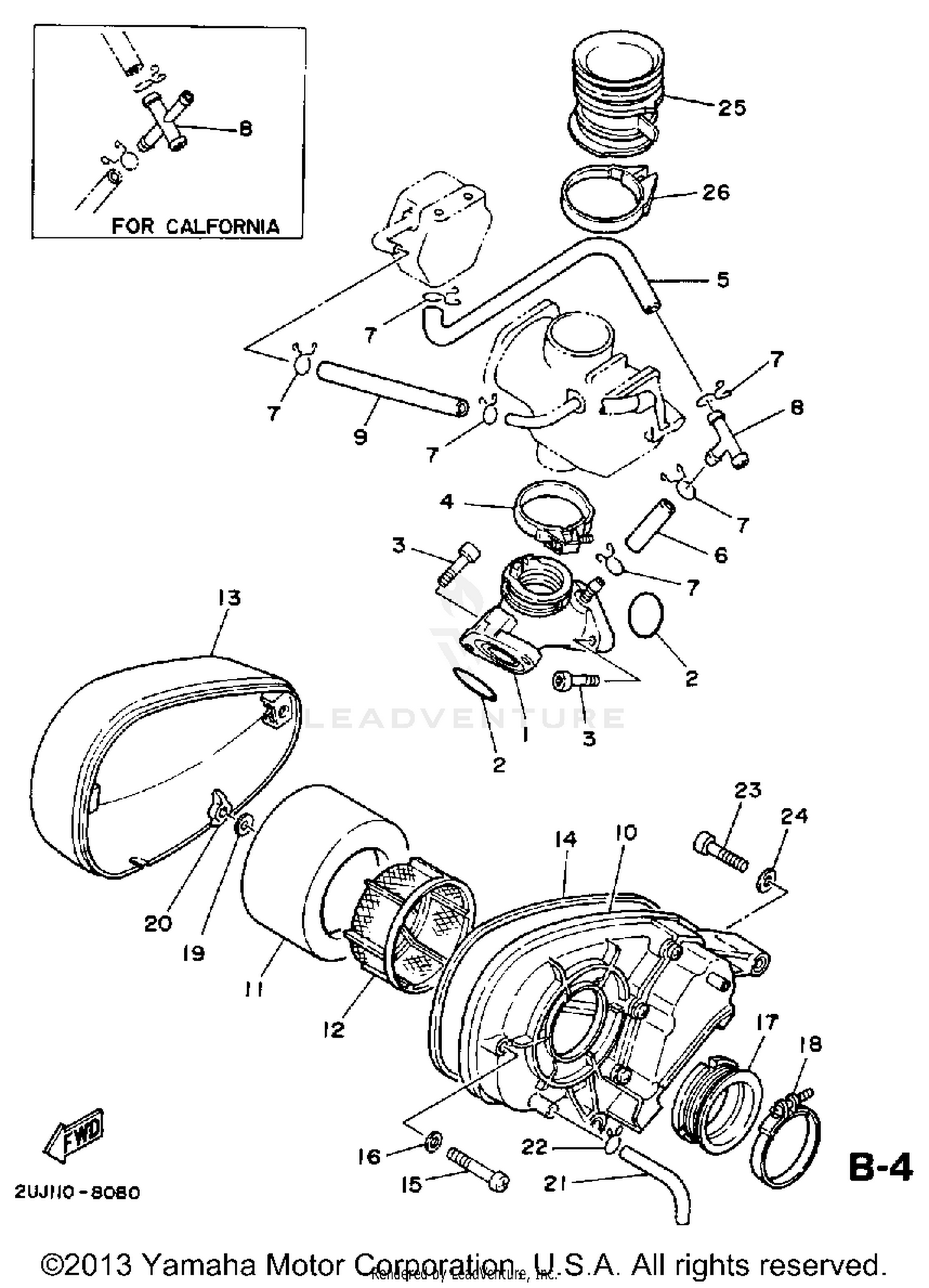

Air Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
2UJ-13586-00-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-30611-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND
1HX-13575-00-00
Superseded by 4TR-13474-02-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, REGULATOR
2UJ-13978-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE (L120)
90445-11763-00
Superseded by 90445-113E8-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, CARBURETOR
3BG-13595-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#
WAY 3
90413-07007-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
90445-117F0-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
AIR CLEANER CASE ASSY
2UJ-14401-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ELEMENT, AIR CLEANER
2UJ-14451-00-00
Superseded by 2UJ-14451-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE
2UJ-14458-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, CLEANER CASE 2
2UJ-14422-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
2UJ-14452-00-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98580-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE, JOINT
2UJ-14485-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, HOSE
90460-54111-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-05036-00
Superseded by 90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, WING
90175-05005-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE
2UJ-14419-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUNNEL, AIR
2UJ-14469-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE CLAMP ASSY
90460-54137-00
Superseded by 90450-54008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
