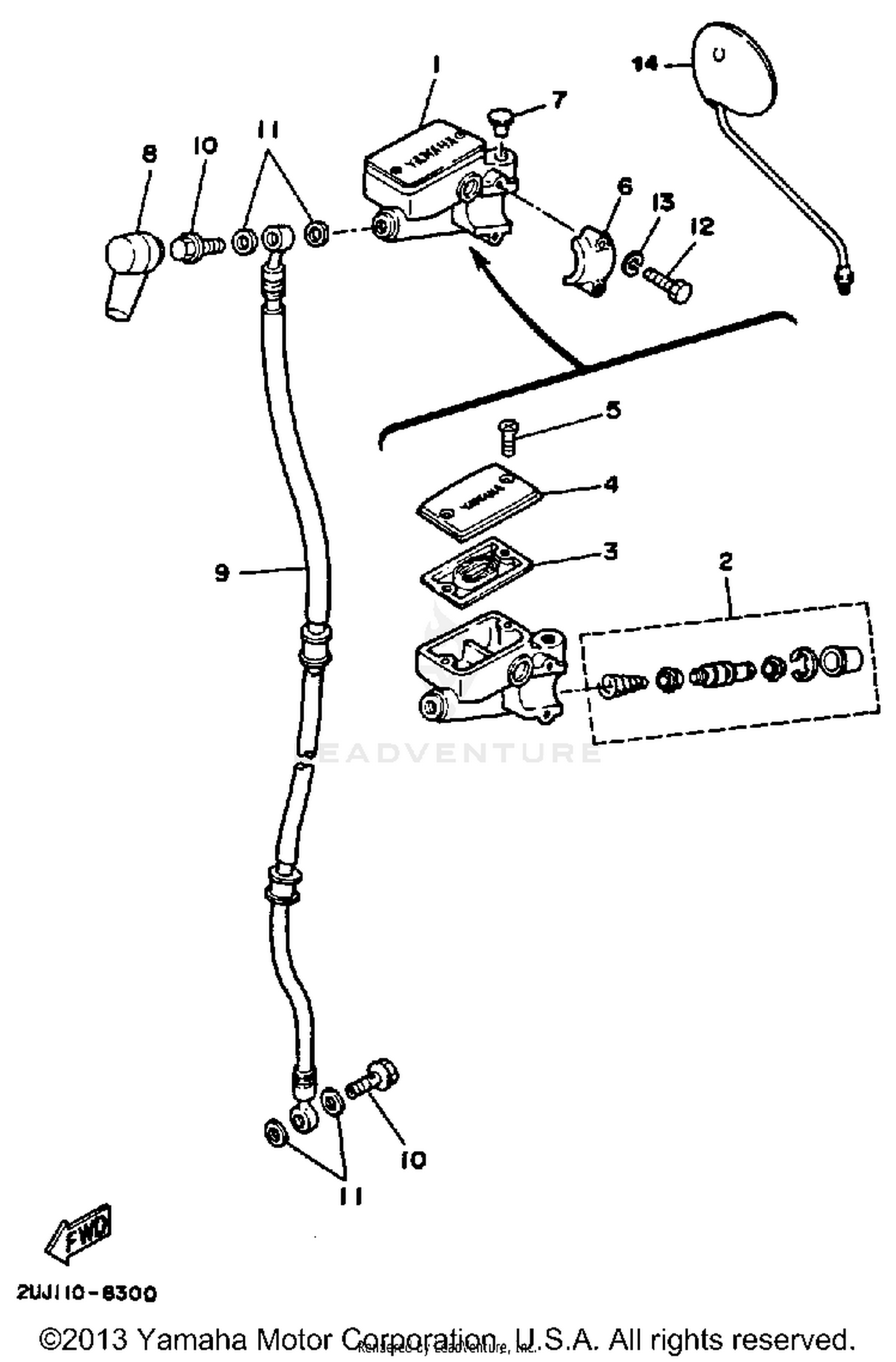

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
2UJ-25870-00-00
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
23L-W0041-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4H7-25852-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
4L0-25867-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, BRAKE 1
2UJ-25872-02-00
Superseded by 99999-02589-00
|
$91.99 | ||
|
Unavailable |
|||
|
#10
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
BACK MIRROR ASSY (R.H)
3Y1-26290-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
