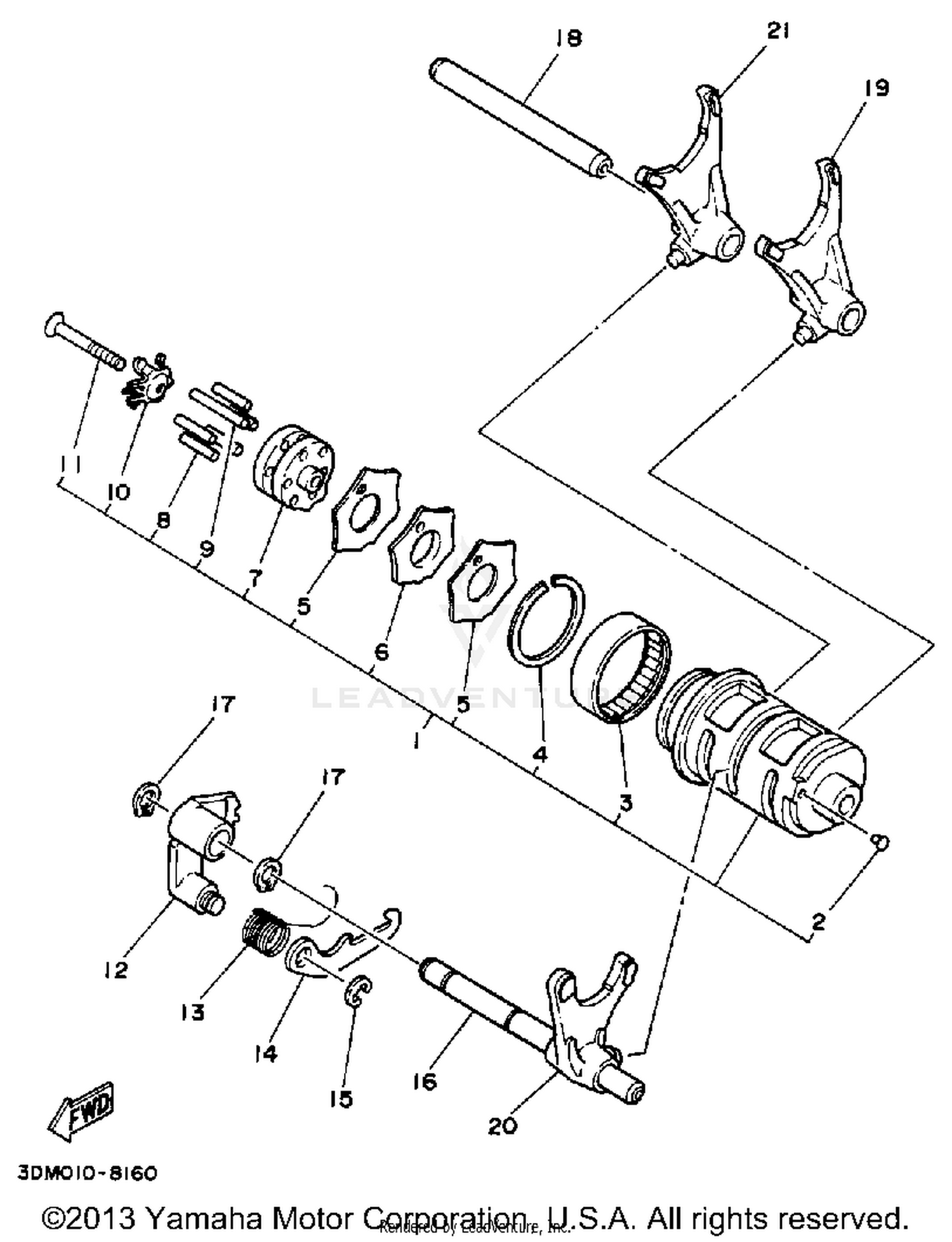

Shift Cam Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSY
3Y1-18540-00-00
Superseded by 4DN-18540-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
POINT, NEUTRAL
136-18542-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93315-23612-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-34025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, PLATE STOPPER
3Y1-18161-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, STOPPER
3Y1-18141-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEGMENT
3Y1-18185-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
93604-18100-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93604-29151-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, SIDE 1
2K9-18561-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, FLAT HEAD
98701-05035-00
Superseded by 98707-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, SHIFT 2
3Y1-18122-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TORSION
90508-12430-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, SHIFT 3
2K7-18151-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
99080-07600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAR, SHIFT FORK GUIDE 1
3Y1-18531-00-00
Superseded by 4DN-18531-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
99009-10400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAR, SHIFT FORK GUIDE 2
3Y1-18535-00-00
Superseded by 4DN-18535-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK, SHIFT 1
3Y1-18511-00-00
Superseded by 4DN-18511-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FORK, SHIFT 2
3Y1-18512-00-00
Superseded by 4DN-18512-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FORK, SHIFT 3
3Y1-18513-00-00
Superseded by 4DN-18513-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
