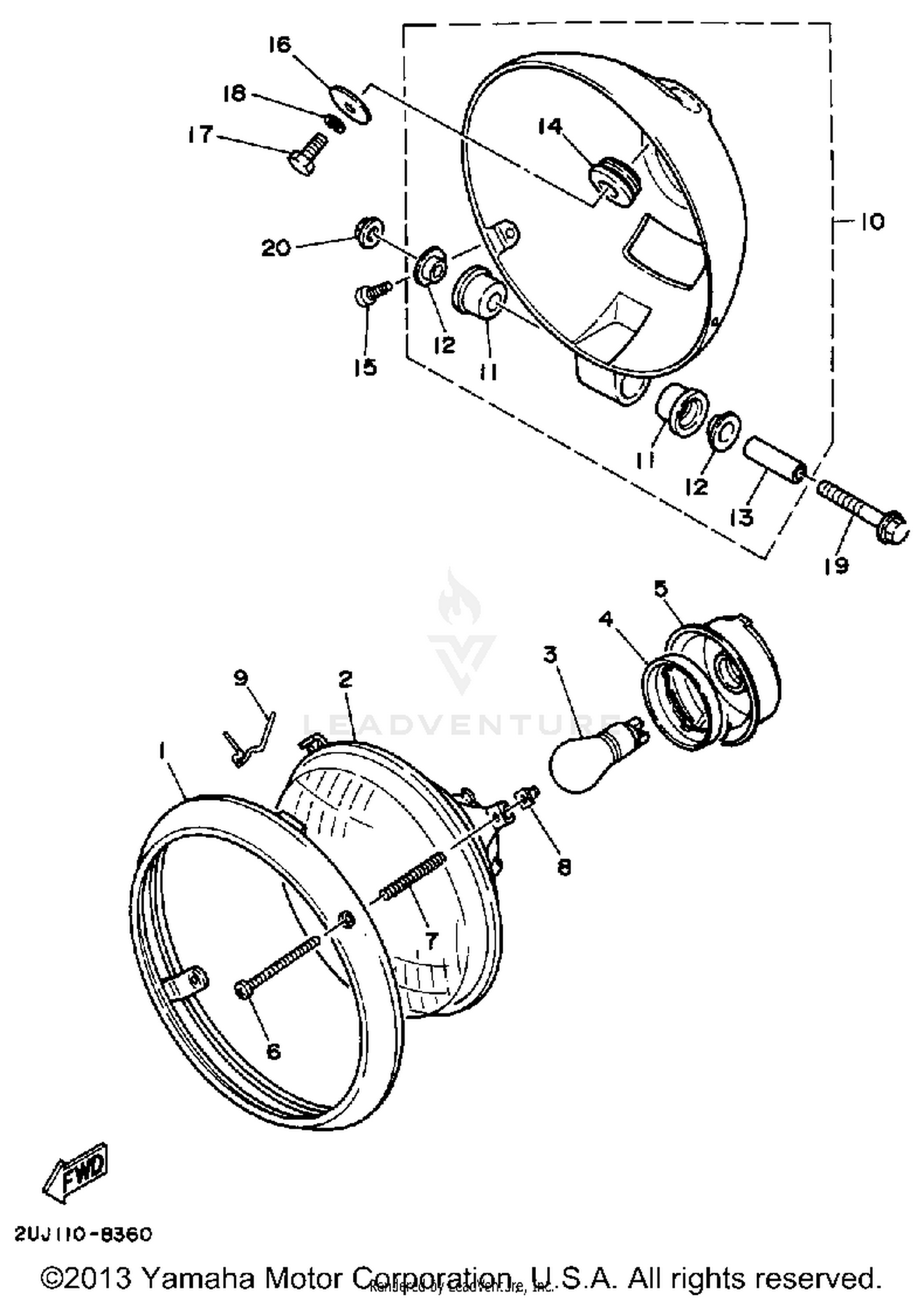

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RIM, HEADLIGHT
42X-84315-01-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS ASSEMBLY
2GV-84321-A0-00
|
$117.99 | ||
|
Unavailable |
|||
|
#3
BULB, HEADLIGHT
11H-84314-00-00
Superseded by 46B-84314-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SETTING PLATE, BULB
2F9-84375-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SOCKET
2F9-84397-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, ADJUSTING
90157-04001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, SCREW
1A0-84332-60-00
Superseded by 447-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SET
42X-84124-60-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY ASSY
42X-84330-01-00
|
$207.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, HEADLIGHT
42X-84345-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, BODY FITTING
1FK-84338-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, BODY FTNG
2UJ-84338-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, HEADLIGHT 1
42X-84366-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
90157-05084-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-06073-00
Superseded by 90201-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95811-06045-00
Superseded by 95817-06045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
