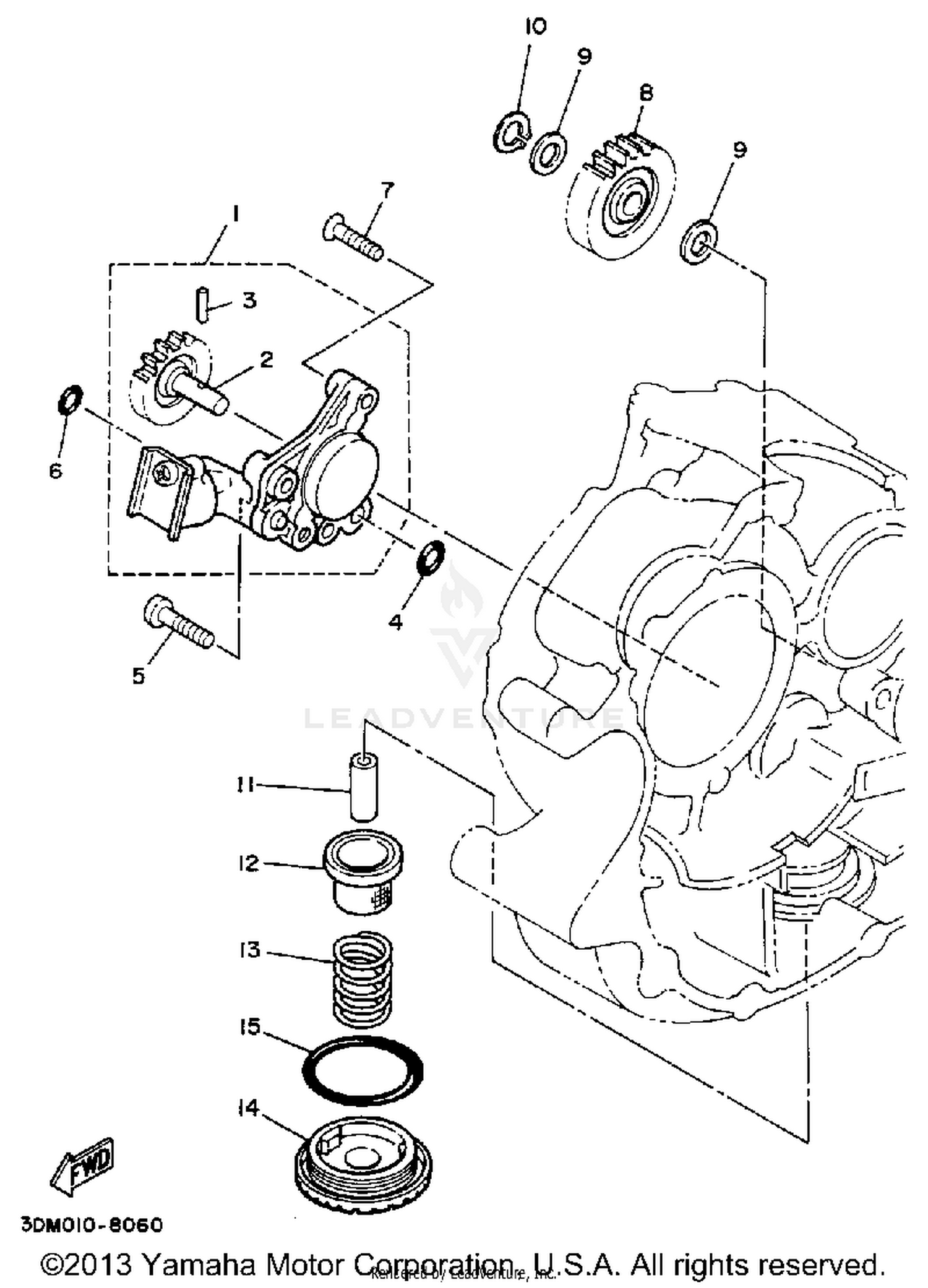

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
2UJ-13300-00-00
Superseded by 2UJ-13300-10-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN 2 (14T)
3Y6-13326-01-00
Superseded by 3Y6-13326-10-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93603-12030-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-06245-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98780-06025-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, OIL PUMP IDLE
2UJ-13341-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10119-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-10400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, OIL 1
2XK-13416-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STRAINER, OIL
51Y-13411-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION
90501-18576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, DRAIN
30X-15351-00-00
Superseded by 4HC-15351-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-35389-00
Superseded by 93210-347A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
