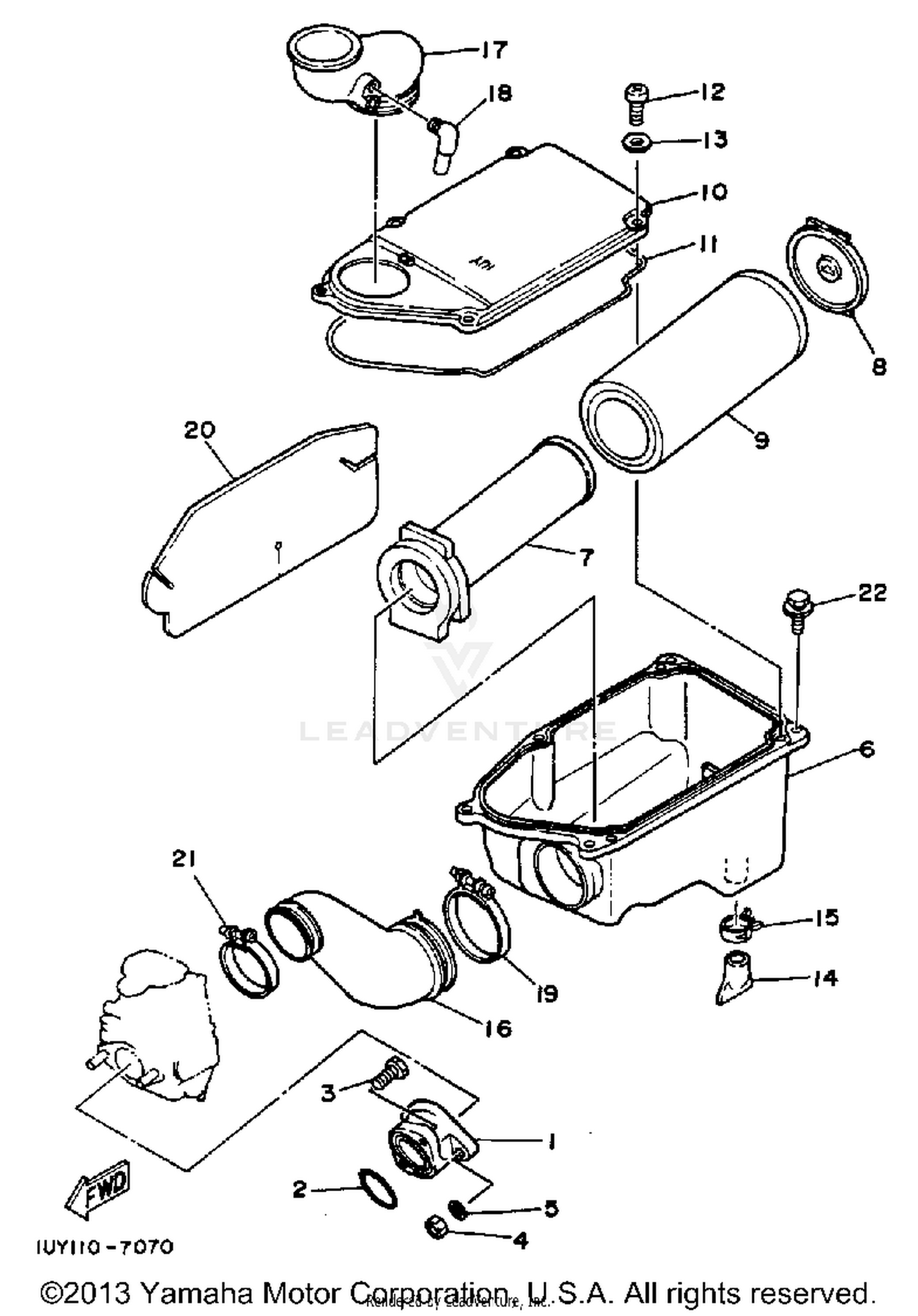

Air Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
1UY-13586-01-00
Superseded by 1UY-13586-02-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-44545-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91316-08025-00
Superseded by 91317-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-084L7-00
Superseded by 90201-08085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE, AIR CLEANER 1
1UY-14411-00-00
Superseded by 1UY-14411-02-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE
1UY-14458-00-00
Superseded by 1UY-14458-01-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE,ELEMENT FITTING
1UY-14468-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ELEMENT,AIR CLNR
1UY-14451-00-00
Superseded by 1UY-14451-01-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, CLEANER CASE 1
1UY-14412-00-00
Superseded by 1UY-14412-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL
1VJ-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
59V-14457-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-22080-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT, AIR CLEANER 1
1UY-14453-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUCT
1UY-14437-00-00
Superseded by 1UY-14437-02-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE
31A-14419-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90460-75020-00
Superseded by 90450-75002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PROTECTOR
3GD-1442F-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE CLAMP ASSY
90460-56105-00
Superseded by 90450-56001-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, WITH WASHER
90119-06063-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
