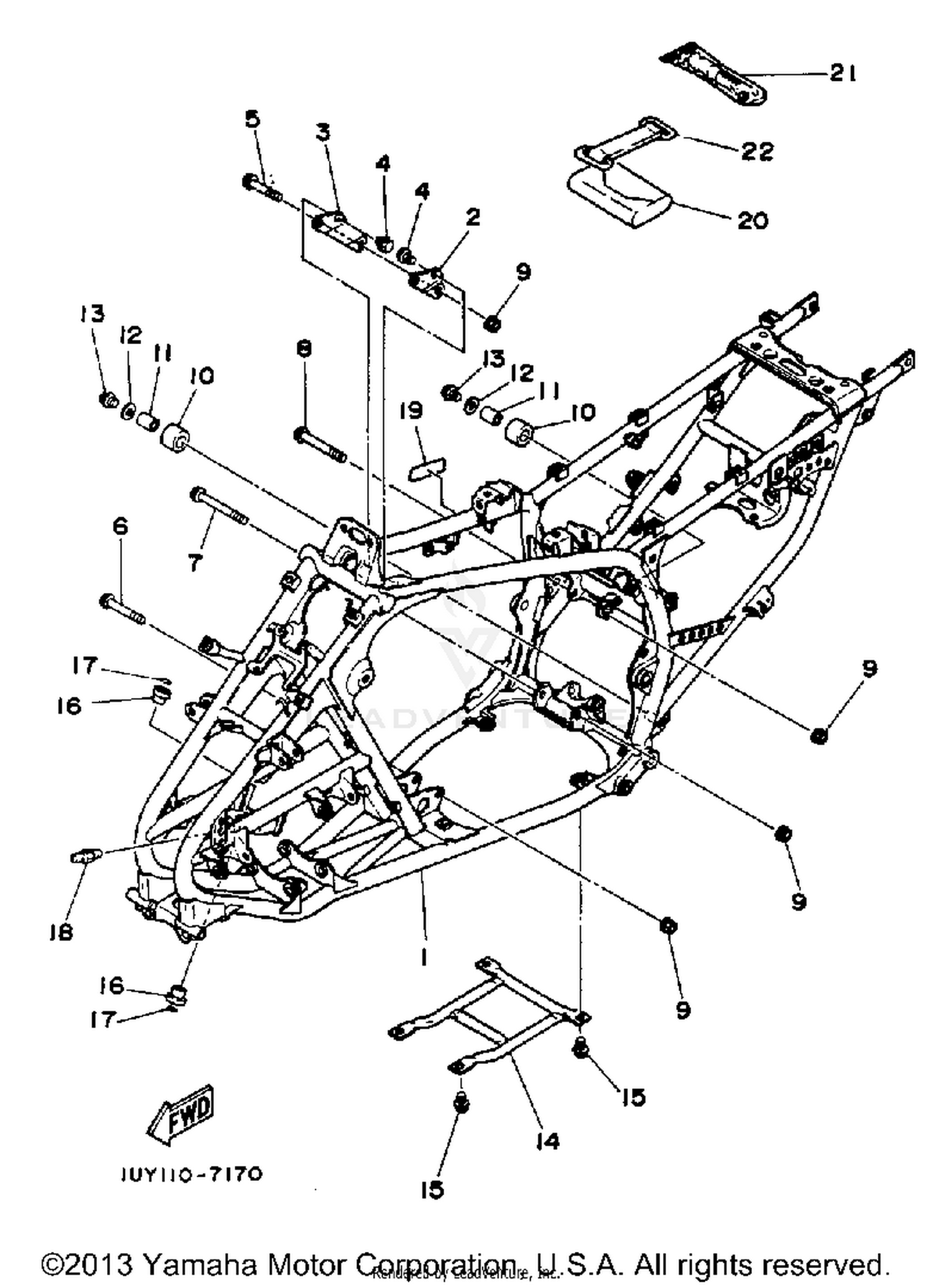

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (RED) (1UY-21110-00-FH)
1UY-21110-01-FH
|
$1,128.99 | ||
|
Unavailable |
|||
|
#
FRAME (BLUE) (1UY-21110-00-NJ)
1UY-21110-01-NJ
|
$1,174.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 2
1UY-21315-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, ENGINE 3
1UY-21316-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95811-08070-00
Superseded by 95817-08070-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-08100-00
Superseded by 95817-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-08442-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#14
PROTECTOR, ENGINE
1UY-21471-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
BUSH, SOLID
90381-15040-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
LABEL
1UY-26137-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TOOL KIT (24W-28100-00)
59V-28100-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#21
GAUGE, AIR
1NV-2811A-00-00
Superseded by 1NV-2811A-01-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, TOOL
21V-21376-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
