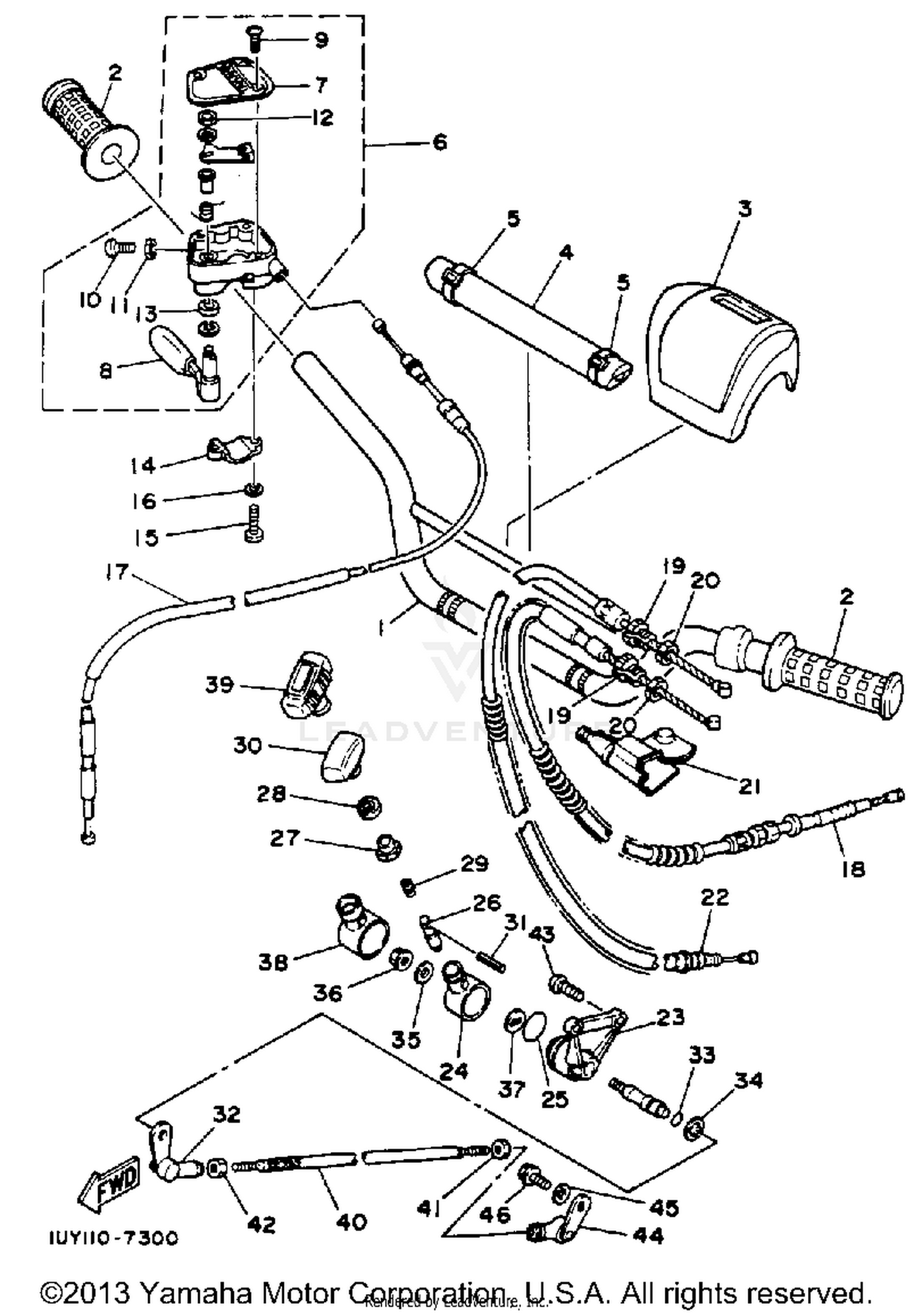

Handlebar Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1UY-26111-00-00
Superseded by 1UY-26111-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#2
GRIP
3GB-26241-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, HDLBR
1UY-26124-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#4
PROTECTOR 1
1UY-2622K-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#5
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
THROTTLE LEVER ASSY
1NV-26250-01-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, GEAR
1NV-2628F-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, THROTTLE
1NV-2625G-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95606-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95316-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93104-09025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE, THROTTLE 1
1UY-26311-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#18
CABLE, CLUTCH
1UY-26335-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, HANDLE LEVER 2
1UY-2637A-00-00
Superseded by 1UY-2637A-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE, BRAKE 1
1UY-26341-01-00
Superseded by 1UY-26341-10-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BODY,REVERSE LEVER
1UY-26151-01-00
Superseded by 99999-02884-00
|
$103.99 | ||
|
Unavailable |
|||
|
#24
LEVER, REVERSE
1UY-26152-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-29196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
STOPPER, LEVER
1UY-26154-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#27
COVER, SHIFT SPRING
1UY-26161-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#28
OIL SEAL
93109-08050-00
Superseded by 93109-08803-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, COMPRESSION
90501-102E5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER, LOCK
1UY-26157-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, SPRING
91609-40016-00
Superseded by 91690-40016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHAFT, LINK
2XK-26162-10-00
Superseded by 5YT-26162-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#33
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90202-14037-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-064J1-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLATE, SIDE 1
1UY-26158-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER, HANDLE LEVER 1
1UY-26372-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
GRIP, LEVER
1UY-26153-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
ROD, JOINT (3GD-26166-00-00)
1UY-26166-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#41
NUT
95316-06700-00
Superseded by 95317-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, BUTTON HEAD
92016-08020-00
Superseded by 92017-08020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
LEVER 2
1UY-26165-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#45
WASHER, PLATE
90201-064J1-00
|
$4.45 | ||
|
Unavailable |
|||
|
#46
BOLT, FLANGE
95816-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
