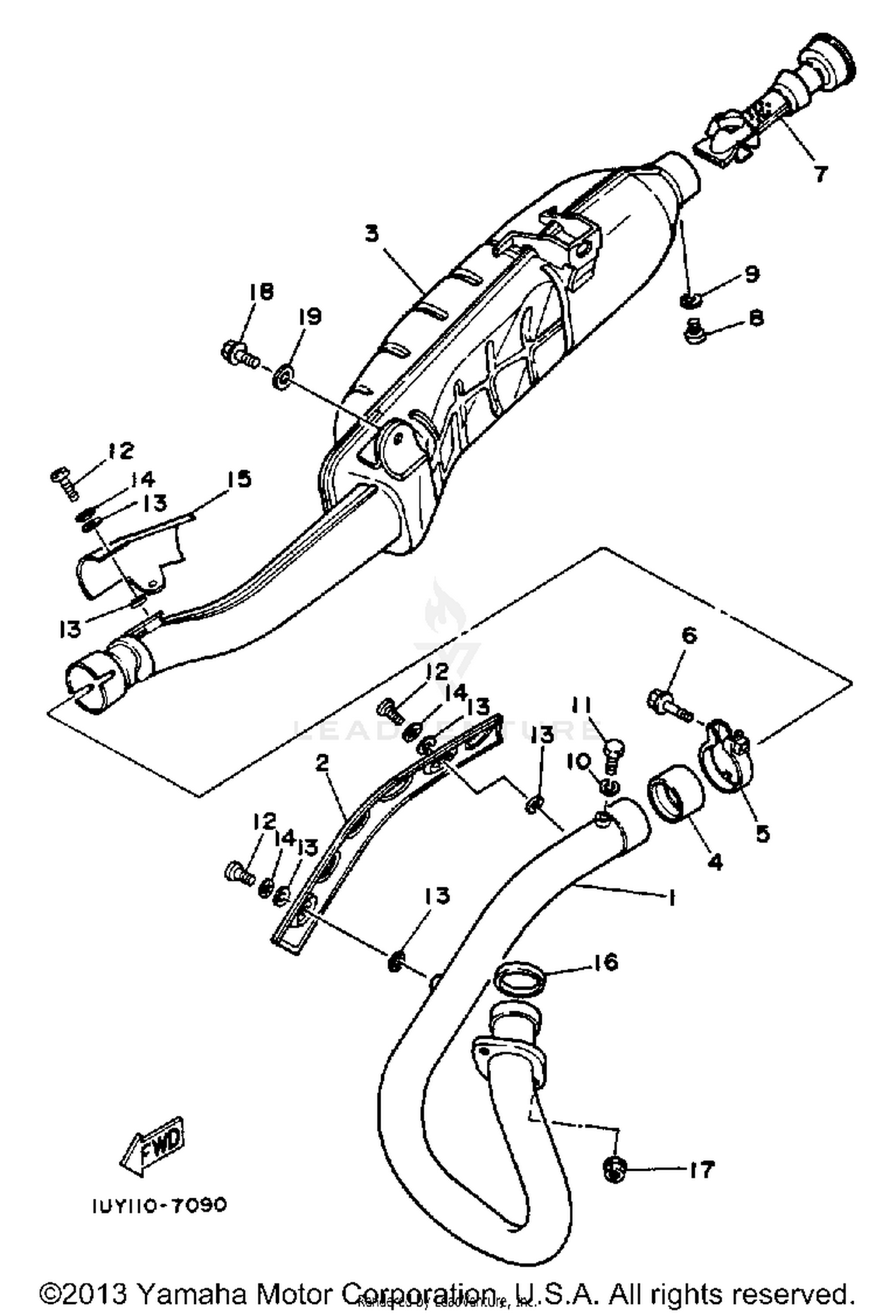

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
1UY-14611-01-00
Superseded by 1UY-14611-03-00
|
$138.99 | ||
|
Unavailable |
|||
|
#2
PROTECTOR, EXHAUST PIPE
1YW-14628-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUFFLER 1
1UY-14711-00-00
Superseded by 1UY-14711-05-00
|
$497.99 | ||
|
Unavailable |
|||
|
#4
GASKET, SILENCER
3YF-14755-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND, MUFFLER
1UY-14715-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
95816-08045-00
Superseded by 95817-08045-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, OUTLET
21V-14752-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BIND
98906-06012-00
Superseded by 98907-06012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PROTECTOR
30X-14766-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#14
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PROTECTOR, MUFFLER 1
1UY-14718-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#16
GASKET, EXHAUST PIPE
90430-38054-00
Superseded by 3GD-14613-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90179-06499-00
Superseded by 90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
