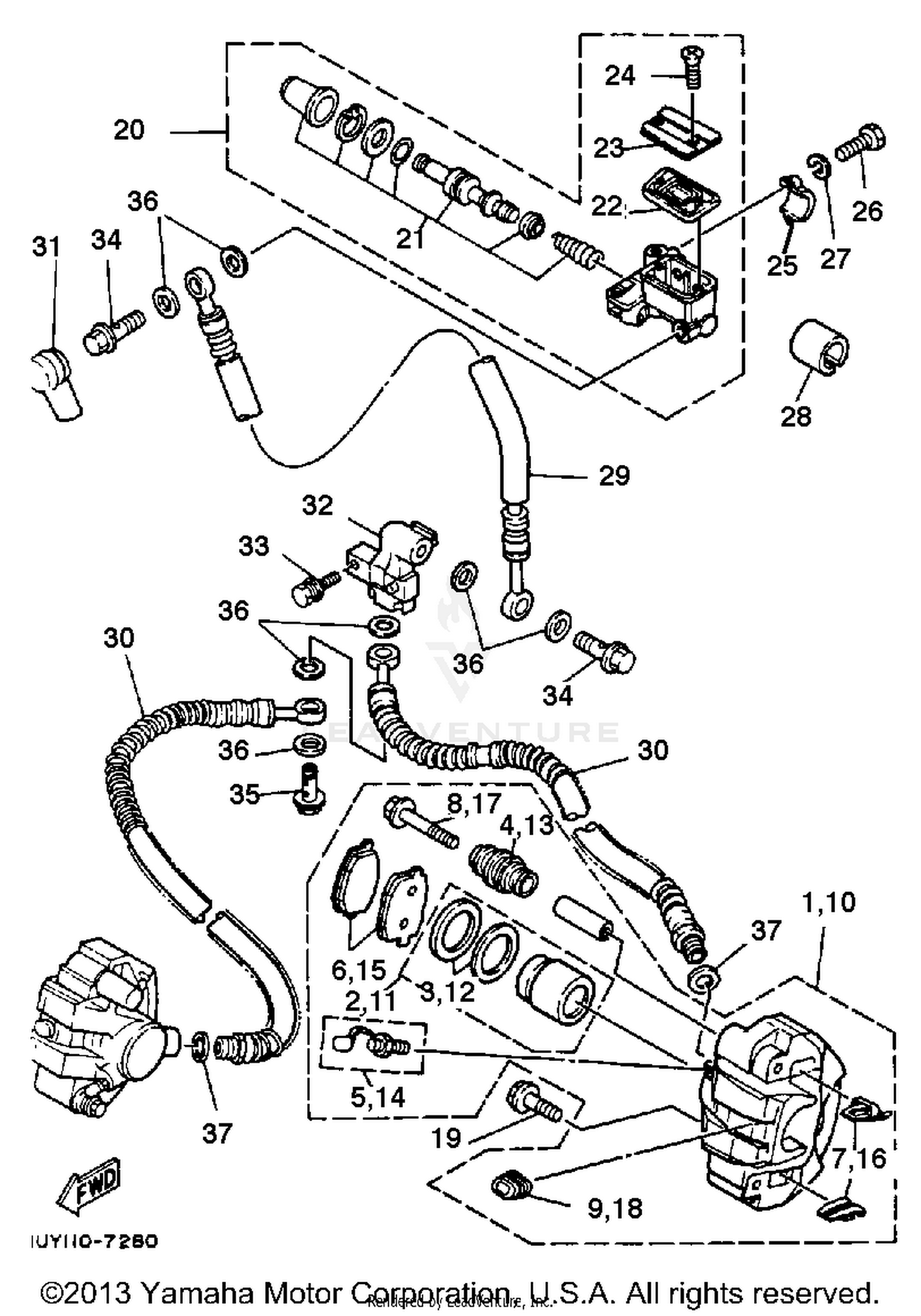

1987 Yamaha YFM350XT WARRIOR FRONT BRAKE CALIPER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSEMBLY, LH
1UY-2580T-00-00
|
$238.99 | ||
|
Unavailable |
|||
|
#2
PISTON ASSEMBLY, CALIPER
1UY-W0057-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#3
CALIPER SEAL KIT
1UY-W0047-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#4
BOOT 2
34X-25937-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE PAD KIT
1UY-W0045-03-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUPPORT, PAD
34X-25919-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
2GV-25926-00-00
Superseded by 5KN-25926-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, INDICATOR
34X-25845-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CALIPER ASSEMBLY, RH
1UY-2580U-00-00
|
$238.99 | ||
|
Unavailable |
|||
|
#11
PISTON ASSEMBLY, CALIPER
1UY-W0057-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#12
CALIPER SEAL KIT
1UY-W0047-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#13
BOOT 2
34X-25937-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#14
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#15
BRAKE PAD KIT
1UY-W0045-03-00
|
$40.99 | ||
|
Unavailable |
|||
|
#16
SUPPORT, PAD
34X-25919-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#17
BOLT
2GV-25926-00-00
Superseded by 5KN-25926-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
CAP, INDICATOR
34X-25845-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#19
BOLT, WASHER BASED
90105-08415-00
|
$1.80 | ||
|
Unavailable |
|||
|
#20
MASTER CYLINDER ASSEMBLY (1UY-2
1UY-25850-01-00
|
$421.99 | ||
|
Unavailable |
|||
|
#21
CYL KIT,MASTER
59X-W0041-00-00
Superseded by 5VK-25807-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, RESERVOIR
4H7-25852-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
1UY-26259-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE, BRAKE 1
1UY-25872-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#30
HOSE,BRAKE 2
1UY-25873-01-00
Superseded by 99999-02637-00
|
$171.99 | ||
|
Unavailable |
|||
|
#31
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
JOINT
1J7-25885-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#33
BOLT, W/WASHER
90119-06124-00
|
$0.60 | ||
|
Unavailable |
|||
|
#34
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, UNION
90401-10044-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
90430-10200-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
