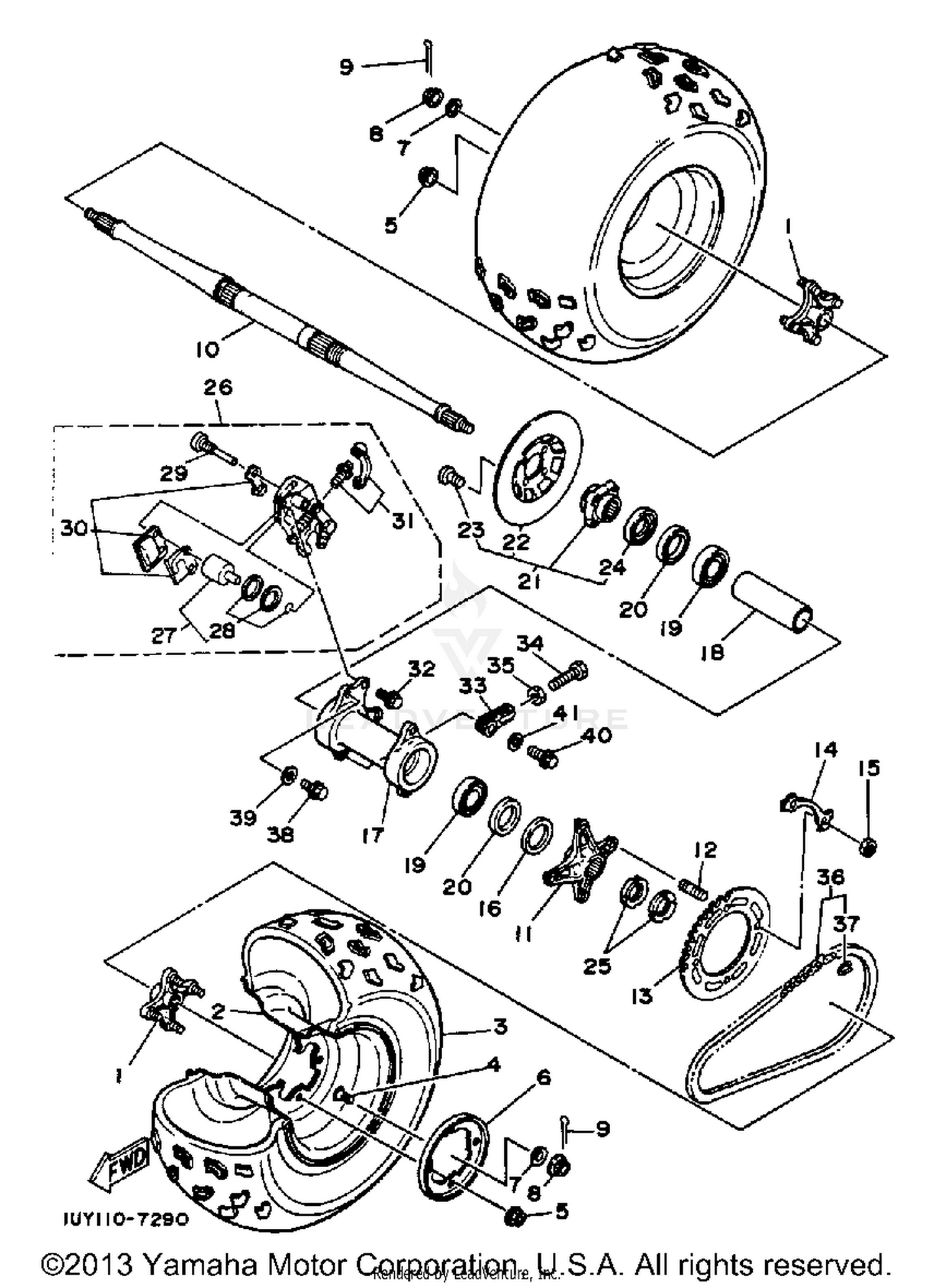

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL SHAFT COLLAR ASSY
2GU-25383-11-00
Superseded by 1PE-F53K0-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WHEEL, REAR
1UY-25390-00-7H
|
$317.99 | ||
|
Unavailable |
|||
|
#3
TIRE (AT22X10-9*KT775B T/L N)
94110-090X4-00
|
$186.99 | ||
|
Unavailable |
|||
|
#4
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
REINFORCEMENT
1UY-2538F-00-00
|
$29.92 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-140A6-00
|
$4.70 | ||
|
Unavailable |
|||
|
#8
NUT, CASTLE
90171-14037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE, WHEEL
3GD-25381-00-00
|
$530.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR,SPRCKT.AXLE
1UY-25386-01-00
Superseded by 99999-03111-00
|
$317.99 | ||
|
Unavailable |
|||
|
#12
BOLT, STUD
90116-10483-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, DRIVEN 40T (39F-25440
43F-25440-50-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
5Y1-25412-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Unavailable |
|||
|
#16
COVER, HUB DUST
1UY-25367-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HUB, REAR
1UY-25311-02-35
|
$152.99 | ||
|
Unavailable |
|||
|
#18
SPACER, BEARING
1UY-25317-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#19
BEARING
93306-00804-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93102-48370-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DISC BRAKE ASSEMBLY
1UY-25830-00-00
|
$183.99 | ||
|
Unavailable |
|||
|
#22
DISC, BRAKE
1UY-25831-50-00
|
$129.99 | ||
|
Unavailable |
|||
|
#23
BOLT
90109-08789-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, HUB DUST
1UY-25367-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#25
NUT
90179-38532-00
|
$10.49 | ||
|
Unavailable |
|||
|
#26
CALIPER ASSY, REAR 2
1UY-2580W-00-00
Superseded by 1UY-2580W-02-00
|
$590.99 | ||
|
Unavailable |
|||
|
#27
PISTON ASSY, CALIPER
1UY-W0057-50-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CALIPER SEAL KIT
1UY-W0047-50-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, PAD
1UY-25924-51-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRAKE PAD KIT 2
1UY-W0046-00-00
Superseded by 1UY-W0046-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#31
BLEED SCREW KIT
36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
90105-08440-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PULLER, CHAIN 1
1UY-25388-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90101-08615-00
Superseded by 90101-08777-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
DID 520V6-100FB
94581-08100-00
|
$182.99 | ||
|
Unavailable |
|||
|
#37
JOINT, CHAIN (34L) (D.I.D.50H
94680-50011-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
FLANGE BOLT
90105-12462-00
Superseded by 99999-03487-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
90201-120A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, WASHER BASED
90105-10418-00
|
$3.95 | ||
|
Unavailable |
|||
|
#41
WASHER, PLATE
90201-106F2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
