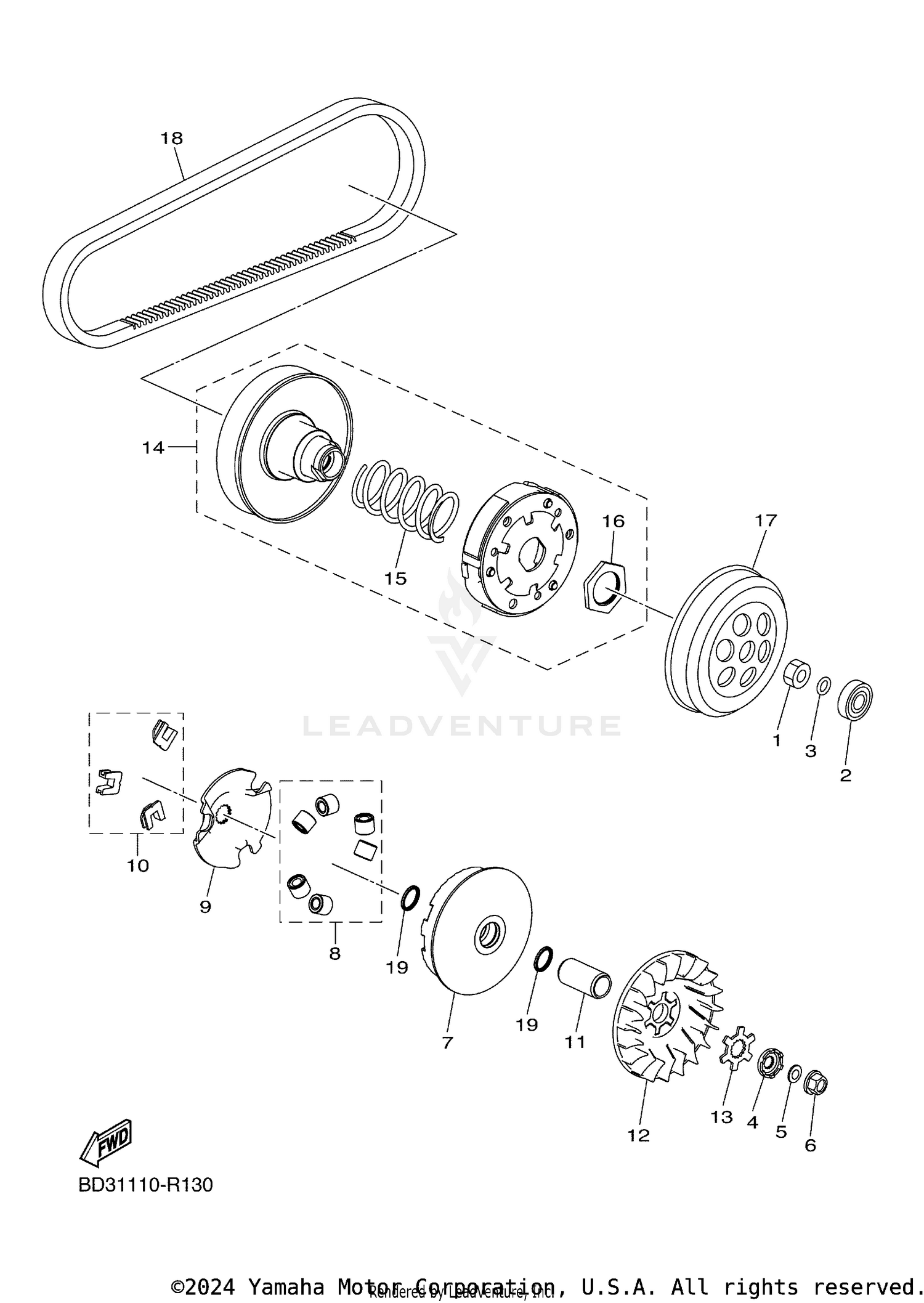

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT
BD3-E4594-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING 1
BD3-E7156-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
BD3-E3769-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH, ONEWAY
BD3-E5657-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
BD3-F3427-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT 2
BD3-F3834-10-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHEAVE, PRIMARY SLIDING
BD3-E7621-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WEIGHT
BD3-E7632-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAM
BD3-E7623-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH
BD3-E7625-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH
BD3-E7637-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHEAVE, PRIMARY FIXED
BD3-E7611-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, LOCK
BD3-E7646-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLUTCH CARRIER ASSY
BD3-E6620-10-00
|
$202.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, SECONDARY
BD3-E7683-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
BD3-E4595-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLUTCH HOUSING COMP.
BD3-E6611-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
V-BELT
BD3-E7641-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
BD3-E76F3-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
