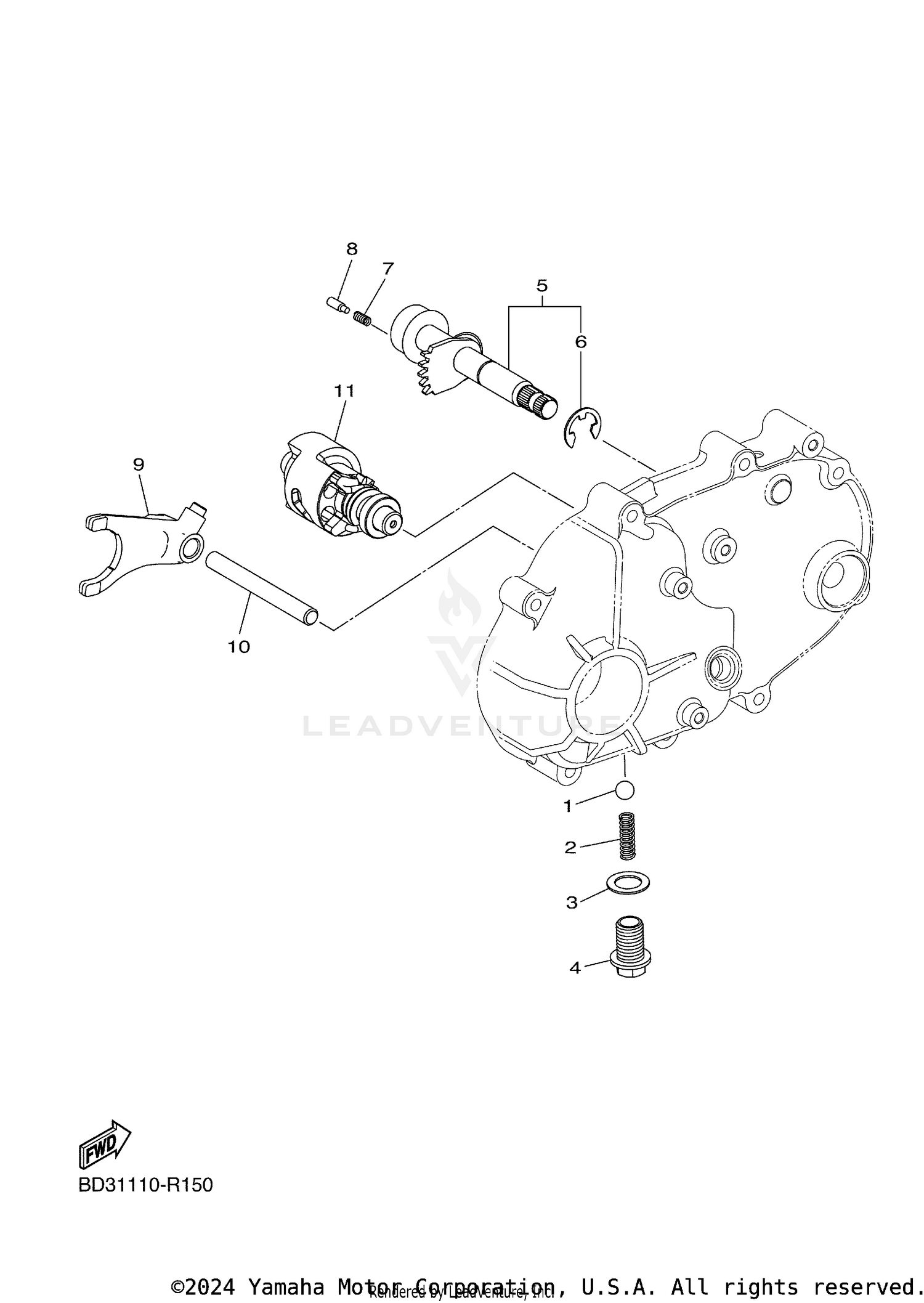

Shift Cam Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BALL
BD3-E7051-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, BALL HOLD
BD3-E7479-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,1
BD3-E7058-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, FIXED
BD3-E765G-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIFT SHAFT COMP.
BD3-E8103-10-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP 1
BD3-HA906-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
BD3-E8545-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
POINT, NEUTRAL
BD3-E8542-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FORK, SHIFT 1
BD3-E8511-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, SHIFT FORK GUIDE 1
BD3-E8531-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIFT CAM ASSY
BD3-E8540-00-00
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
