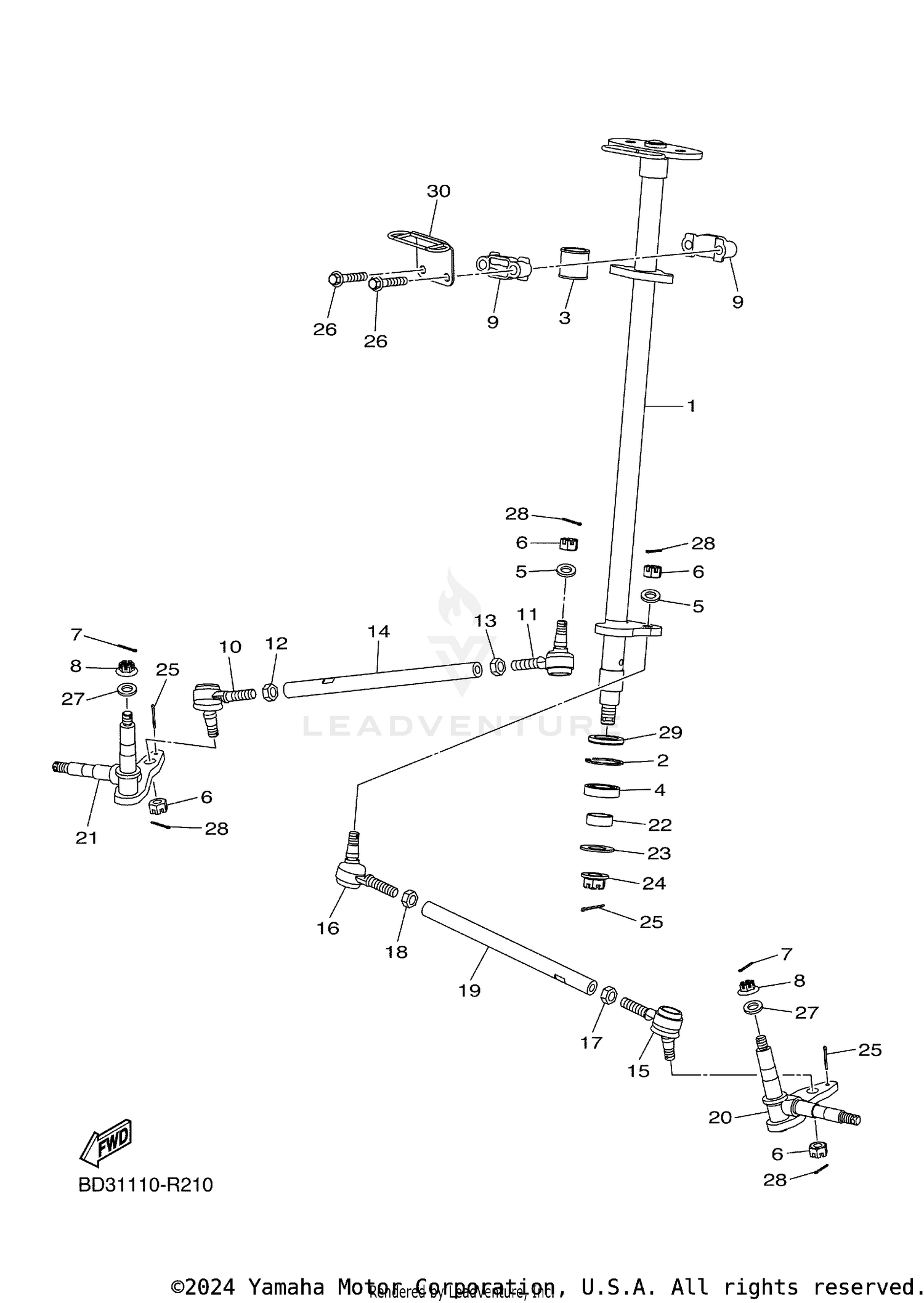

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLUMN, STEERING 2
BD3-F3813-00-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, RING
BD3-F384N-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, STEERING
BD3-F3818-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, STEERING
BD3-F3812-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
BD3-F3427-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
BD3-F3856-10-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN 2
BD3-F146E-10-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
BD3-F3877-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, BEARING
BD3-F3872-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, UNIVERSAL 1
BD3-F3841-10-00
Superseded by BD3-F3841-20-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, UNIVERSAL 2
BD3-F3845-10-00
Superseded by BD3-F3845-20-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
BD3-F1791-10-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
BD3-F1829-10-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, TIE
BD3-F3831-10-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, UNIVERSAL 1
BD3-F3841-10-00
Superseded by BD3-F3841-20-00
|
$92.99 | ||
|
Unavailable |
|||
|
#16
JOINT, UNIVERSAL 2
BD3-F3845-10-00
Superseded by BD3-F3845-20-00
|
$92.99 | ||
|
Unavailable |
|||
|
#17
NUT
BD3-F1791-10-00
|
$4.55 | ||
|
Unavailable |
|||
|
#18
NUT
BD3-F1829-10-00
|
$4.55 | ||
|
Unavailable |
|||
|
#19
ROD, TIE
BD3-F3831-10-00
|
$47.99 | ||
|
Unavailable |
|||
|
#20
KNUCKLE, STEERING 1
BD3-F3511-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
KNUCKLE, STEERING 2
BD3-F3521-00-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER
BD3-F38B2-10-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, FELT
BD3-F3165-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
BD3-F4531-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN
BD3-F112N-10-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT 2
BD3-F4177-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER 4
BD3-F2246-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN
BD3-F4374-10-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL
BD3-F3844-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET, STEERING LOWER
BD3-F3868-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
