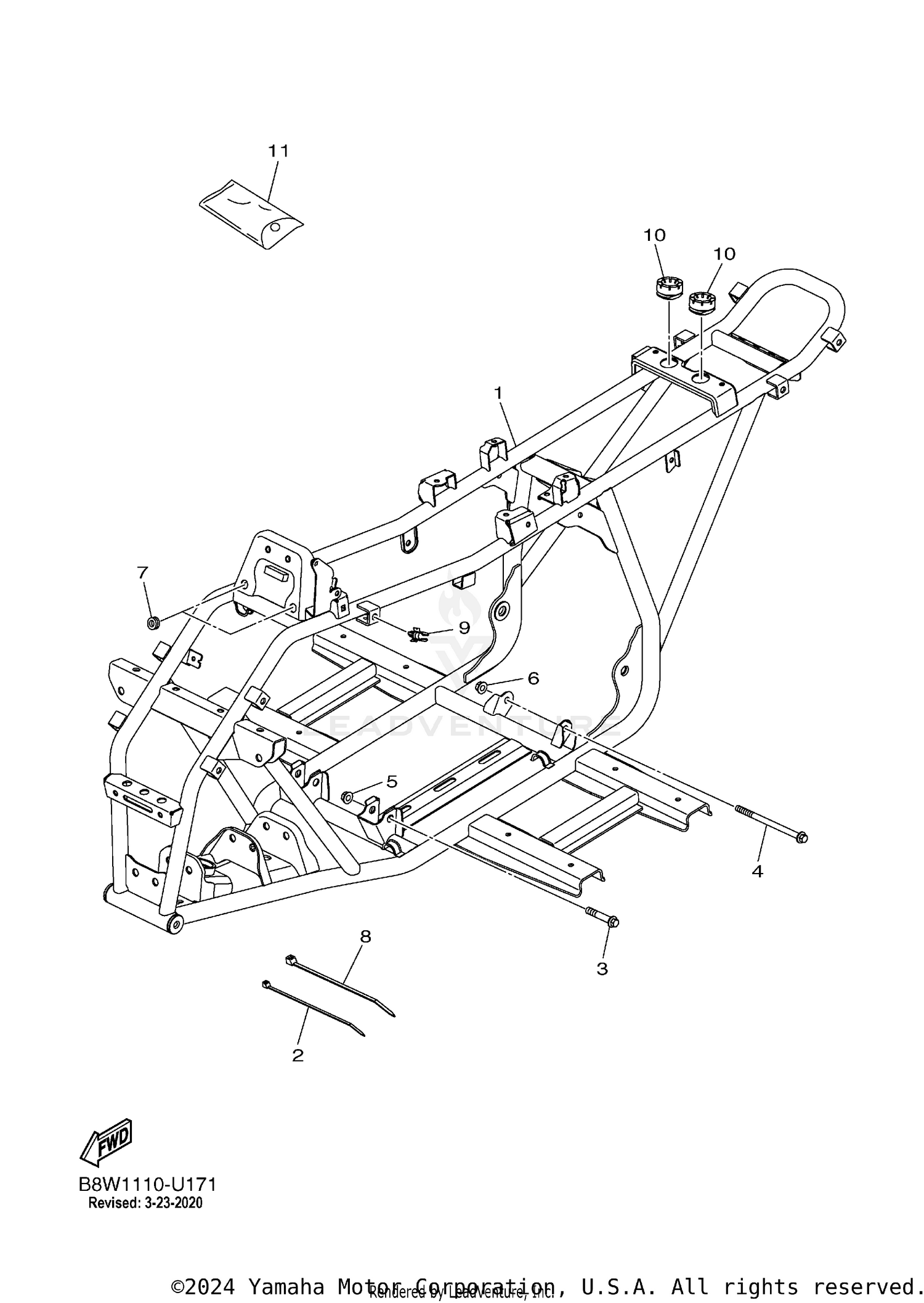

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
B8W-F1110-00-00
|
$1,360.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
BD3-F1646-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
BD3-F6332-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT 3
BD3-F4178-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
BD3-F1839-10-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
BD3-F3778-10-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
BD3-F1719-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND
BD3-F1647-00-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
BD3-F15A3-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
BD3-F113B-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TOOL KIT
BD3-F8100-10-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
