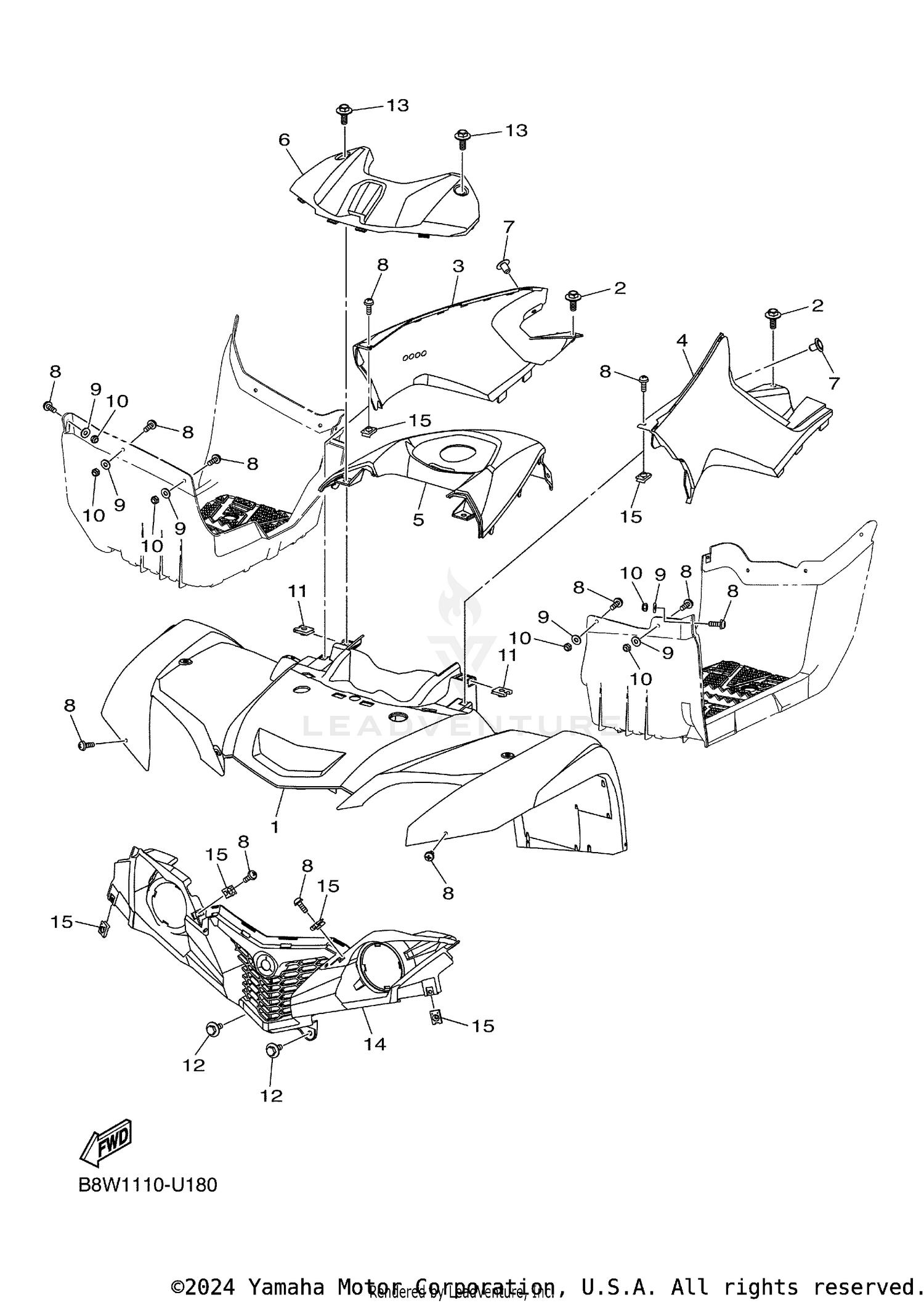

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSY
B8W-F1500-00-00
|
$388.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
BD3-F1738-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, SIDE 2
B8W-F1721-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SIDE 1
B8W-F1711-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, TOP
B8W-F171A-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FENDER, FRONT 2
B8W-F1556-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIVET
BD3-F1728-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW 4
BW4-F11C8-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
BW4-F2149-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT 3
BW4-F4148-00-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
BD3-F4149-10-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT 2
BD3-F1632-10-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT 2
BD3-F3356-10-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GRILLE, FRONT
B8W-F8309-00-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT SPRING 1
BD3-E261D-10-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
