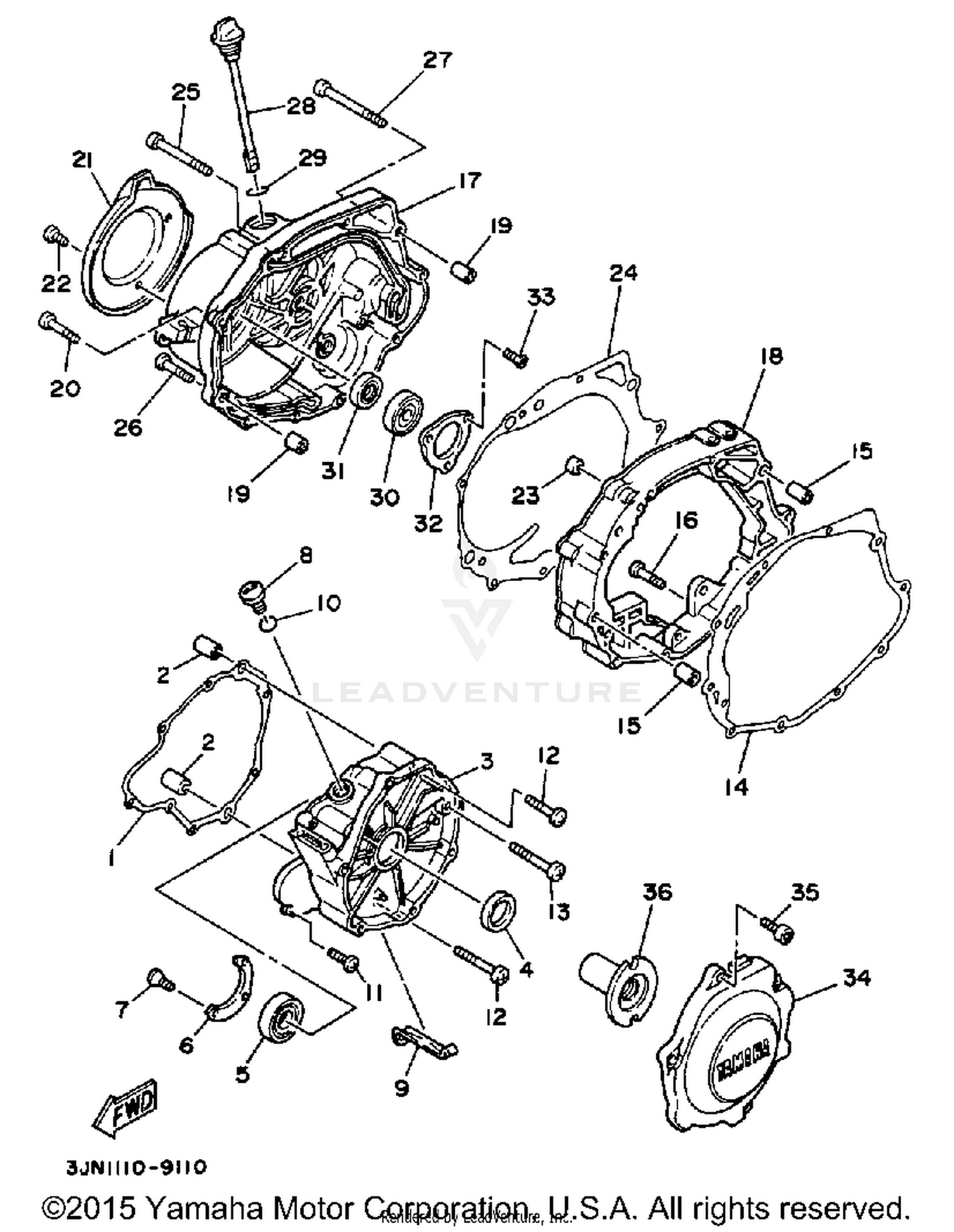

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, CRANKCASE
3JN-15451-00-00
Superseded by 3JN-15451-10-00
|
$19.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADAPTOR
59V-15787-01-00
|
$298.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
93103-28141-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20547-00
Superseded by 93306-07801-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, THRUST
21V-15719-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98701-05016-00
Superseded by 98707-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-14117-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, LOCK
59V-15144-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#10
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98506-06060-00
Superseded by 98507-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET,CARB COVER
3JN-15463-00-00
Superseded by 3JN-15463-10-00
|
$26.99 | ||
|
Unavailable |
|||
|
#15
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98580-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER,CRANKCASE 3
3GH-15431-01-00
Superseded by 3GH-15430-01-00
|
$207.99 | ||
|
Unavailable |
|||
|
#18
SPACER, ENGINE MOUNT
3GH-15317-00-00
|
$156.99 | ||
|
Unavailable |
|||
|
#19
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.10 | ||
|
Unavailable |
|||
|
#21
PROTECTOR, COVER
21V-15499-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#22
SCREW, BIND
98906-06014-00
Superseded by 98907-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NOZZLE 2
3GH-15148-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#24
GASKET, CRCS COVER
3JN-15461-00-00
Superseded by 3JN-15461-10-00
|
$83.99 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98506-06070-00
Superseded by 98507-06070-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.10 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
98506-06080-00
Superseded by 98507-06080-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG, OIL LEVEL
1UY-15362-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93306-20326-00
Superseded by 93306-20335-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93101-17113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE, BEARING COVER
21V-15381-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#33
SCREW, FLAT HEAD
98701-06018-00
Superseded by 98707-06018-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CRANKCASE COVER ASSEMBLY L
59V-15410-01-00
|
$109.99 | ||
|
Unavailable |
|||
|
#35
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOSS, STARTER PULLEY
3GC-15777-00-00
|
$117.99 | ||
|
Unavailable |
|||
