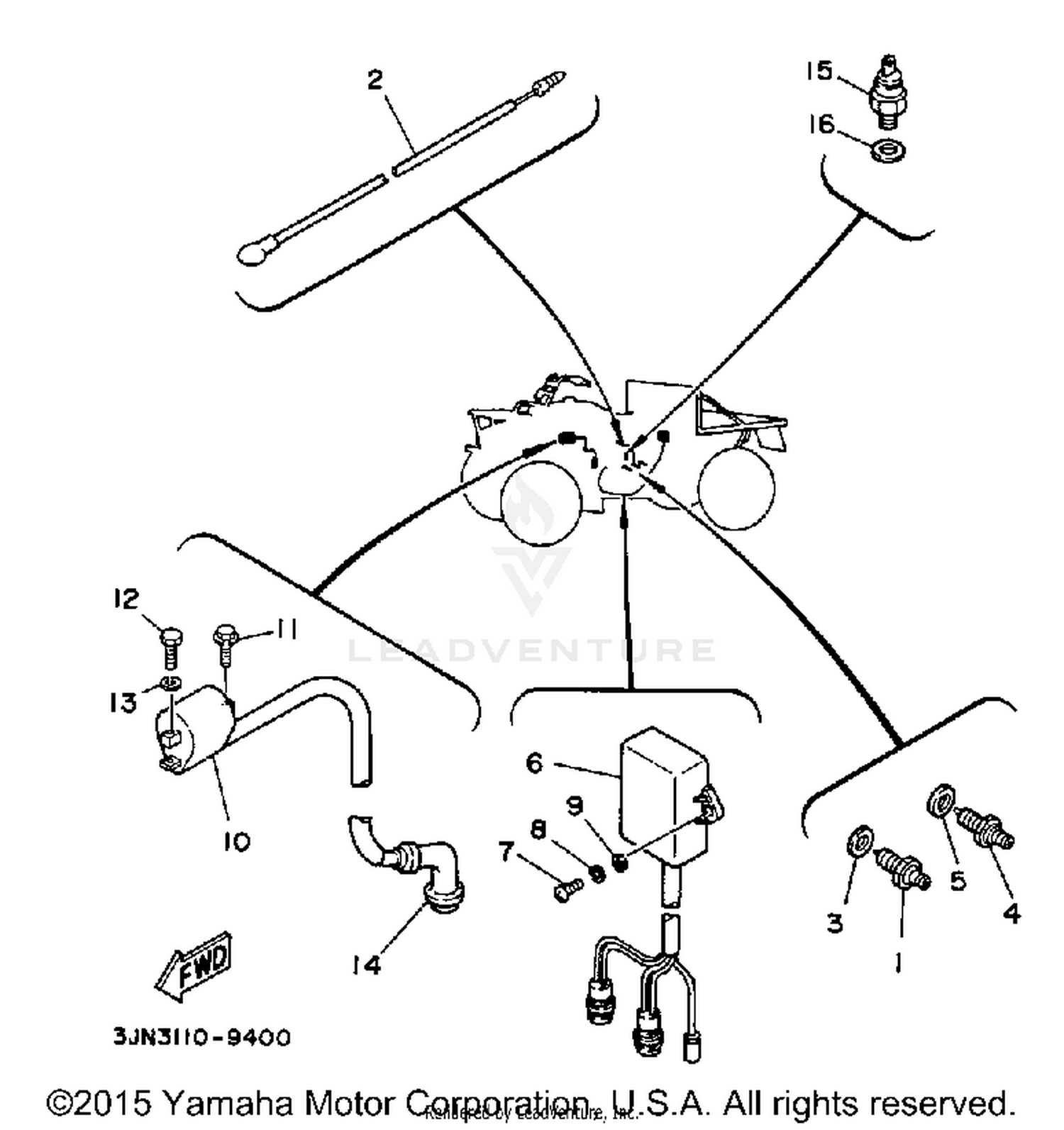

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NEUTRAL SWITCH ASSY
24W-82540-00-00
Superseded by 4GY-82540-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRE, LEAD
2JX-82541-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEUTRAL SWITCH ASSY
24W-82540-00-00
Superseded by 4GY-82540-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#5
GASKET
90430-10171-00
|
$3.00 | ||
|
Unavailable |
|||
|
#6
CDI UNIT ASSEMBLY
3JN-85540-10-00
|
$376.10 | ||
|
Unavailable |
|||
|
#7
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
IGNITION COIL ASSY
3GD-82310-10-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-06723-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
THERMO SWITCH ASSY
3JN-82560-10-00
Superseded by 2HT-82560-10-00
|
$108.99 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-12172-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
