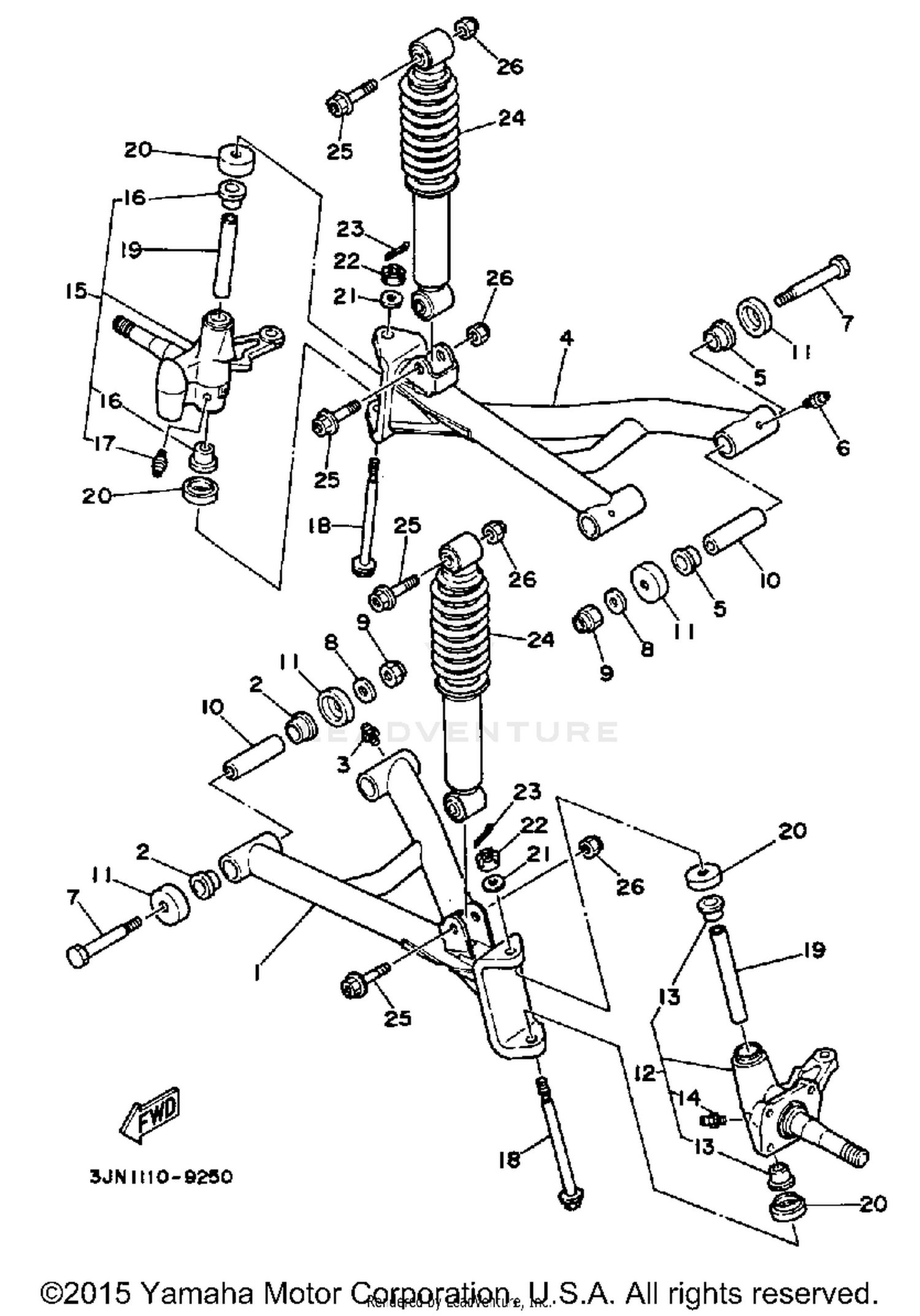

Front Suspension - Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT LWR ARM CMPL LCOMP. (LEFT)
3JN-23570-00-00
|
$194.99 | ||
|
Unavailable |
|||
|
#2
BUSH, SOLID
90381-18066-00
|
$6.49 | ||
|
Unavailable |
|||
|
#3
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRT LWR ARM CMPL RCOMP. (RIGHT)
3JN-23580-00-00
|
$268.99 | ||
|
Unavailable |
|||
|
#5
BUSH, SOLID
90381-18066-00
|
$6.49 | ||
|
Unavailable |
|||
|
#6
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#7
BOLT
90101-10656-00
|
$3.15 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-122H1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-124M4-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, THRUST 1
401-22128-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KNUCKLE, STEERING COMP. (LEFT)
3GH-23510-00-00
Superseded by 3GH-23510-01-00
|
$523.99 | ||
|
Unavailable |
|||
|
#13
BUSH, SOLID
90381-17067-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#15
STEERING KNUCKLE COMP. (RIGHT)
3GH-23520-01-00
|
$523.99 | ||
|
Unavailable |
|||
|
#16
BUSH, SOLID
90381-17067-00
|
$10.49 | ||
|
Unavailable |
|||
|
#17
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#18
BOLT, WASHER BASED
90105-10389-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
2NL-23448-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, THRUST 1
3JN-23517-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CASTLE
90171-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHOCK ABSORBER ASSEMBLYASSY
3JN-23350-00-33
|
$267.99 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
90105-10388-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Unavailable |
|||
