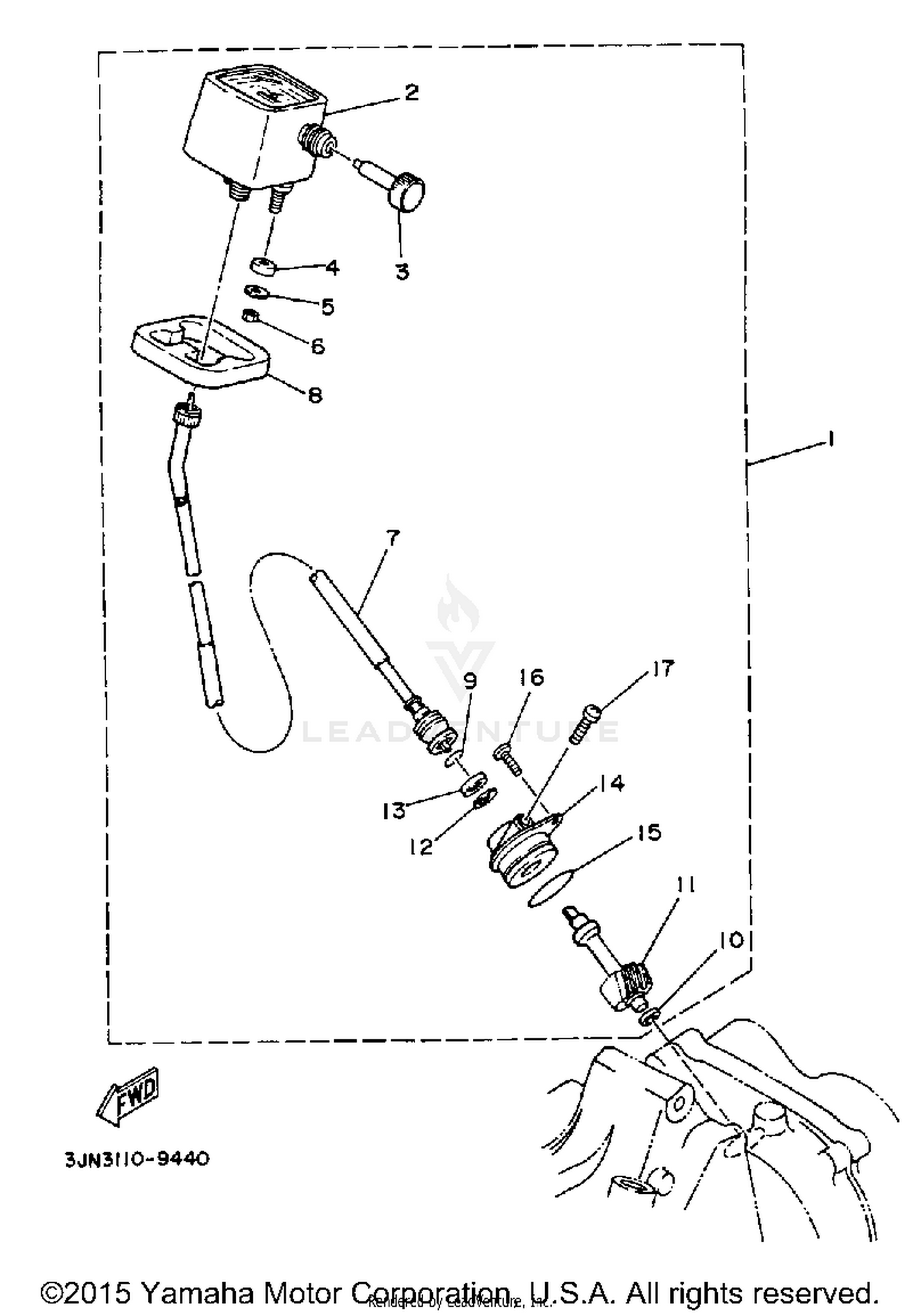

Meter (alternate Parts) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER KIT
3JN-W0081-20-00
|
$192.99 | ||
|
Unavailable |
|||
|
#2
METER ASSEMBLY
2NL-8351A-A0-00
|
$187.99 | ||
|
Unavailable |
|||
|
#3
KNOB, TRIP METER
59V-83578-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#4
DAMPER
4X7-83523-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-05031-00
Superseded by 90201-05725-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPEEDOMETER CABLE ASSEMBLY
3JN-83550-00-00
Superseded by 4WU-83550-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#8
DAMPER
3JN-83664-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#9
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08452-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, DRIVEN
3JN-17841-00-00
|
$78.20 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-12M34-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93102-08307-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOUSING, TACH GEAR
3GH-17811-00-00
|
$16.09 | ||
|
Unavailable |
|||
|
#15
O-RING
93210-36510-00
Superseded by 93210-35804-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
