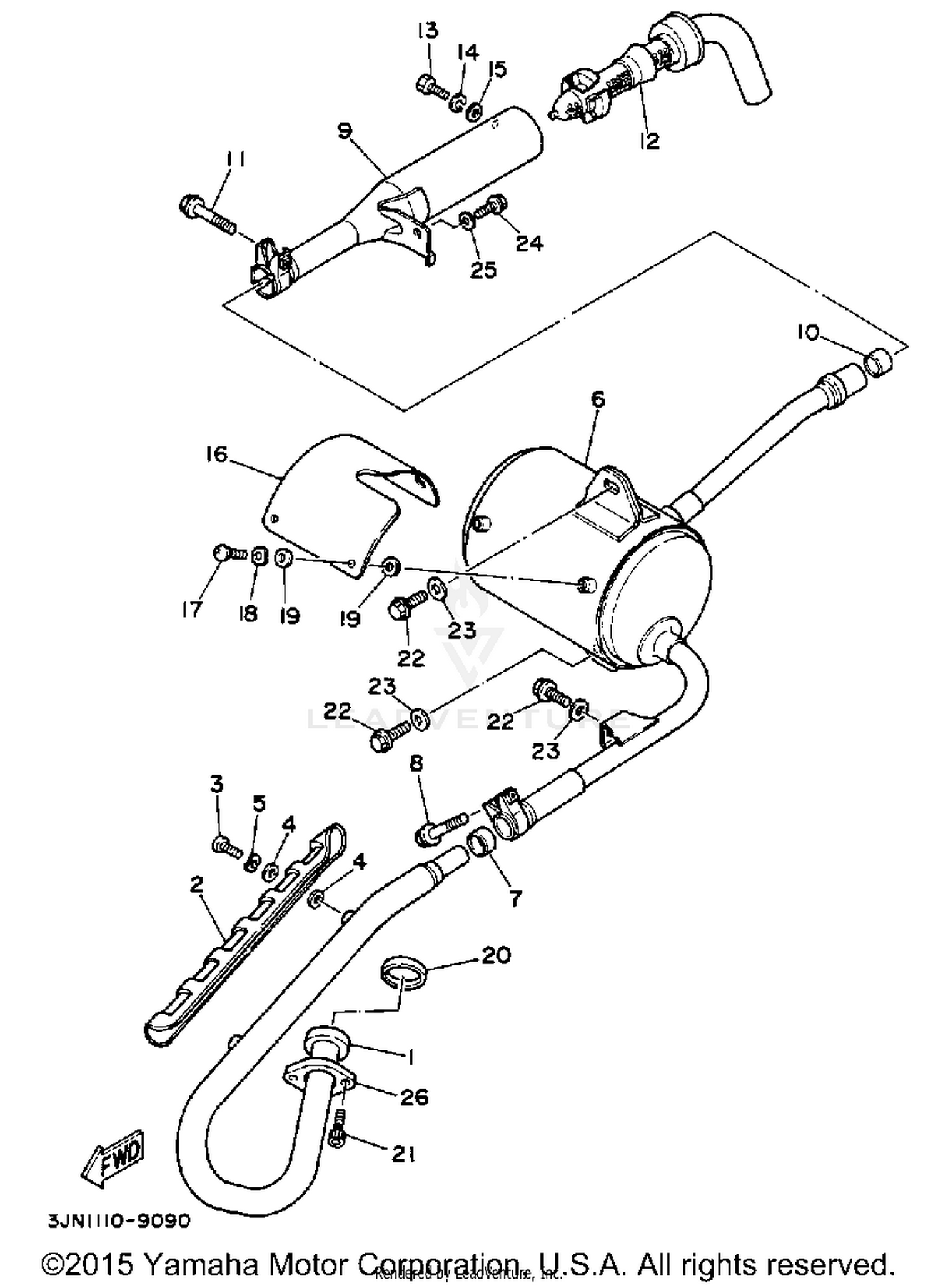

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
3JN-14611-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#2
PROTECTOR, EXHAUST PIPE
3Y1-14628-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#3
SCREW, BIND
98906-06012-00
Superseded by 98907-06012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PROTECTOR
30X-14766-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#5
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER L
3JN-14711-00-00
|
$269.99 | ||
|
Unavailable |
|||
|
#7
GASKET, MUFFLER
3JN-14714-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95816-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SILENCER, EXHAUST
3JN-14753-00-00
|
$207.99 | ||
|
Unavailable |
|||
|
#10
GASKET, MUFFLER
3JN-14714-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95816-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
PIPE, OUTLET
3JN-14752-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#13
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR, MUFF 1MUFFLER 1
3JN-14718-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#17
SCREW, BIND
98906-06012-00
Superseded by 98907-06012-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
WASHER, PROTECTOR
30X-14766-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#20
GASKET, EXHAUST PIPE
4BE-14613-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
NUT, RING
5H0-14612-00-00
Superseded by 5H0-14612-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
