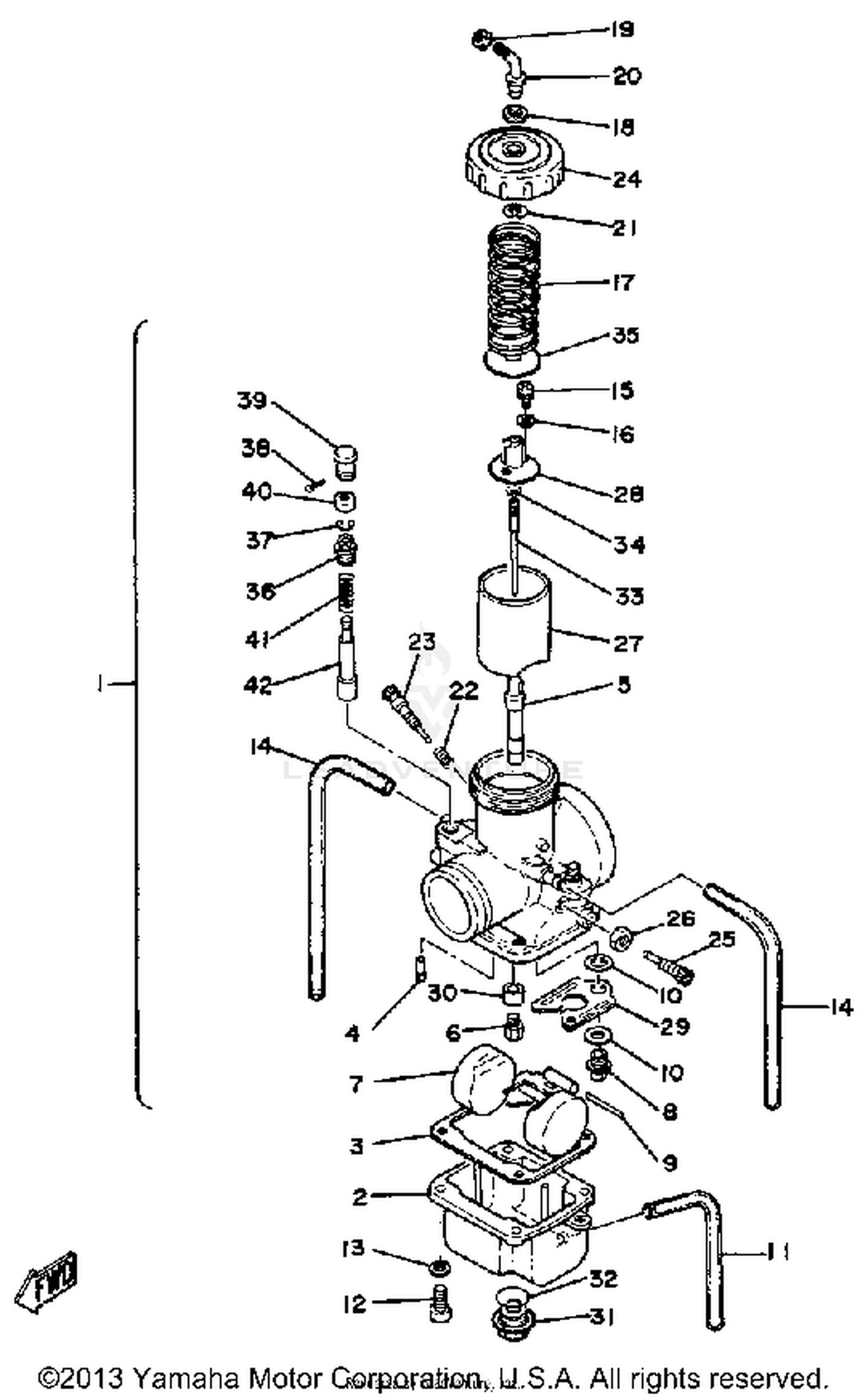

Carburetor Yz250g H Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1 (250H)
4V3-14101-00-00
|
$230.99 | ||
|
Unavailable |
|||
|
#
NO LONGER AVAILABLE (250G)
3R4-14101-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#2
BODY, FLOAT CHMBR 1
3R4-14181-16-00
|
$31.56 | ||
|
Unavailable |
|||
|
#3
GASKET, FLOAT CHAMBER
363-14184-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, PILOT ( 80)
193-14142-80-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT #60
193-14142-60-00
|
$5.00 | ||
|
Unavailable |
|||
|
#5
NOZZLE, MAIN (250G)
510-14141-48-00
|
$40.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN (Q-0)
510-14141-50-00
|
$37.67 | ||
|
Unavailable |
|||
|
#6
JET, MAIN (380)
137-14143-76-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#390)
137-14143-78-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (370)
137-14143-74-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (360)
137-14143-72-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLOAT
2N7-14185-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEEDLE VALVE SET
23X-14107-35-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE
3Y3-14196-00-00
Superseded by 88R-14987-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
92902-03600-00
Superseded by 92907-03600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, THROTTLE VALVE
363-14131-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#18
O-RING
8F2-14147-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CBLE AJST SCRW SET
26A-14106-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#21
CLIP
363-14137-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, AIR ADJUSTING
127-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
AIR SCREW SET
23X-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
TOP, MIXING CHAMBER
3R4-14158-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#25
THROTTLE SCREW SET
23X-14103-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT,CABLE ADJ
802-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
VALVE, THROTTLE 1
2X8-14112-30-00
|
$135.99 | ||
|
Unavailable |
|||
|
#28
CONNECTOR
509-14274-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#29
PLATE
3R4-14146-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#30
WASHER, MAIN JET
2X8-14153-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#31
PLUG, SCREW
510-14115-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#32
O-RING
558-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NEEDLE
239-14116-16-00
|
$11.18 | ||
|
Unavailable |
|||
|
#34
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SEAT, SPRING
509-14136-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#36
CLIP, PLUNGER
152-14174-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP, PLUNGER
353-14138-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOLDER
737-14261-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#40
COVER, PLUNGER CAP
637-14173-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#41
SPRING, PLUNGER
156-14135-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLUNGER, STARTER
737-14171-01-00
|
$17.82 | ||
|
Unavailable |
|||
