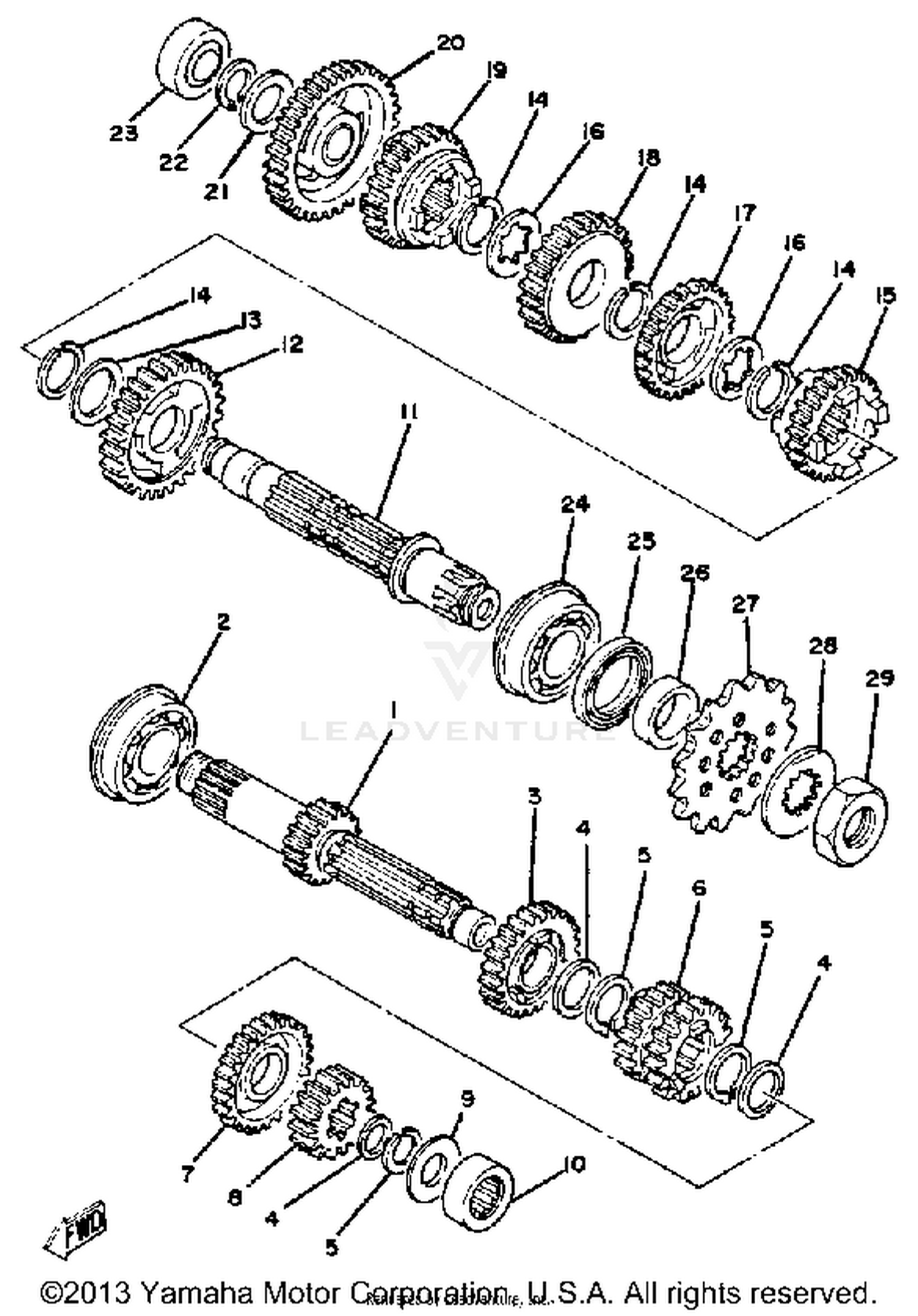

Transmission Yz250g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (14T)
3R4-17411-00-00
|
$126.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20540-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (23T) (3R4-171
3R4-17151-02-00
|
$74.99 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (17T, 21T) (3R
3R4-17131-02-00
|
$115.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 6TH PINION (24T) (3R4-171
3R4-17161-03-00
|
$98.99 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION (16T) (3R4-171
3R4-17121-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, CYLINDER 11
93311-41734-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE, DRIVE
3R4-17421-00-00
|
$167.99 | ||
|
Unavailable |
|||
|
#12
GEAR, 2ND WHEEL (29T) (3R4-1722
3R4-17221-02-00
|
$81.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 6TH WHEEL (21T) (3R4-1726
3R4-17261-02-00
|
$83.99 | ||
|
Unavailable |
|||
|
#16
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 4TH WHEEL (24T) (3R4-1724
3R4-17241-01-00
|
$90.99 | ||
|
Unavailable |
|||
|
#18
GEAR, 3RD WHEEL (24T) (3R4-1723
3R4-17231-01-00
|
$105.99 | ||
|
Unavailable |
|||
|
#19
GEAR, 5TH WHEEL (22T) (3R4-1725
3R4-17251-01-00
|
$101.99 | ||
|
Unavailable |
|||
|
#20
GEAR, 1ST WHEEL (2X4-17211-00)
2X4-17211-01-00
|
$88.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, CYLINDRICAL
93311-62035-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING (B6205C4)
93306-20552-00
Superseded by 93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-32M07-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-25663-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPROCKET,DRIVE 13T
93834-13030-00
Superseded by 93834-13206-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
93834-14051-00
|
$15.65 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVE
93834-15078-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, LOCK
90215-21239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
90179-20255-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
