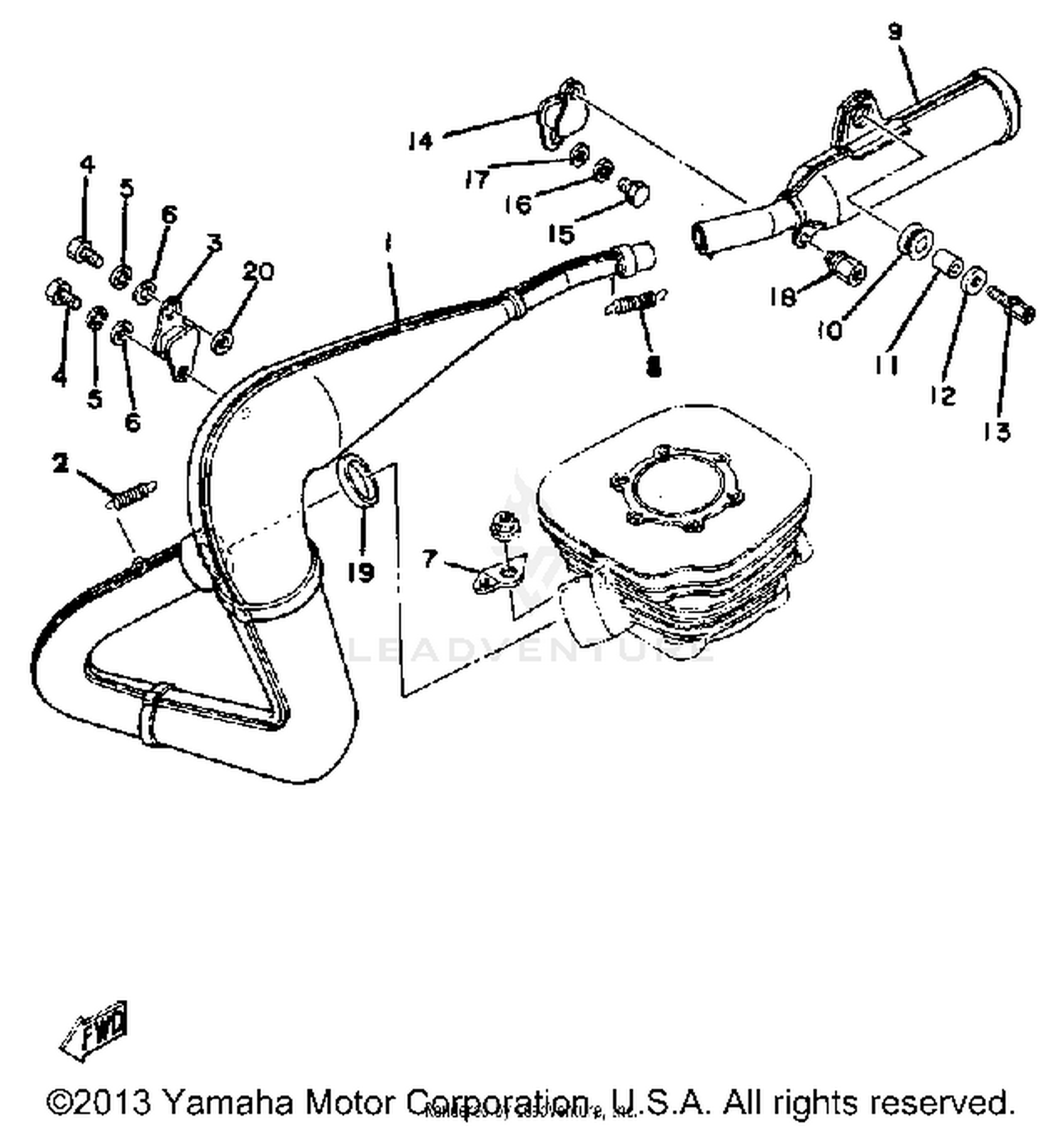

Exhaust Yz250g H Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L (250G)
3R4-14610-00-00
|
$305.99 | ||
|
Unavailable |
|||
|
#
EXHAUST PIPE ASSEMBLY L (250H)
4V3-14610-00-00
|
$324.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90507-20030-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, MUFFLER 2
3R4-14781-03-00
Superseded by 3R4-14781-04-00
|
$33.99 | ||
|
Unavailable |
|||
|
#4
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOOK, SPRING
3R4-14619-01-00
|
$5.24 | ||
|
Unavailable |
|||
|
#8
SPRING, TENSION
90506-20192-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SPRING, TENSION
90506-20223-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SILENCER, EXHAUST
3R4-14753-00-00
|
$68.42 | ||
|
Unavailable |
|||
|
#
SILENCER, EXHAUST (250H)
4V3-14753-00-00
|
$129.99 | ||
|
Unavailable |
|||
|
#10
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER PLATE
90201-085E6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-08512-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-06551-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, EXHAUST PIPE
3R4-14613-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
