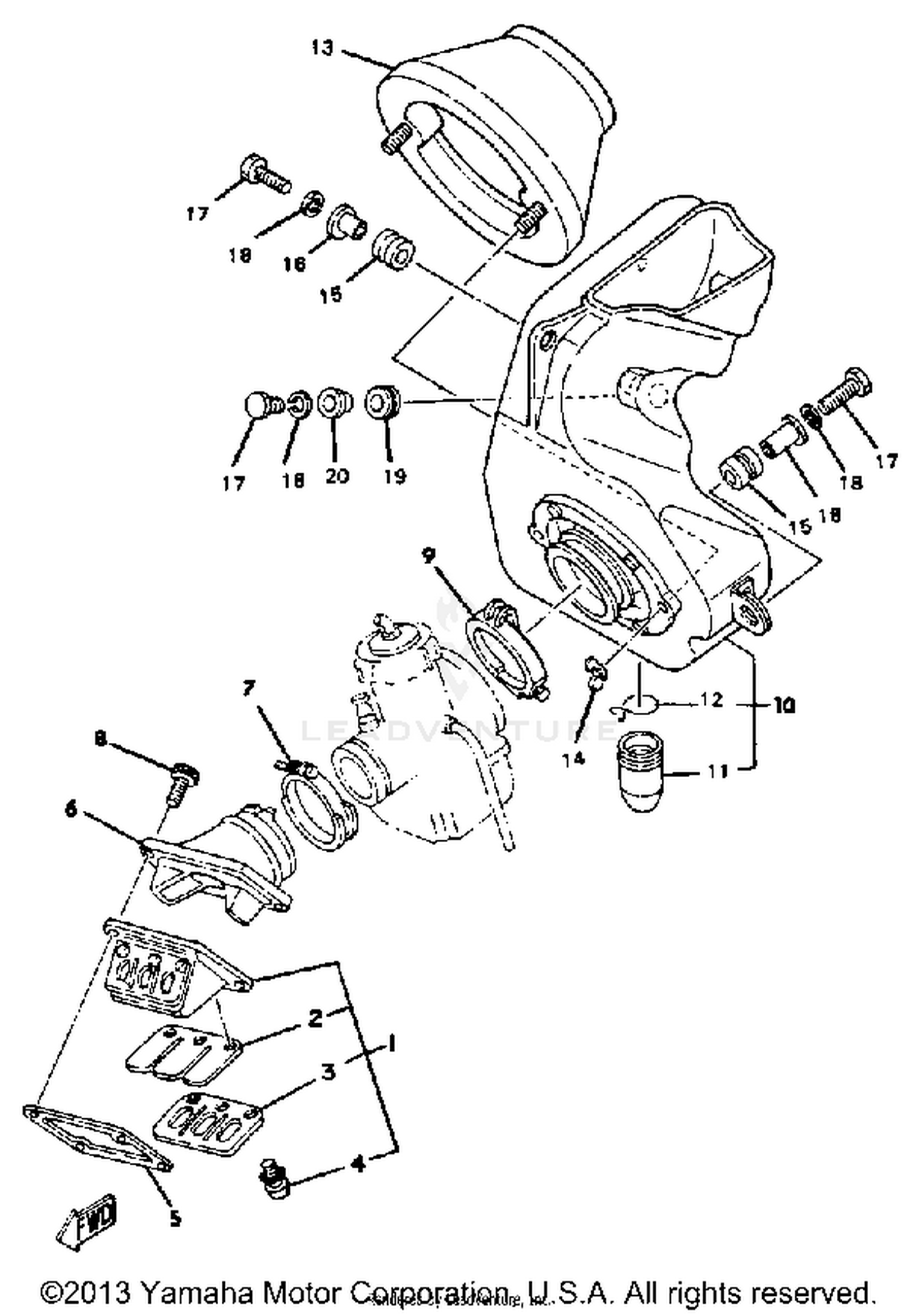

Intake Yz250g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
2X5-13610-00-00
|
$135.99 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
2K7-13613-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#3
STOPPER, REED VALVE
2X5-13616-00-00
|
$5.08 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
97601-03108-00
Superseded by 98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, VALVE SEAT
80L-13621-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CARBURETOR
3R4-13565-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, HOSE
90460-51109-00
|
$12.99 | ||
|
Unavailable |
|||
|
#8
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HOSE
90460-68231-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
AIR CLNR CASE ASSEMBLY
3R4-14401-00-00
|
$73.50 | ||
|
Unavailable |
|||
|
#11
SEAL
1W4-14457-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#12
CLIP
90467-20030-00
Superseded by 90467-20M15-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
ELEMENT, AIR CLNR
3R4-W1442-01-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, WING
90175-06008-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-15058-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-07562-00
|
$3.76 | ||
|
Unavailable |
|||
