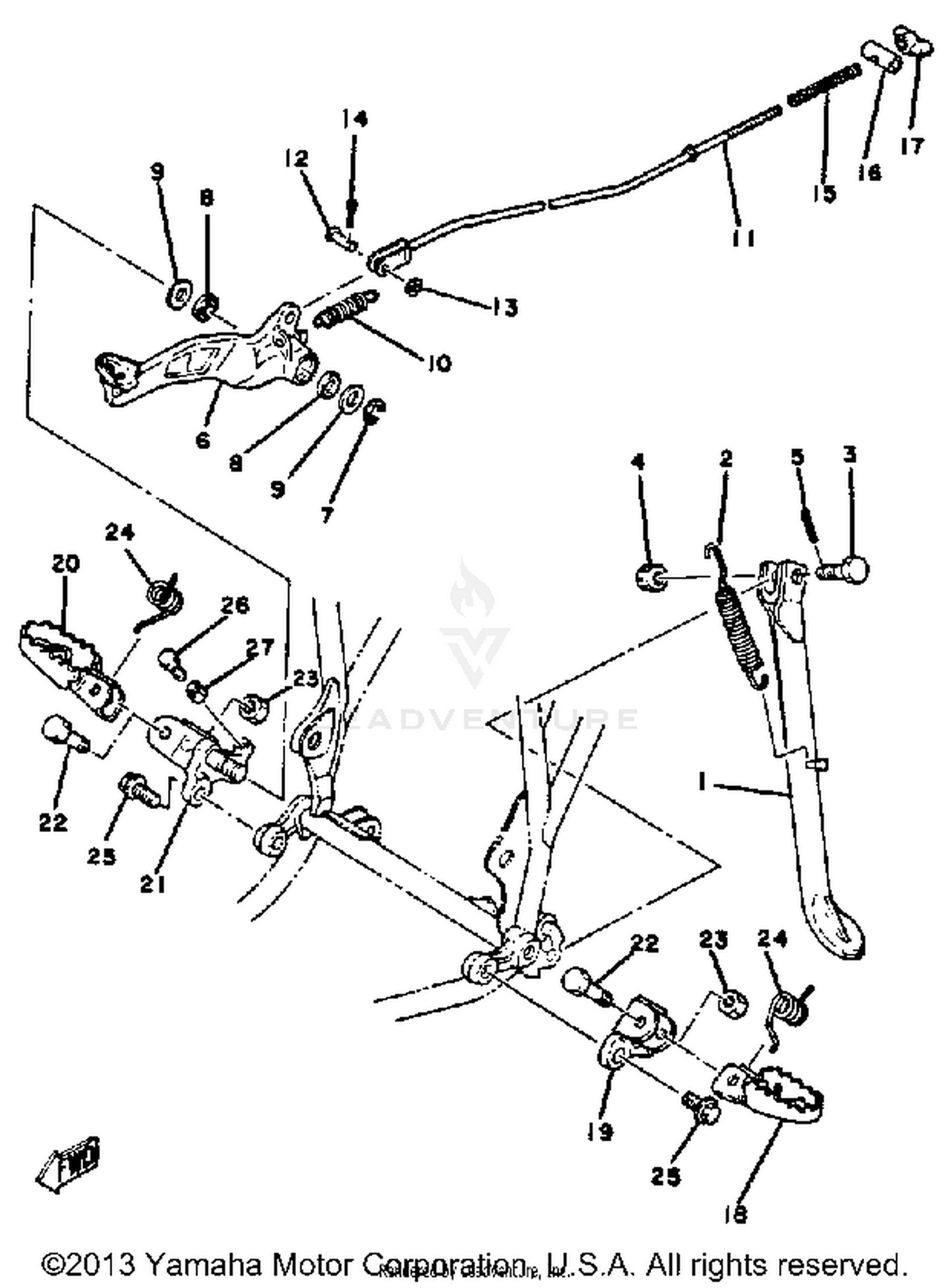

Stand Footrest Yz250g H Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
3R4-27311-00-33
|
$58.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90507-29008-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90102-10006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PEDAL, BRAKE
4V4-27200-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#
PEDAL, BRAKE (3R4-27200-00) (25
3R4-27200-01-00
|
$86.99 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-14411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-20192-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, BRAKE
2X4-27231-01-00
|
$13.99 | ||
|
Unavailable |
|||
|
#
ROD, BRAKE (250G)
3R4-27231-00-00
|
$11.96 | ||
|
Unavailable |
|||
|
#12
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#15
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST 1
3R4-27411-00-00
Superseded by 22W-27411-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FOOTREST 1
5X3-27411-00-00
Superseded by 22W-27411-01-90
|
$30.99 | ||
|
Unavailable |
|||
|
#19
BRACKET, FOOTREST 1
4V4-27412-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#
BRACKET, FOOTREST 1
2X4-27412-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#20
FOOTREST 2 (3R1-27421-00)
4V4-27421-00-00
Superseded by 22W-27421-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FOOTREST 2 (3R1-27421-00)
3R4-27421-00-00
Superseded by 22W-27421-01-90
|
$30.99 | ||
|
Unavailable |
|||
|
#21
BRACKET, FOOTREST 2 (250H)
4V4-27422-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#
BRACKET, FOOTREST 2
2X4-27422-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#22
BOLT
90101-08428-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, WASHER BASED
90105-12096-00
|
$3.15 | ||
|
Unavailable |
|||
|
#26
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
