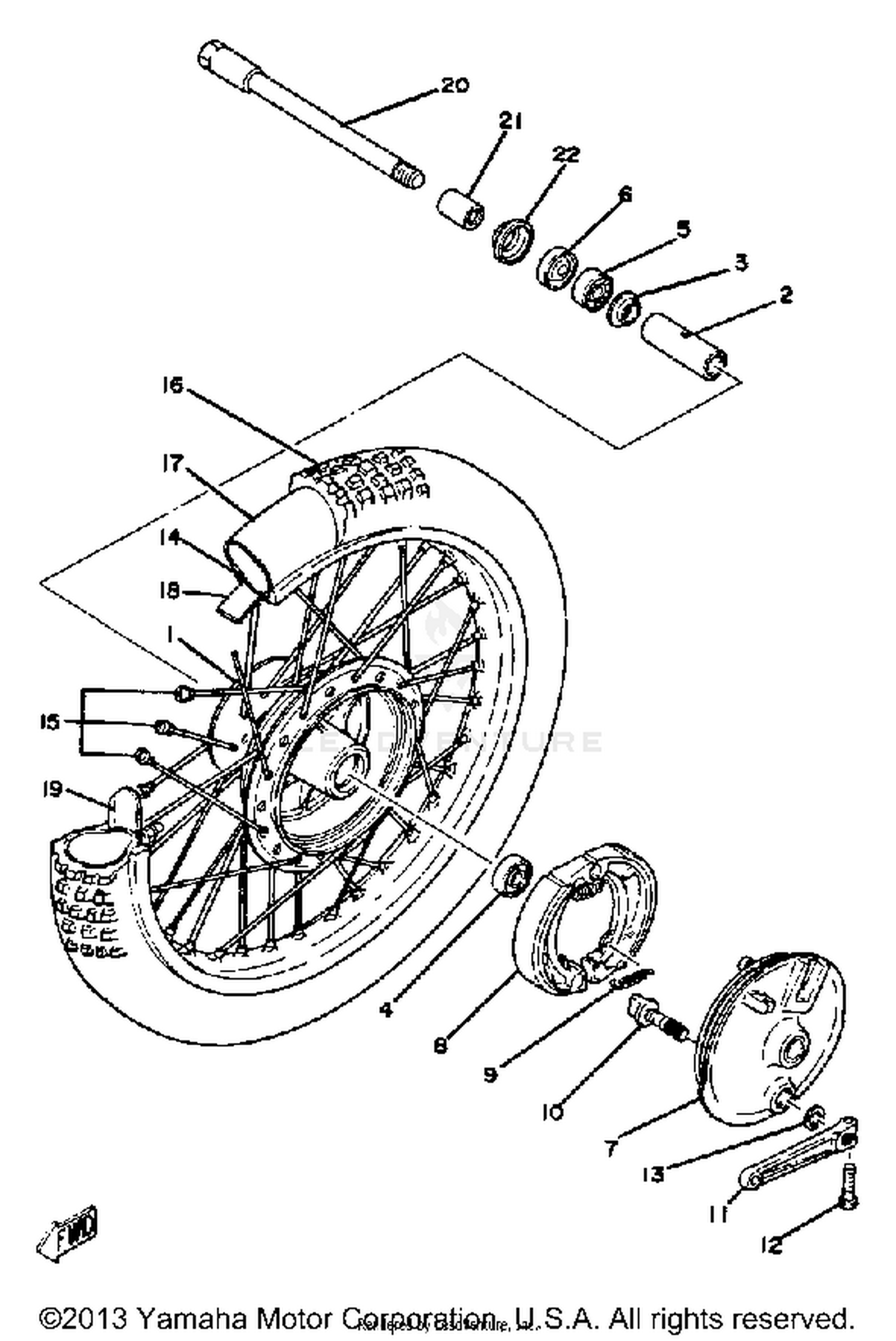

Front Wheel Yz250g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
1K7-25111-10-98
|
$132.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-15116-00
|
$13.99 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93102-20009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE SHOE PLT ASSEMBLY (1W1-25
1W1-25016-11-98
|
$285.99 | ||
|
Unavailable |
|||
|
#8
BRAKE SHOE KIT
322-W2535-00-00
Superseded by 322-W253A-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT
24X-25151-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#11
LEVER, CAMSHAFT 1
322-25155-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#12
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#14
RIM 1.60X21
94416-21234-00
|
$225.99 | ||
|
Unavailable |
|||
|
#15
SPOKE SET, FRONT
2W6-25104-02-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BS 300X21 M21
94130-21554-00
|
$43.53 | ||
|
Unavailable |
|||
|
#17
TUBE (MCS 2.75/3.00-21 TR6)
94227-21123-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, RIM (1.60-21)
94330-21084-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER, BEAD
5X2-25394-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
AXLE, WHEEL
3R4-25181-01-00
|
$61.99 | ||
|
Unavailable |
|||
|
#21
COLLAR
90387-152J3-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, HUB DUST
322-25118-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
