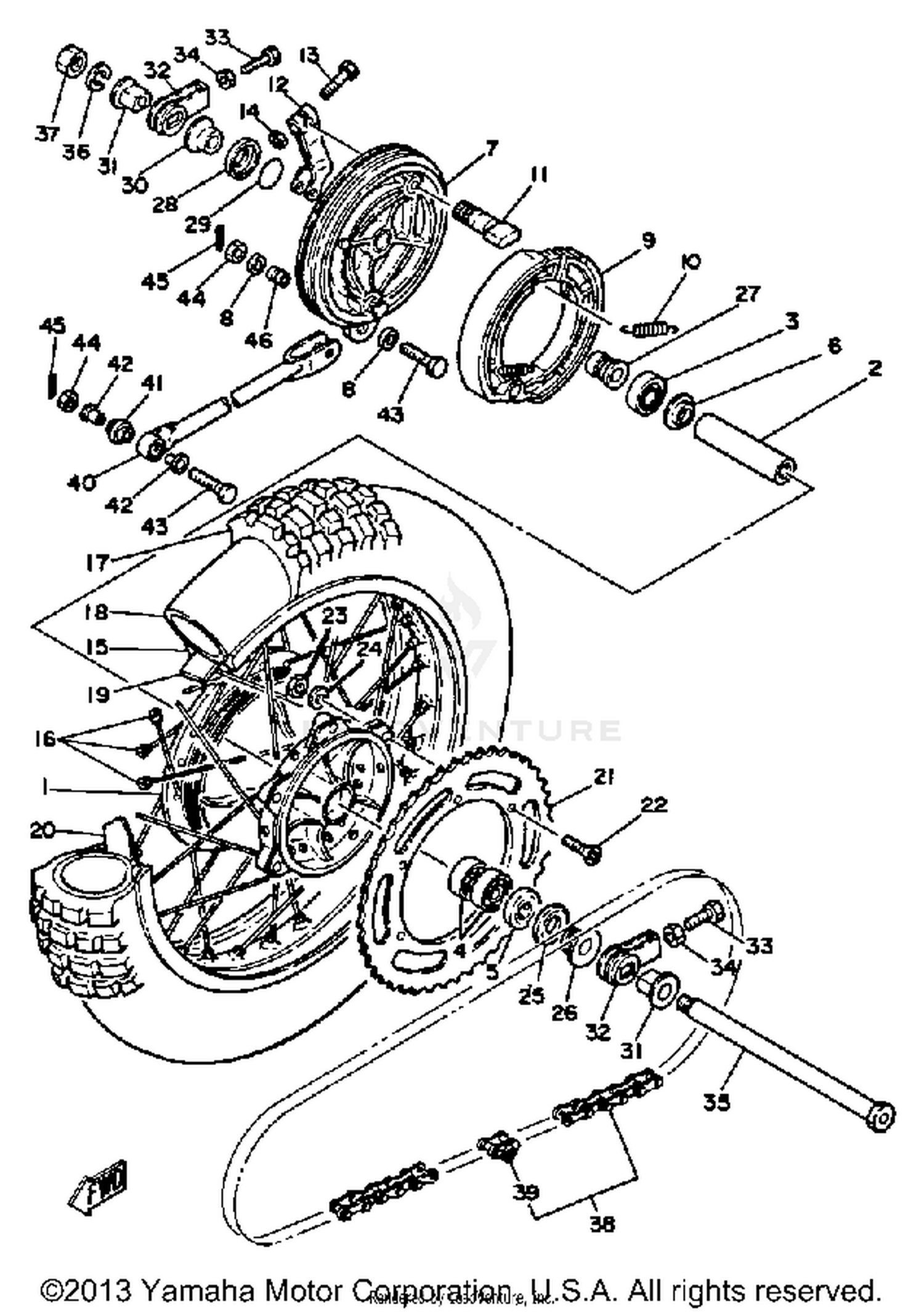

Rear Wheel Yz250g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR (3R4-25311-00-98)
3R4-25311-01-98
|
$223.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
3R4-25317-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#5
OIL SEAL
93102-25044-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLANGE, SPACER
146-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE BRAKE SHOE
3R4-25321-01-98
|
$138.99 | ||
|
Unavailable |
|||
|
#8
OIL SEAL
93104-11056-00
Superseded by 93104-12003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#10
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
401-25351-00-00
Superseded by 26A-25351-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#12
LEVER, CAMSHAFT (2X3-25355-00)
2X3-25355-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#13
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM 2.15X18
94421-18235-00
|
$110.99 | ||
|
Unavailable |
|||
|
#16
SPOKE SET, REAR
3R4-25304-00-00
|
$43.24 | ||
|
Unavailable |
|||
|
#17
BS 510X18 MX M20
94151-18553-00
|
$62.84 | ||
|
Unavailable |
|||
|
#18
TUBE
94251-18150-00
|
$14.05 | ||
|
Unavailable |
|||
|
#19
BAND, RIM (2.50-18)
94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, BEAD
1T1-25394-01-00
|
$83.99 | ||
|
Unavailable |
|||
|
#21
SPROCKET, DRIVEN 46T
3R4-25446-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 48T
3R4-25448-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 50T
3R4-25450-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX SKT HEAD
90109-08552-00
Superseded by 90110-08038-00
|
$4.05 | ||
|
Unavailable |
|||
|
#23
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, HUB DUST
3R4-25367-00-00
|
$4.17 | ||
|
Unavailable |
|||
|
#26
COLLAR
90387-17650-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
COLLAR
90387-17700-00
|
$5.44 | ||
|
Unavailable |
|||
|
#28
COVER, PLATE
275-25327-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
O-RING
93210-31114-00
Superseded by 93210-31MJ5-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-17777-00
|
$8.35 | ||
|
Unavailable |
|||
|
#31
BUSH, SOLID
90381-17027-00
|
$7.99 | ||
|
Unavailable |
|||
|
#32
PULLER, CHAIN 1
2K8-25388-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#33
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
AXLE, WHEEL (3R4-25381-00)
3R4-25381-01-00
|
$71.99 | ||
|
Unavailable |
|||
|
#36
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, HEXAGON
90170-16177-00
|
$9.99 | ||
|
Unavailable |
|||
|
#38
520 DS 106L
94585-20106-00
|
$47.04 | ||
|
Unavailable |
|||
|
#39
JOINT,CHAIN (DID 520DM-RJ)
94685-20001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAR, TENSION
3R4-25371-00-00
|
$19.92 | ||
|
Unavailable |
|||
|
#41
BEARING, SPECIAL
93399-99906-00
|
$36.99 | ||
|
Unavailable |
|||
|
#42
COLLAR
90387-080A8-00
|
$4.17 | ||
|
Unavailable |
|||
|
#43
BOLT, WITH HOLE
90102-08034-00
|
$3.35 | ||
|
Unavailable |
|||
|
#44
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
COLLAR
90387-08699-00
|
$5.49 | ||
|
Unavailable |
|||
