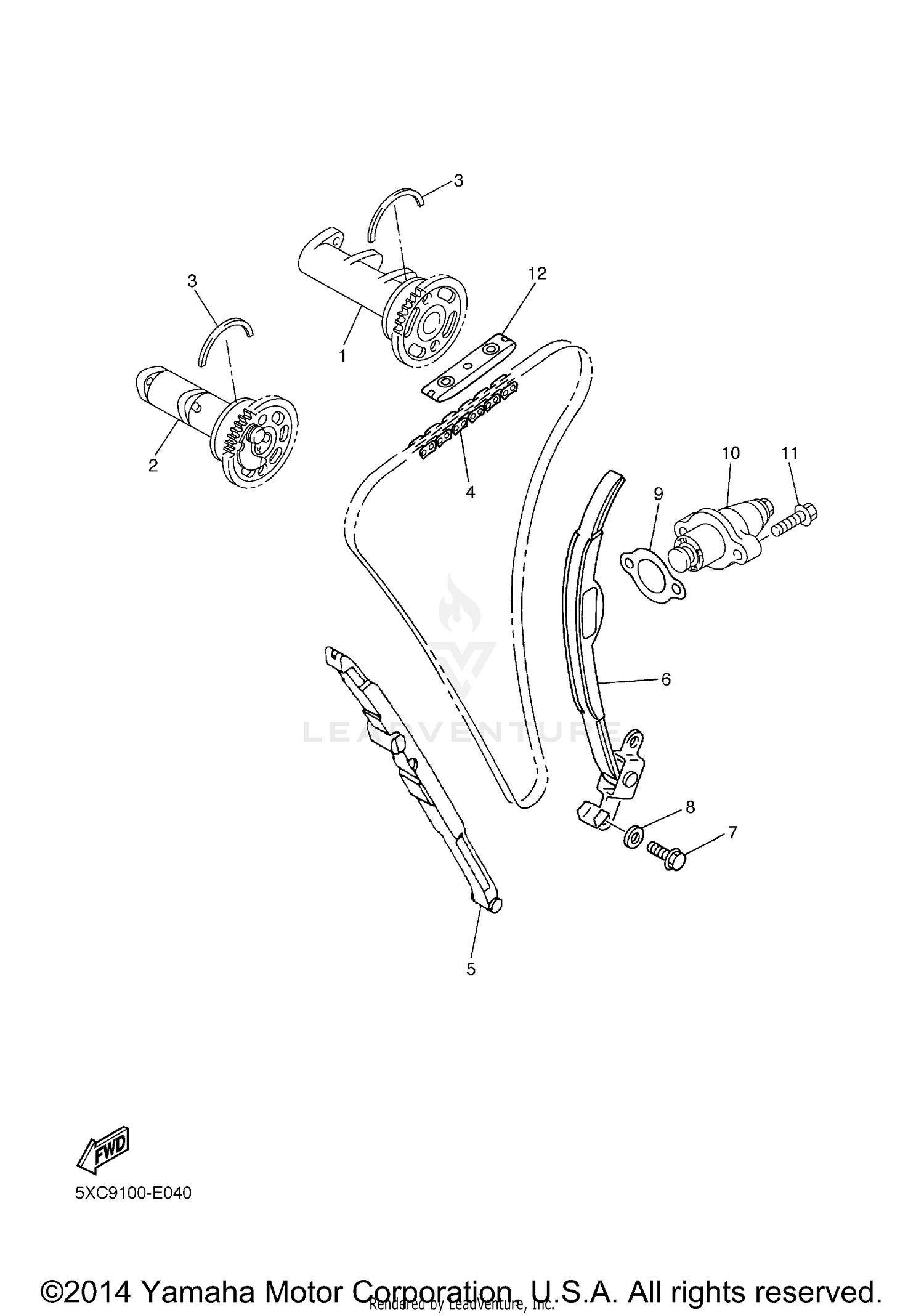

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
5UL-12170-10-00
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY 2
5UL-12180-10-00
|
$382.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-41178-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN
94591-53114-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, CHAIN 1
5NL-12251-10-00
Superseded by 5NL-12251-11-00
|
$34.99 | ||
|
Unavailable |
|||
|
#6
DAMPER, CHAIN 2
5NL-12252-00-00
Superseded by 5NL-12252-01-00
|
$79.99 | ||
|
Unavailable |
|||
|
#7
BOLT
97027-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
TENSIONER ASSY CAM CHAIN
5TA-12210-20-00
Superseded by 5TA-12210-21-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95022-06025-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
