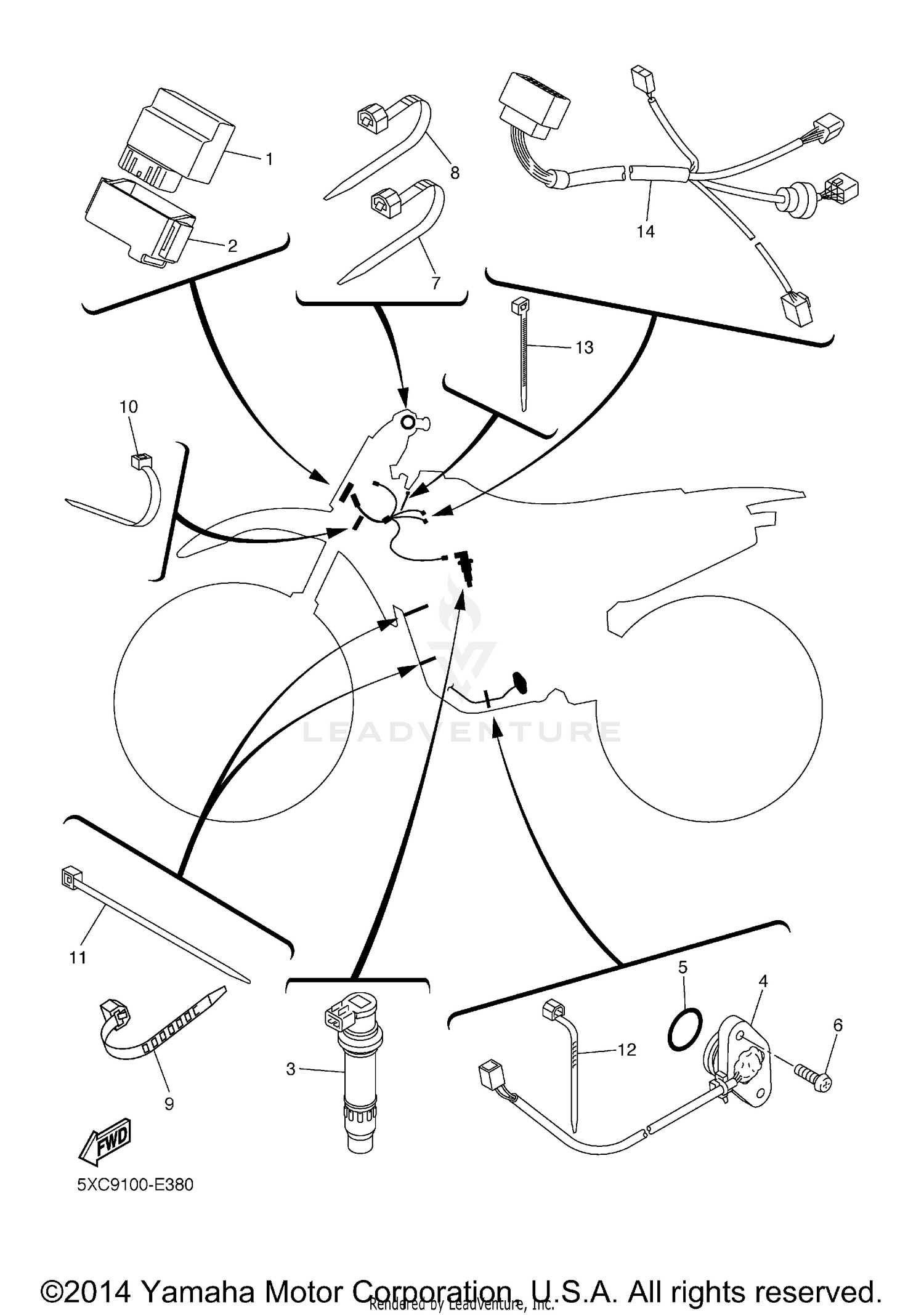

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
5XC-85540-90-00
|
$505.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
1C3-85546-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
5UL-82310-10-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEUTRAL SWITCH ASSY
5XC-82540-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-21276-00
Superseded by 93210-21001-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, BIND
90154-05026-00
Superseded by 98907-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-13077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#10
CLAMP 1
5Y9-12491-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP 1
5Y9-12491-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Unavailable |
|||
|
#14
WIRE, SUB LEAD
5XC-82509-00-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
