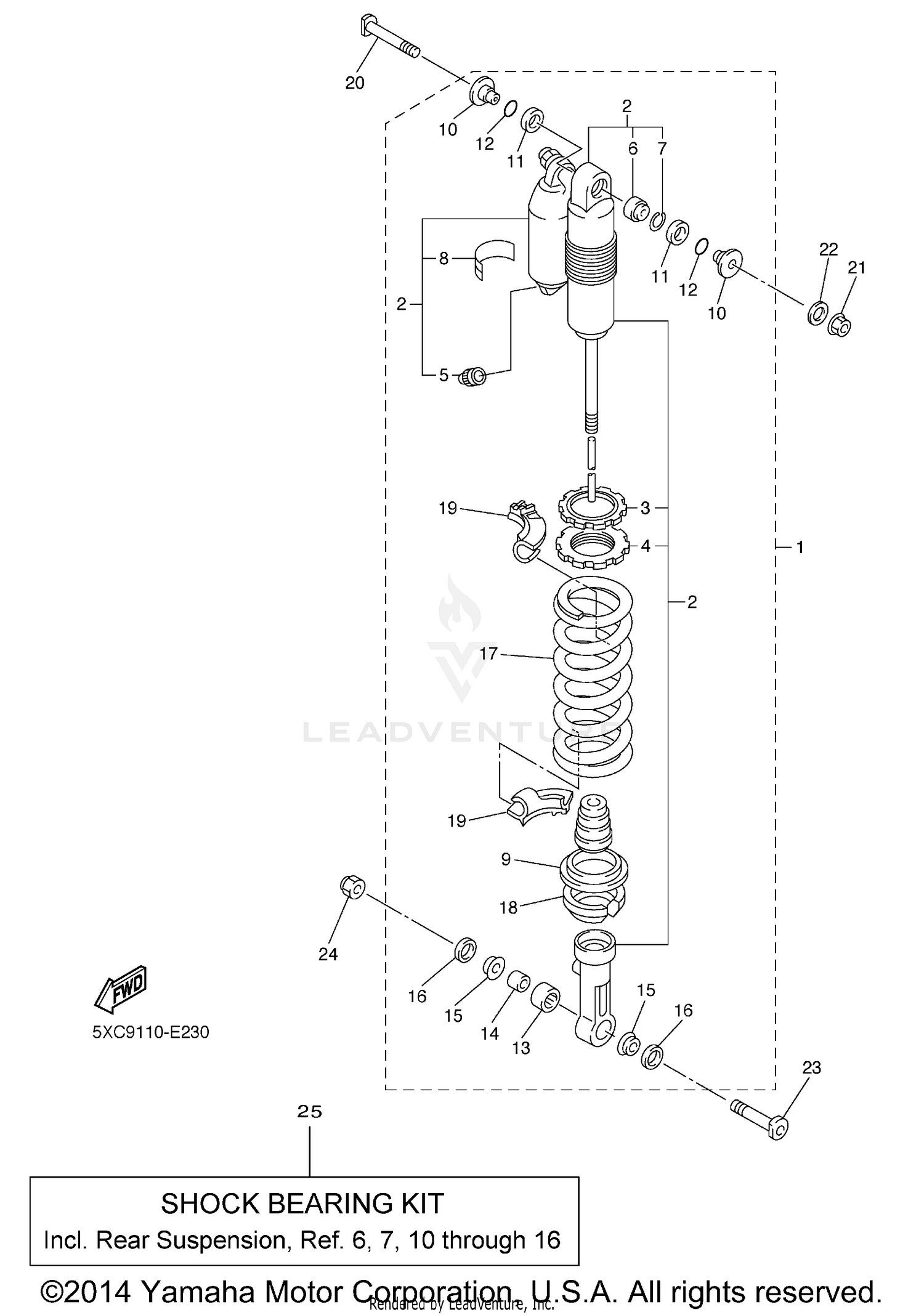

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
5XC-22200-A0-00
|
$912.41 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB ASSY
5XC-22201-A0-00
|
$858.68 | ||
|
Unavailable |
|||
|
#3
GUIDE, SPRING 3
3SP-22234-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING UPPER
3SP-22213-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, AIR VALVE
509-23184-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, SHOCK ABSORBER LOWE
4JX-22226-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
5DH-23183-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, WARNING
4AA-22259-80-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, SPRING 2
5MV-22224-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, DISTANCE
1C3-22253-50-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DUST
3JE-22475-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, RING
4EW-22474-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
5UN-22176-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH
5MV-22184-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, DISTANCE
5MV-22253-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, DUST
5NY-22475-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING (K=50N/MM)
1C3-22212-30-00
|
$408.99 | ||
|
Unavailable |
|||
|
#18
GUIDE, SPRING 1
1C3-22214-50-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING SEAT
1C3-22565-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT 2
5XE-22242-00-00
Superseded by 5XE-22242-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT 1
5NY-22241-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHOCK BEARING KIT
1C3-W002G-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
