2006 Yamaha YZ 250F Fender OEM Parts

Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+

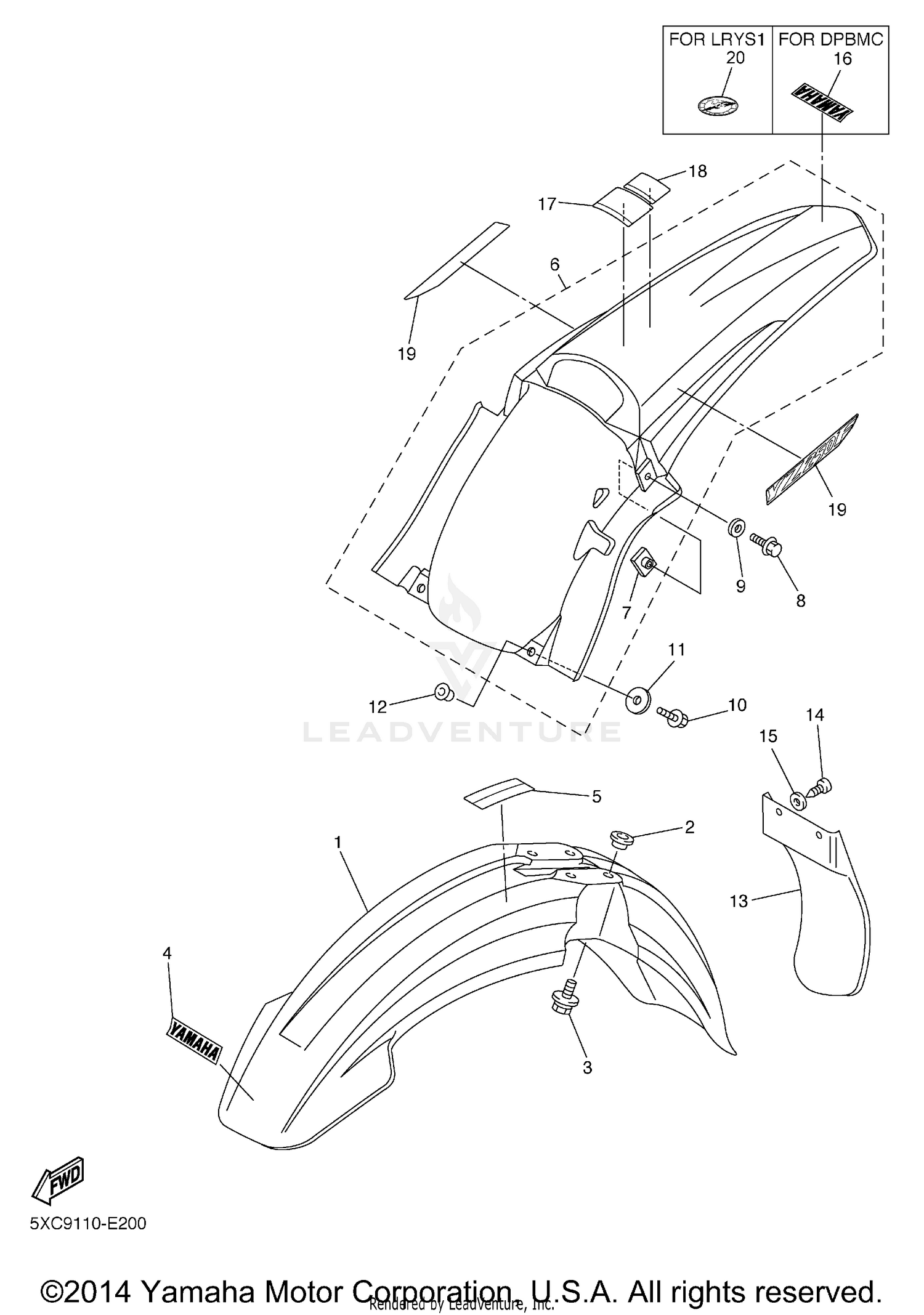

Fender Diagram

Item MSRP Qty
#1 FENDER, FRONT
5XC-21511-D0-00
$43.99
Available to order.
Add to View Price
# FENDER, FRONT
1C3-21511-50-00
Superseded by 1C3-21511-51-00
$30.99
Available to order.
Add to View Price
#2 COLLAR
90387-06090-00
$7.49
Available to order.
Add to View Price
#3 BOLT, WITH WASHER
90119-06096-00
$3.75
Available to order.
Add to View Price
#4 EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
$13.99
Available to order.
Add to View Price
# EMBLEM, YAMAHA
4ES-2153E-20-00
Superseded by 4ES-2153E-21-00
$3.20
Available to order.
Add to View Price
#5 LABEL, CAUTION
3FB-2415E-01-00
Superseded by 3FB-2415E-02-00
$4.65
Available to order.
Add to View Price
#6 REAR FENDER COMP.
5XC-21610-D0-00
$53.99
Available to order.
Add to View Price
# REAR FENDER COMP.
5XC-21610-90-00
$37.99
Available to order.
Add to View Price
#7 NUT, REAR FENDER
5XE-21635-10-00
$12.99
Available to order.
Add to View Price
#8 BOLT, FLANGE
90105-06090-00
$7.49
Available to order.
Add to View Price
#9 WASHER, PLATE
90201-06032-00
$7.49
Available to order.
Add to View Price
#10 BOLT, FLANGE
95027-06020-00
$5.49
Available to order.
Add to View Price
#11 WASHER, PLATE
90201-06571-00
$8.49
Available to order.
Add to View Price
#12 COLLAR
90387-06009-00
$9.49
Available to order.
Add to View Price
#13 GUARD, FLAP
5TA-21642-00-00
$37.99
Available to order.
Add to View Price
#14 SCREW, TAPPING
97707-60016-00
$1.60
Available to order.
Add to View Price
#15 WASHER, PLATE
90201-06084-00
$3.55
Available to order.
Add to View Price
#16 EMBLEM, YAMAHA
5XC-2153E-00-00
Superseded by 5XC-2153E-01-00
$2.05
Unavailable
#17 LABEL, CAUTION
5PA-2118K-00-00
$7.49
Available to order.
Add to View Price
#18 LABEL 5
3XJ-2151H-A1-00
$7.49
Available to order.
Add to View Price
#19 EMBLEM 1
5XC-2163G-20-00
$6.49
Available to order.
Add to View Price
# EMBLEM 1
5XC-2163G-10-00
$10.49
Unavailable
#20 EMBLEM, 3D
5XC-2164B-00-00
$24.99
Unavailable
