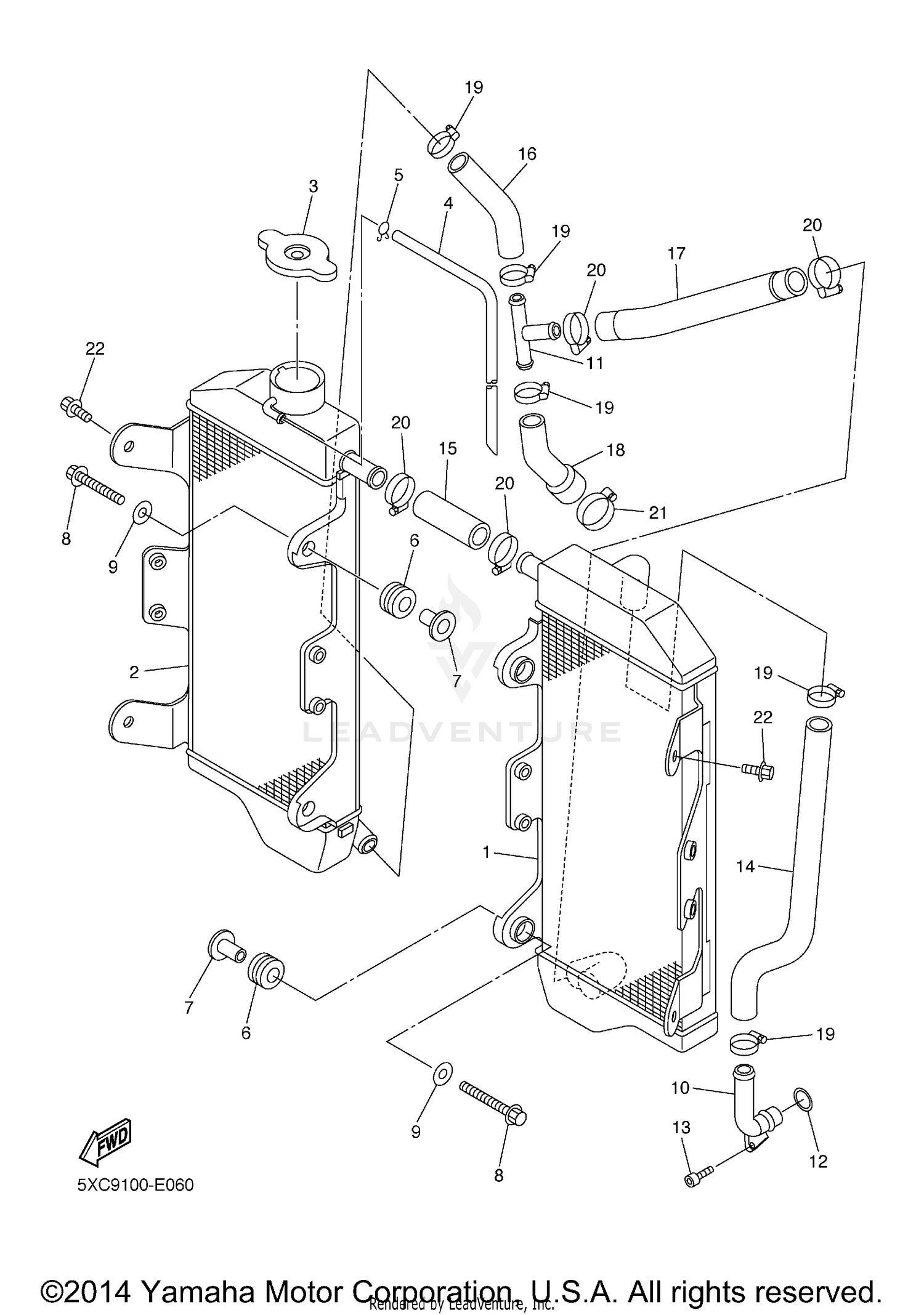

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
5XC-1240A-90-00
|
$418.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR ASSY
5XC-12461-90-00
|
$436.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FLEXIBLE VINYL
91A20-05065-00
Superseded by 91A20-05080-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-15528-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06065-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE 1
5XC-12481-90-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE 2
5XC-12482-90-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-15414-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91312-06012-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE 1
5XC-12576-90-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE 2
1C3-12482-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE 3
5XC-12578-90-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE 4
5XC-12579-90-00
Superseded by 5XC-12579-91-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE 5
5XC-1244H-90-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90450-25001-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE CLAMP ASSY
90450-22001-00
Superseded by 90450-18M09-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE CLAMP ASSY
90450-32003-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
