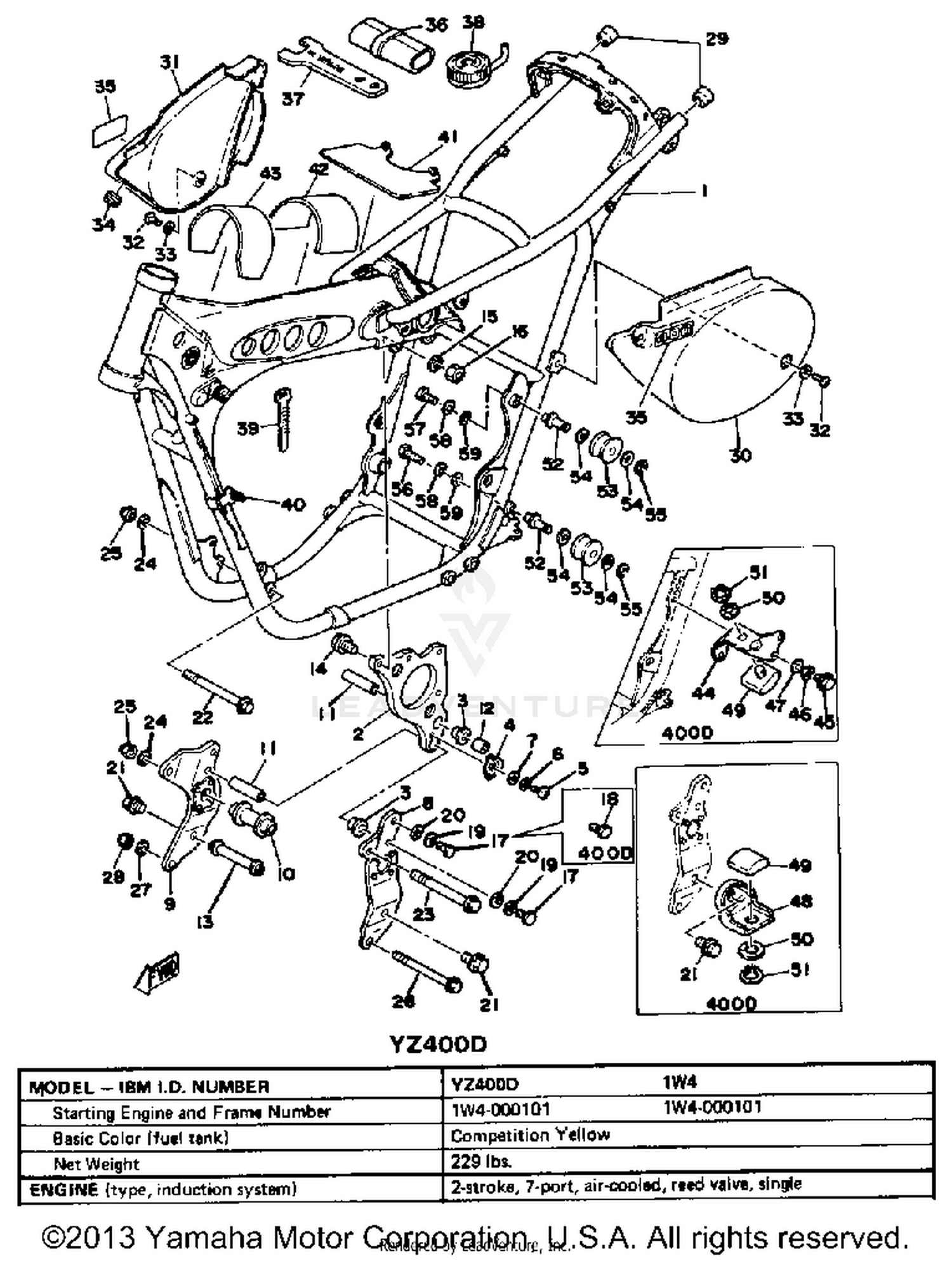

Frame Side Cover Yz400d E Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
1W4-21110-00-33
|
$372.99 | ||
|
Unavailable |
|||
|
#
FRAME
2K8-21110-00-33
|
$552.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, REAR UPR 1
1W4-21425-00-00
|
$72.47 | ||
|
Unavailable |
|||
|
#3
BUSH, SOLID
90381-14026-00
|
$7.99 | ||
|
Unavailable |
|||
|
#4
PLATE, PATCH
1W4-21456-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, REAR LWR 1
1W4-21427-00-00
|
$65.32 | ||
|
Unavailable |
|||
|
#9
BRACKET, REAR LWR 2
1W4-21428-00-00
|
$53.34 | ||
|
Unavailable |
|||
|
#10
SPACER
1W4-21459-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#11
BOSS, ENGINE MOUNT
1W4-21414-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#12
COLLAR
90387-14625-00
|
$1.49 | ||
|
Unavailable |
|||
|
#13
BOSS, ENGINE MOUNT
1W4-21424-00-00
|
$13.78 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
95811-08030-00
Superseded by 95817-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97001-08025-00
Superseded by 97017-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95821-08115-00
Superseded by 95817-08115-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95811-08110-00
Superseded by 95814-08110-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Unavailable |
|||
|
#25
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE
90105-10050-00
Superseded by 90105-10105-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG
90339-13005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, SIDE 1
1W4-21711-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#31
COVER, SIDE 2
1W4-21721-00-00
|
$85.99 | ||
|
Unavailable |
|||
|
#32
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
EMBLEM 6
1W4-21786-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#36
TOOL KIT
1W4-28100-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#37
SPANNER, SPECIAL
10V-28135-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#38
GAUGE, AIR
1W1-2811A-00-00
|
$43.19 | ||
|
Unavailable |
|||
|
#39
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#41
DAMPER, LOCATING 1
1W1-24181-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#42
DAMPER, LOCATING 3
1W1-24183-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#43
DAMPER, LOCATING 3
1W4-24183-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#44
STAY, CHAIN CASE 3
1W4-22133-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#45
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#48
PLATE
1W4-21329-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#49
GUIDE, CHAIN
1W4-22187-00-00
|
$13.48 | ||
|
Unavailable |
|||
|
#50
WASHER, WAVE
90206-15023-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#51
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
SHAFT
2K6-2148A-01-00
|
$10.49 | ||
|
Unavailable |
|||
|
#53
TENSIONER
2K6-22178-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
WASHER, PLATE
90201-13202-00
Superseded by 90201-13013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Unavailable |
|||
|
#58
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#59
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Unavailable |
|||
