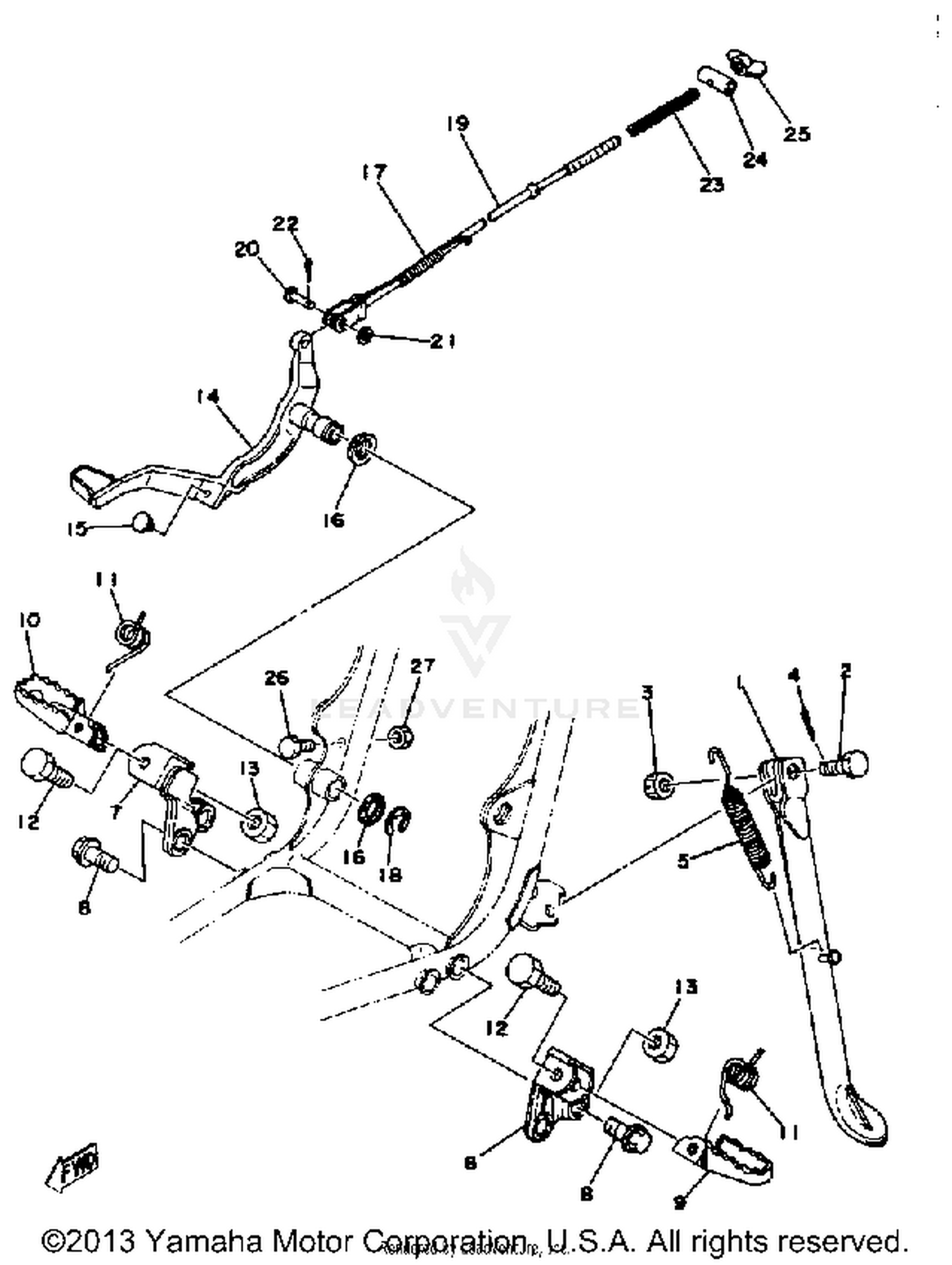

Stand Footrest Brake Pedal Yz400d E Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
1W4-27311-00-00
|
$39.46 | ||
|
Unavailable |
|||
|
#
STAND, SIDE
2K7-27311-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#2
BOLT
90102-10006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90507-29008-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, FOOTREST 1
1W4-27412-10-00
|
$15.49 | ||
|
Unavailable |
|||
|
#7
BRACKET, FOOTREST 2
1W4-27422-10-00
|
$15.49 | ||
|
Unavailable |
|||
|
#8
BOLT, WASHER BASED
90105-12096-00
|
$3.15 | ||
|
Unavailable |
|||
|
#9
FOOTREST 1
1W4-27411-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#10
FOOTREST 2
1W4-27421-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#11
SPRING, TENSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
UNAVAILABLE IN PRICE BOOK
90101-08424-00
|
|||
|
Unavailable |
|||
|
#13
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PEDAL, BRAKE
1W4-27211-01-00
|
$33.74 | ||
|
Unavailable |
|||
|
#15
GROMMET
90480-15215-00
|
$2.50 | ||
|
Unavailable |
|||
|
#16
COVER, DUST
498-27235-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TENSION
90506-20128-00
|
$5.99 | ||
|
Unavailable |
|||
|
#18
CIRCLIP, E-TYPE
99001-15600-00
|
$2.40 | ||
|
Unavailable |
|||
|
#19
ROD, BRAKE
483-27231-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#20
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#23
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
