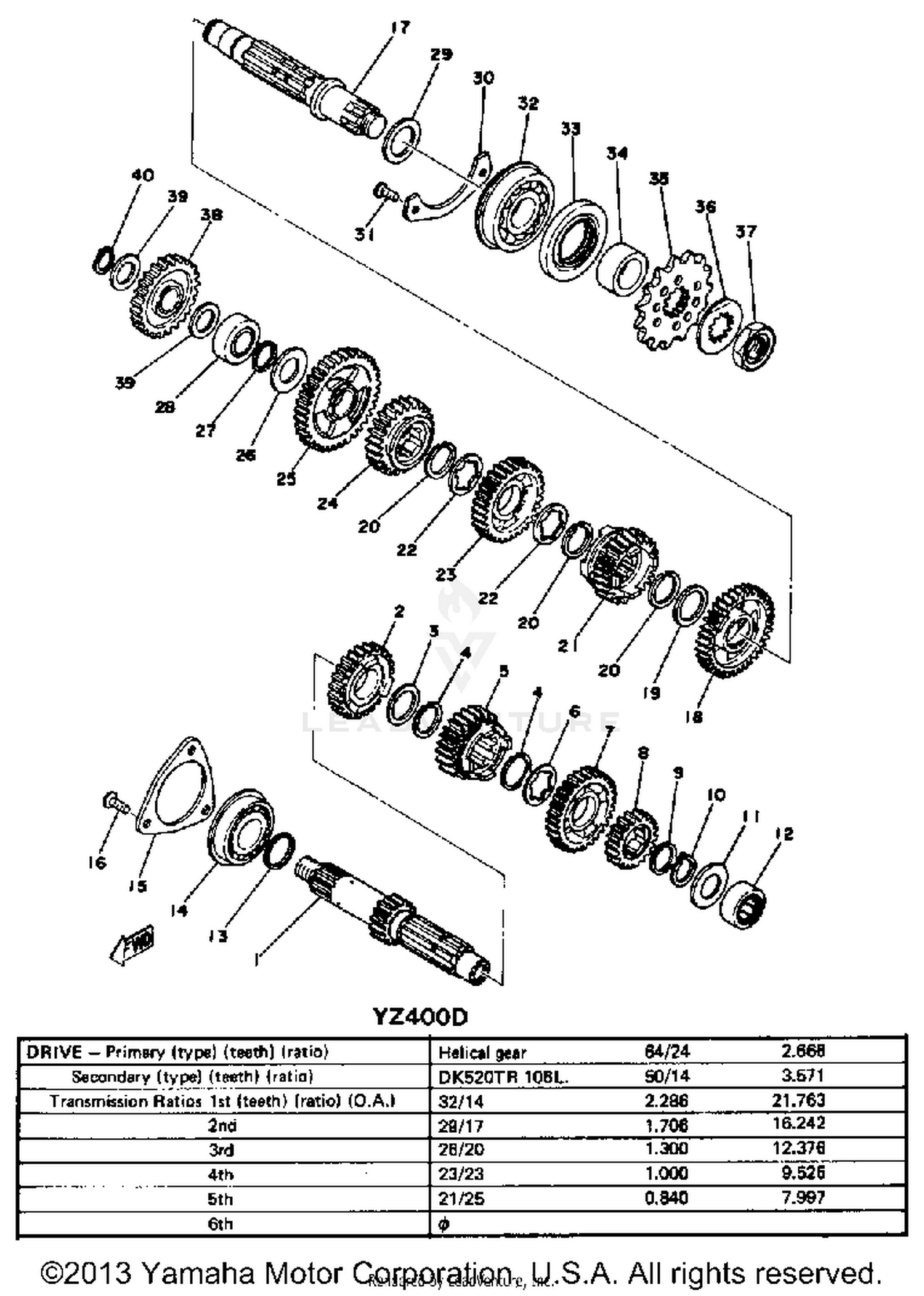

Transmission Yz400d E Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
1N6-17411-00-00
|
$71.59 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION
1M1-17141-01-00
|
$74.26 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
1M1-17131-01-00
|
$57.70 | ||
|
Unavailable |
|||
|
#6
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH PINION
1N6-17151-00-00
|
$41.64 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
1N6-17121-00-00
|
$28.30 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-20613-00
|
$3.90 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CYLINDRICAL
93311-62035-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM 2
168-17428-01-05
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#14
BEARING (93306-20515)
93306-20535-00
|
$20.99 | ||
|
Unavailable |
|||
|
#15
PLATE, BRNG COVER
1W4-15383-00-00
Superseded by 363-15383-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#17
AXLE, DRIVE
1M2-17421-00-00
|
$175.99 | ||
|
Unavailable |
|||
|
#18
GEAR, 2ND WHEEL
1N6-17221-00-00
|
$74.26 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
GEAR, 5TH WHEEL
1N6-17251-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#22
WASHER (T=0.5)
90209-22082-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
GEAR, 3RD WHEEL
1M1-17231-00-00
|
$75.36 | ||
|
Unavailable |
|||
|
#24
GEAR, 4TH WHEEL
1M1-17241-01-00
|
$60.96 | ||
|
Unavailable |
|||
|
#25
GEAR, 1ST WHEEL
1N6-17211-00-00
|
$41.08 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Unavailable |
|||
|
#28
BEARING, CYLINDRICAL
93311-62035-00
|
$52.99 | ||
|
Unavailable |
|||
|
#29
SHIM 2
168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#30
PLATE, BRNG COVER
509-15381-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#31
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#32
BEARING
93306-30517-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL, SD-TYPE
93102-35109-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-25192-00
Superseded by 90387-253M9-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPROCKET,DRIVE 13T
93834-13030-00
Superseded by 93834-13206-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
93834-14051-00
|
$15.65 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVE
93834-15078-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, LOCK
90215-21239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, SPEC'L SHAPE
90179-18020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
GEAR, KICK IDLE
1W4-15651-00-00
|
$23.94 | ||
|
Unavailable |
|||
|
#39
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
