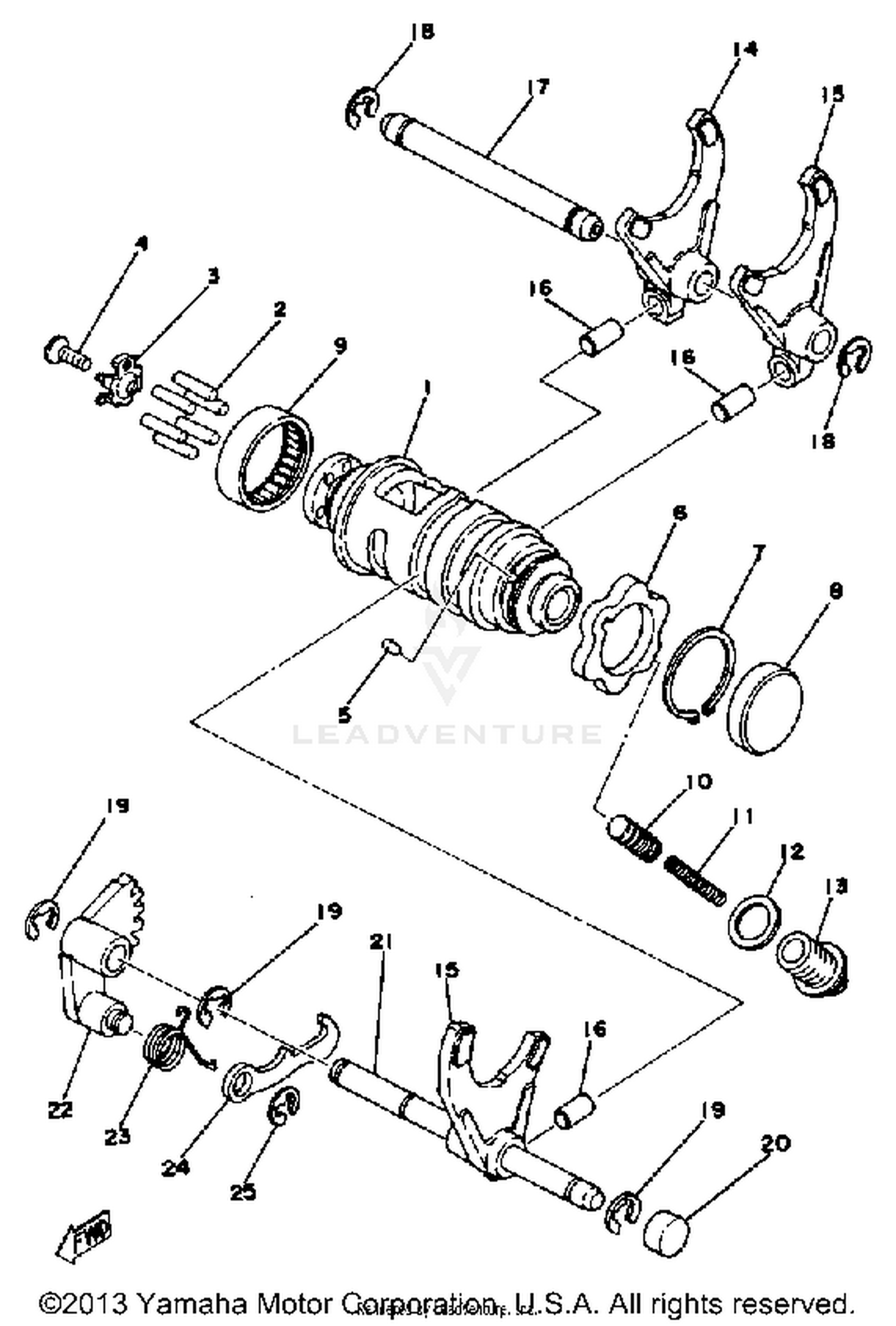

Shifter 1 Yz400d E Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAM, SHIFT
1W4-18541-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
93604-18100-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, SIDE 1
434-18561-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, COUNTERSUNK
98701-05012-00
Superseded by 98707-05012-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
93604-08071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, STOPPER
360-18141-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
99009-30400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG
90338-22030-00
Superseded by 90338-22207-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93315-23208-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOPPER, CAM
353-18547-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#11
SPRING, COMPRESSION
90501-10062-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, DRAIN
137-15353-00-00
Superseded by 4F4-14766-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-14485-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FORK, SHIFT 1
1W4-18511-01-00
|
$63.99 | ||
|
Unavailable |
|||
|
#15
FORK, SHIFT 2
1W4-18512-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#16
PIN, STRAIGHT
90250-08017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAR, SHIF FRK GDE 2
1W4-18535-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#18
CIRCLIP (E) (99001-09600-00)
99001-09600-00
Superseded by 99080-09600-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG
90338-16015-00
Superseded by 90338-16029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAR, SHIFT FORK GUIDE 1
1M1-18531-00-00
|
$11.46 | ||
|
Unavailable |
|||
|
#22
LEVER, SHIFT 2
434-18122-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, TORSION
90508-08334-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
LEVER, SHIFT 3
498-18151-03-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
99080-07600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
