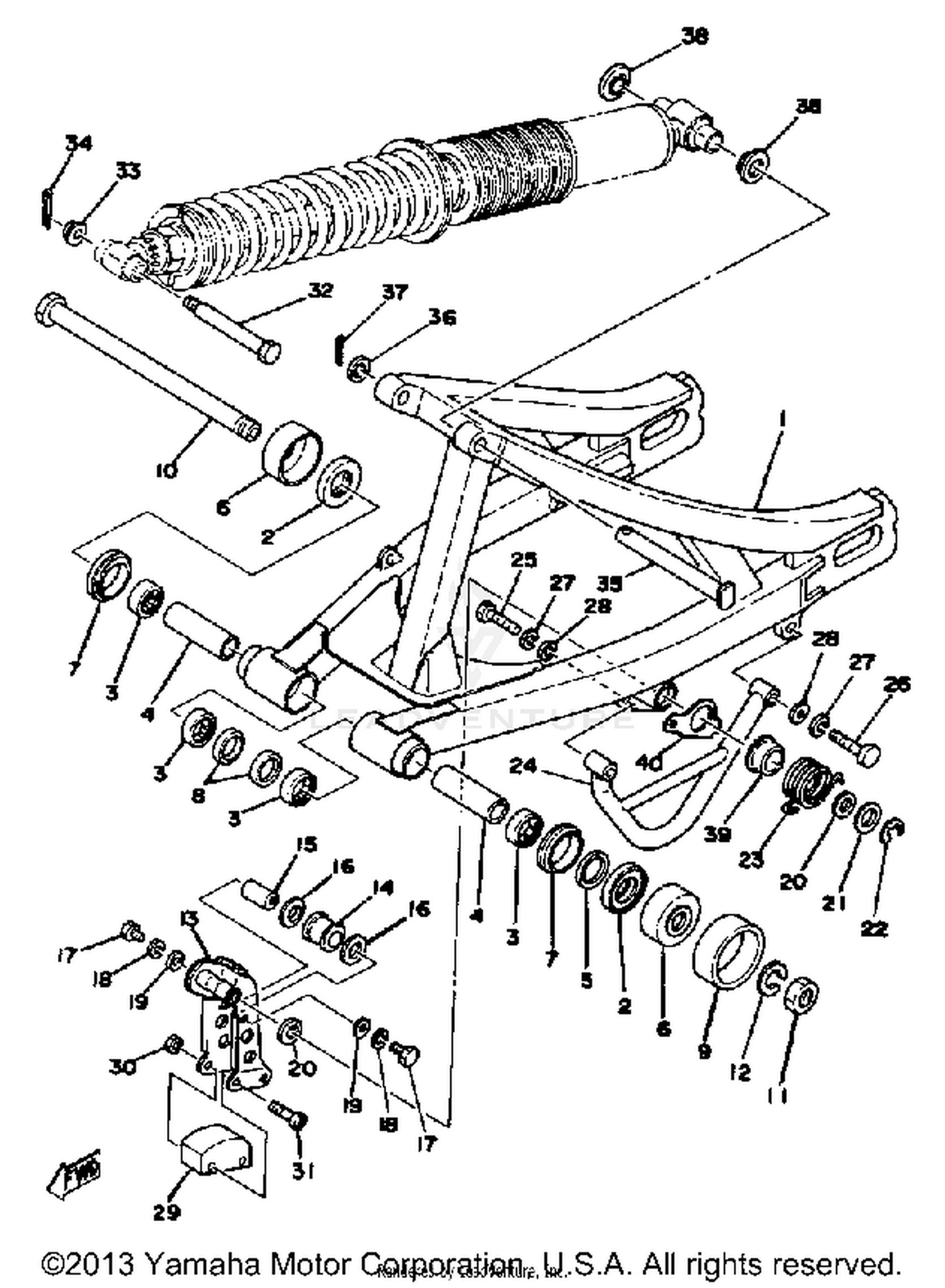

Rear Arm Yz400d E Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1W4-22110-00-33
|
$265.99 | ||
|
Unavailable |
|||
|
#
REAR ARM
2K8-22110-00-00
|
$510.99 | ||
|
Unavailable |
|||
|
#2
BEARING, FLAT #42
93342-22205-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CYLINDER.#17
93317-22214-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, SOLID
90380-16056-00
|
$26.99 | ||
|
Unavailable |
|||
|
#5
UNAVAILABLE IN PRICE BOOK
648-45533-00-33
|
|||
|
Unavailable |
|||
|
#6
COVER, THRUST 2
2K8-22129-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (35-41-8)
93108-35004-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL, SDO-TYPE
93109-22018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, GUARD
431-22151-03-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, PIVOT
1W4-22141-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#11
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, TENSIONER
1W4-22179-01-00
|
$17.80 | ||
|
Unavailable |
|||
|
#
ARM, TENSIONER
2K8-22179-00-00
|
$32.14 | ||
|
Unavailable |
|||
|
#14
TENSIONER
1W1-22178-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#15
NUT, SPEC''L SHAPE
90179-06239-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-14411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#
OIL SEAL
93104-14044-00
Superseded by 93109-14021-00
|
$12.49 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-14411-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, TORSION (90508-32347)
90508-35365-00
|
$3.80 | ||
|
Unavailable |
|||
|
#
SPRING, TORSION (90508-32347)
90508-35366-00
|
$6.49 | ||
|
Unavailable |
|||
|
#24
GUARD, CHAIN
2K8-22153-00-00
|
$51.33 | ||
|
Unavailable |
|||
|
#
GUARD, CHAIN
1W4-22153-00-00
|
$61.68 | ||
|
Unavailable |
|||
|
#25
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
TENSIONER (2N0-22178-00-00)
ACC-11130-00-25
|
$9.45 | ||
|
Unavailable |
|||
|
#30
NUT
95311-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-08480-00
|
$9.55 | ||
|
Unavailable |
|||
|
#33
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT, SPEC''L SHAPE
90179-08243-00
|
$4.70 | ||
|
Unavailable |
|||
|
#34
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, CLEVIS
90240-12060-00
Superseded by 90240-12059-00
|
$9.99 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
90201-122A7-00
Superseded by 90201-12047-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER, THRUST 1
1W1-22128-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
PORTECTOR, CHAIN
2K8-22147-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#40
COVER
2K8-2219X-00-00
|
$6.66 | ||
|
Unavailable |
|||
