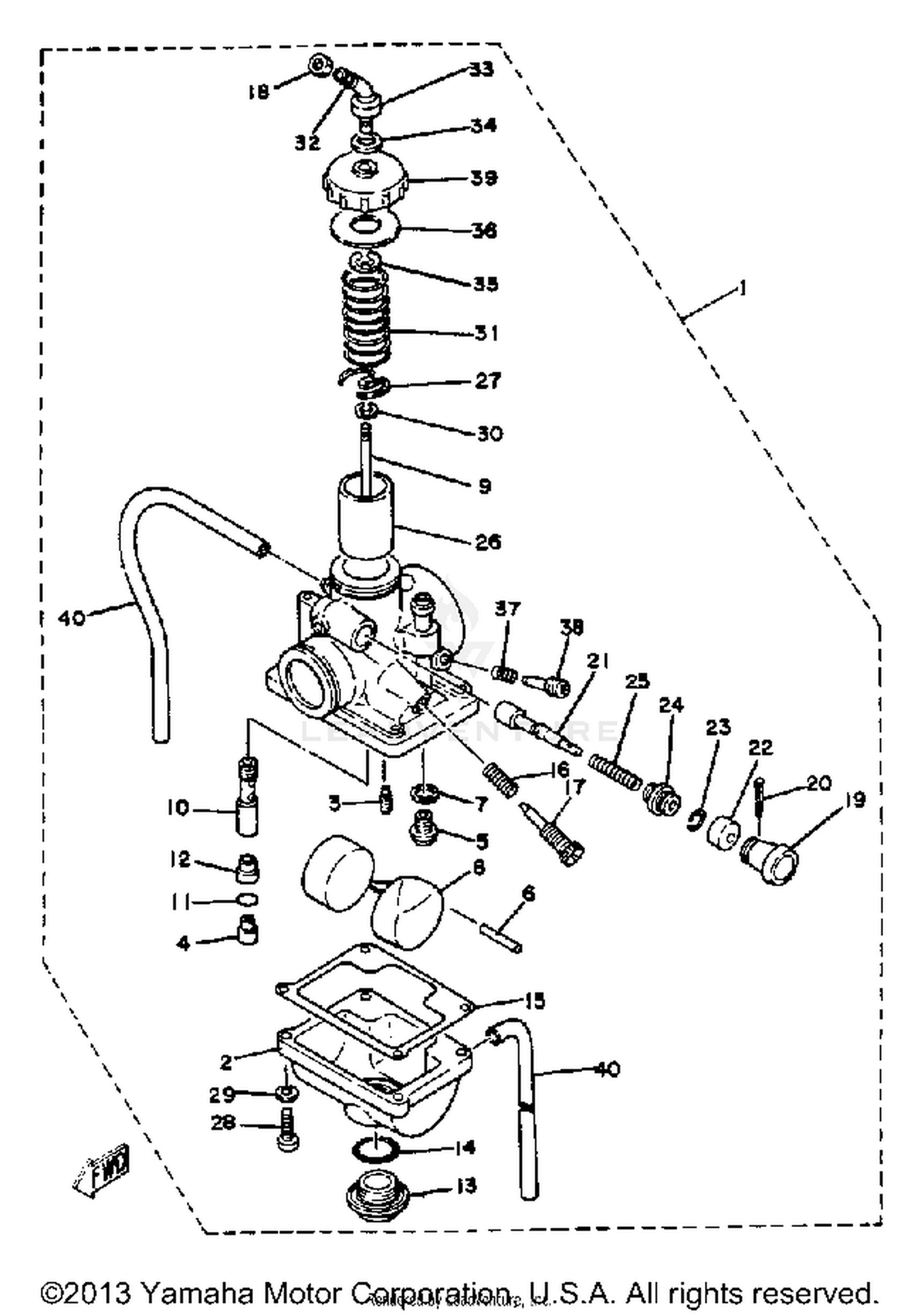

Carburetor-yz60h - J - K Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4V0-14101-00-00
|
$85.06 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 1
5X1-14101-00-00
|
$209.99 | ||
|
Unavailable |
|||
|
#2
BODY, FLOAT CHMBR 1
539-14181-04-00
|
$113.99 | ||
|
Unavailable |
|||
|
#3
JET, PILOT ( 30)
260-14142-30-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (#190)
137-14143-38-A0
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#200)
137-14143-40-A1
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #210 (210)
137-14143-42-A1
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEEDLE VALVE SET
23L-14107-25-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, NEEDLE VALVE
214-14195-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLOAT
314-14185-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NEEDLE
443-14116-06-00
|
$5.24 | ||
|
Unavailable |
|||
|
#
NEEDLE
2N3-14116-04-00
|
$10.41 | ||
|
Unavailable |
|||
|
#10
NOZZLE, MAIN
2F5-14141-34-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER
2N4-14145-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, SCREW
500-14115-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
558-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, FLOAT CHAMBER
304-14184-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, THROTTLE STOP
493-14133-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, THROTTLE
493-14122-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#18
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER
304-14261-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUNGER, STARTER
304-14171-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, PLUNGER CAP
3A3-14173-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#23
CLIP, PLUNGER
353-14138-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP, PLUNGER
152-14174-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, PLUNGER
156-14135-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
VALVE, THROTTLE 1
2X6-14112-20-00
|
$78.21 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
314-14112-20-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
STOPPER, CABLE
246-14132-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, THRTL VALVE
2N4-14131-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CABLE ADJUST SCREW SET
10X-14106-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP
1M1-14169-00-00
Superseded by 3X3-14169-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET
509-14198-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
363-14137-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
GASKET
2A6-14126-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, AIR ADJUSTING
174-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
AIR SCREW SET
10W-14104-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
TOP, MIXING CHAMBER
2A6-14158-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#40
PIPE, AIRVENT
23F-14197-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
