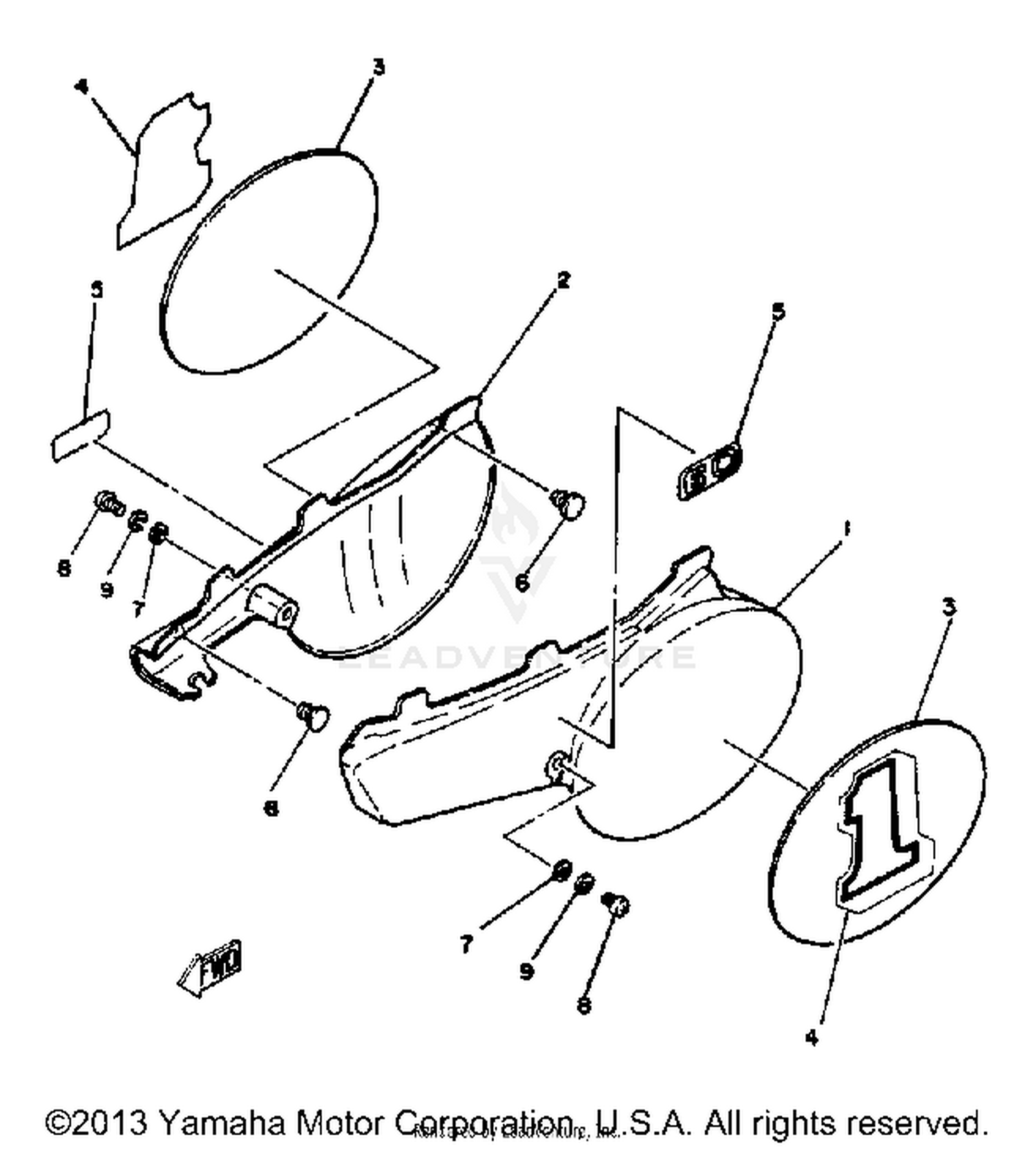

Side Cover - Yz60h Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
3R0-21711-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#2
COVER, SIDE 2
3R0-21721-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 6
3R0-21786-01-00
|
$10.54 | ||
|
Unavailable |
|||
|
#4
EMBLEM 2
3R1-21782-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#5
EMBLEM 1
4V0-21781-00-00
Superseded by 5X1-21781-00-00
|
$2.80 | ||
|
Unavailable |
|||
|
#6
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
