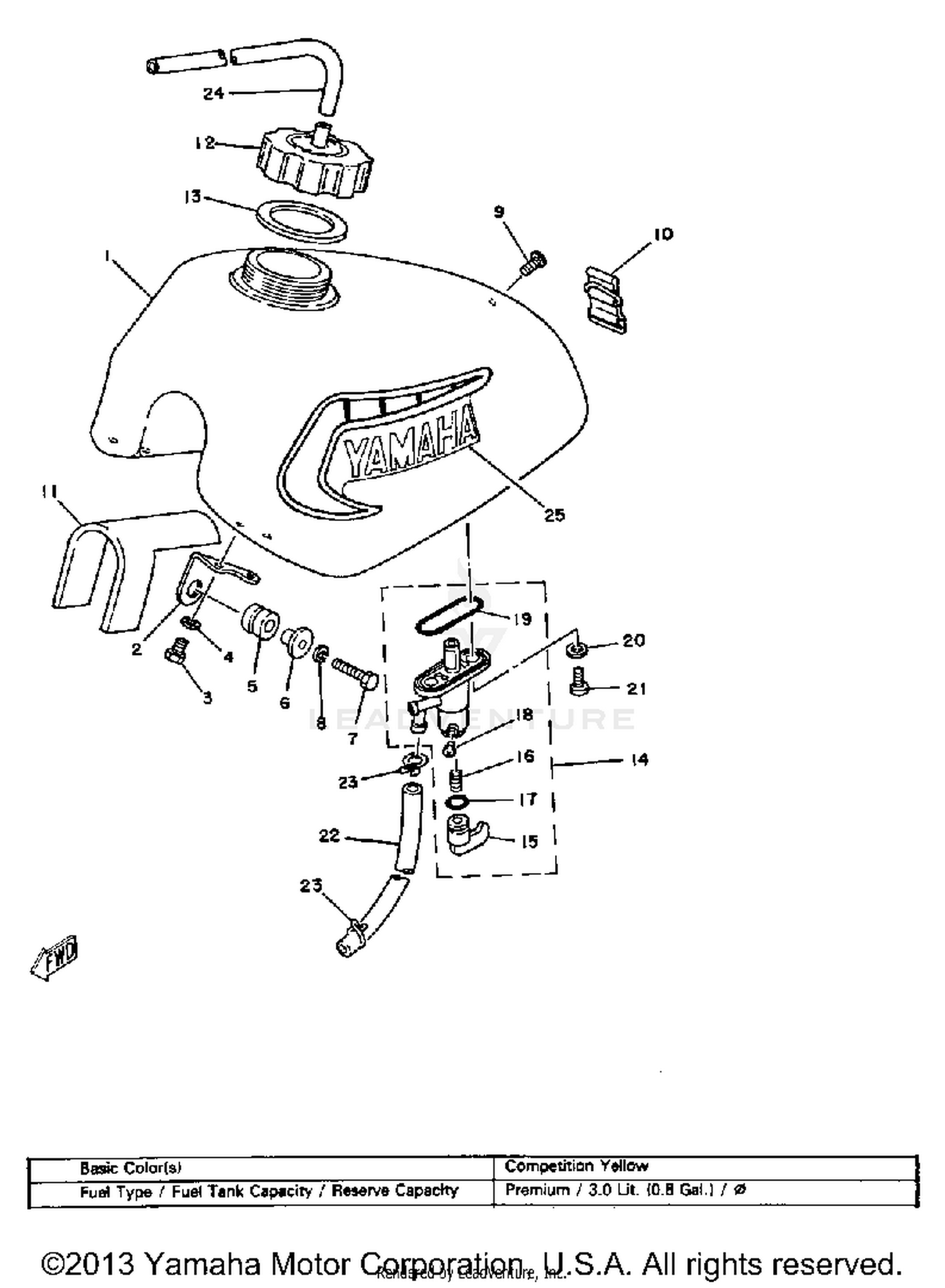

1981 Yamaha YZ 60H FUEL TANK - YZ60H OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
3R0-24110-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#2
HOLDER, DAMPER
3R0-24144-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#3
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-14023-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#9
SCREW, BIND
98903-06014-00
Superseded by 98980-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, TANK FITTING 1
59V-24173-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 1
3R0-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY, CAP
1W1-24611-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, CAP
1W1-24612-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUEL COCK ASSEMBLY 1
2K5-24500-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, COCK
1A0-24524-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#16
SPRING
1A0-24529-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
GASKET
1A0-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, LEVER FITTING
619-24535-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#19
GASKET
214-24512-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90202-05187-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE
90445-11290-00
Superseded by 90445-113E2-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE 5
90445-09252-00
Superseded by 5RB-24315-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GRAPHIC SET
4V0-24240-09-00
|
$18.66 | ||
|
Unavailable |
|||
