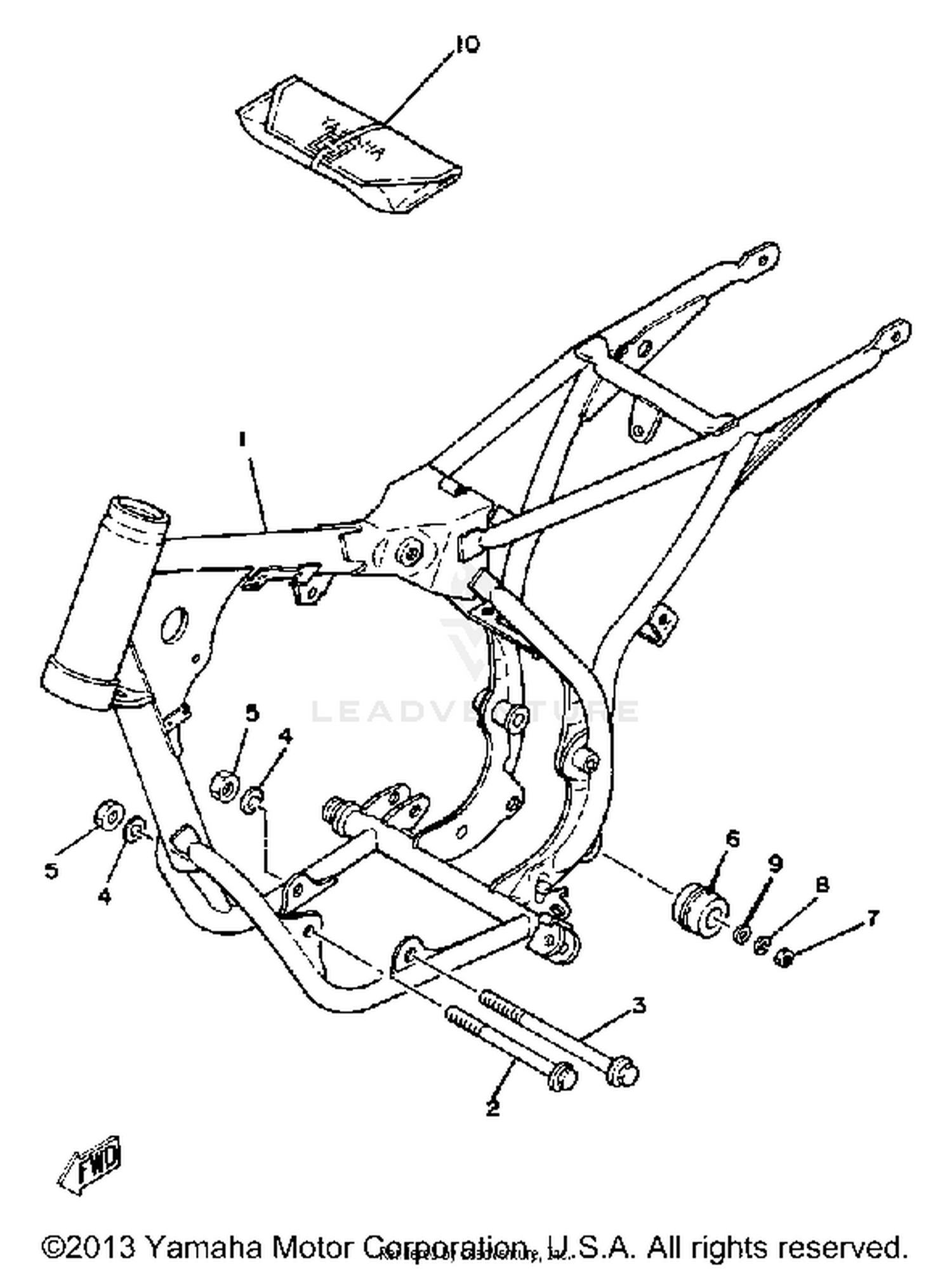

Frame - Tool-yz60h Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
4V0-21110-00-33
|
$231.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
95811-08120-00
Superseded by 95817-08120-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95821-08140-00
|
$1.69 | ||
|
Unavailable |
|||
|
#4
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER
2X6-22178-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#7
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
TOOL KIT
5X2-28100-00-00
|
$64.99 | ||
|
Unavailable |
|||
